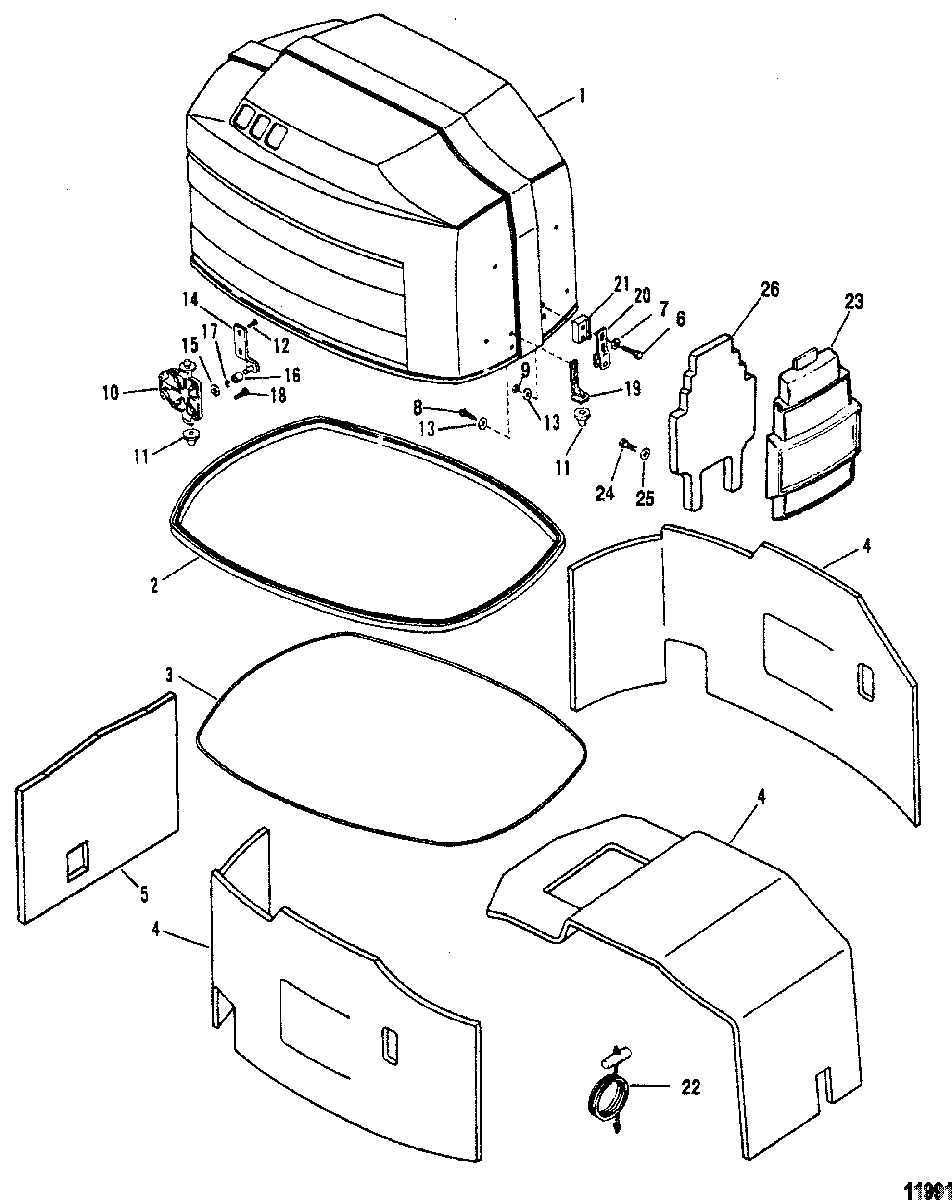

Top Cowl And Front Shield для Mariner - V-175 (SKI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
12196-9742T92 TOP COWL ASSEMBLY, Black
(Long)TOP COWL ASSEMBLY, Black
(Long) -
12196-9743T10 TOP COWL ASSEMBLY, Gray
(Long)TOP COWL ASSEMBLY, Gray
(Long) -
12196-9743T10 TOP COWL ASSEMBLY, Silver
(Long)TOP COWL ASSEMBLY, Silver
(Long) -
12196-9742T88 TOP COWL ASSEMBLY, Black
(X-Long)TOP COWL ASSEMBLY, Black
(X-Long) -
12196-9743T11 TOP COWL ASSEMBLY, Gray
(X-Long)TOP COWL ASSEMBLY, Gray
(X-Long) -
12196-9743T11 TOP COWL ASSEMBLY, Silver
(X-Long)TOP COWL ASSEMBLY, Silver
(X-Long) -
12196-9743A8 TOP COWL ASSEMBLY
(Tracker)TOP COWL ASSEMBLY
(Tracker) -
2812784 SEALSEAL
-
3815478 SEALSEAL
-
4814823A1 SOUND BLANKT KIT
(X-Long)SOUND BLANKT KIT
(X-Long) -
4815225A1 SOUND BLANKET KIT
(Long/Tracker)SOUND BLANKET KIT
(Long/Tracker) -
5815227 SOUND BLANKET
(Long/Tracker)SOUND BLANKET
(Long/Tracker) -
610-69267 SCREW, (.312-18 x 1.750)SCREW, (.312-18 x 1.750)
-
712-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
810-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
911-815848 NUT, (.312)NUT, (.312)
-
10184741 BRACKET, RearBRACKET, Rear
-
1125-18506001 GROMMETGROMMET
-
1210-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1312-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
14813096A2 HOOK
(Design I Use With Ref. #15)HOOK
(Design I Use With Ref. #15) -
1512-36001 WASHER
(Design I Use With Ref. #15)WASHER
(Design I Use With Ref. #15) -
16815263 ROLLER
(Design I Use With Ref. #15)ROLLER
(Design I Use With Ref. #15) -
1753-13194 RING, Retaining
(Design I Use With Ref. #15)RING, Retaining
(Design I Use With Ref. #15) -
14813096A2 HOOK KIT
(Design II Use With Out Ref. #15)HOOK KIT
(Design II Use With Out Ref. #15) -
16815263 ROLLER
(Design II Use With Out Ref. #15)ROLLER
(Design II Use With Out Ref. #15) -
1753-8237951 RING, Snap
(Design II Use With Out Ref. #15)RING, Snap
(Design II Use With Out Ref. #15) -
1810-816992 SCREWSCREW
-
19187021 LOCATORLOCATOR
-
20893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
21816838 SPACERSPACER
-
2247341A11 ROPE AND HANDLE KIT, Manual/Emergency Start, For Manual StartingROPE AND HANDLE KIT, Manual/Emergency Start, For Manual Starting
-
2318755A1 FRONT SHIELD ASSEMBLYFRONT SHIELD ASSEMBLY
-
2318755A2 FRONT SHIELD ASSEMBLYFRONT SHIELD ASSEMBLY
-
2318755A4 FRONT SHIELD ASSEMBLY, SilverFRONT SHIELD ASSEMBLY, Silver
-
2318755A3 FRONT SHIELD ASSEMBLYFRONT SHIELD ASSEMBLY
-
2410-77137 SCREW, (.190-16 x .620)SCREW, (.190-16 x .620)
-
2512-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
26813562 SEALSEAL
