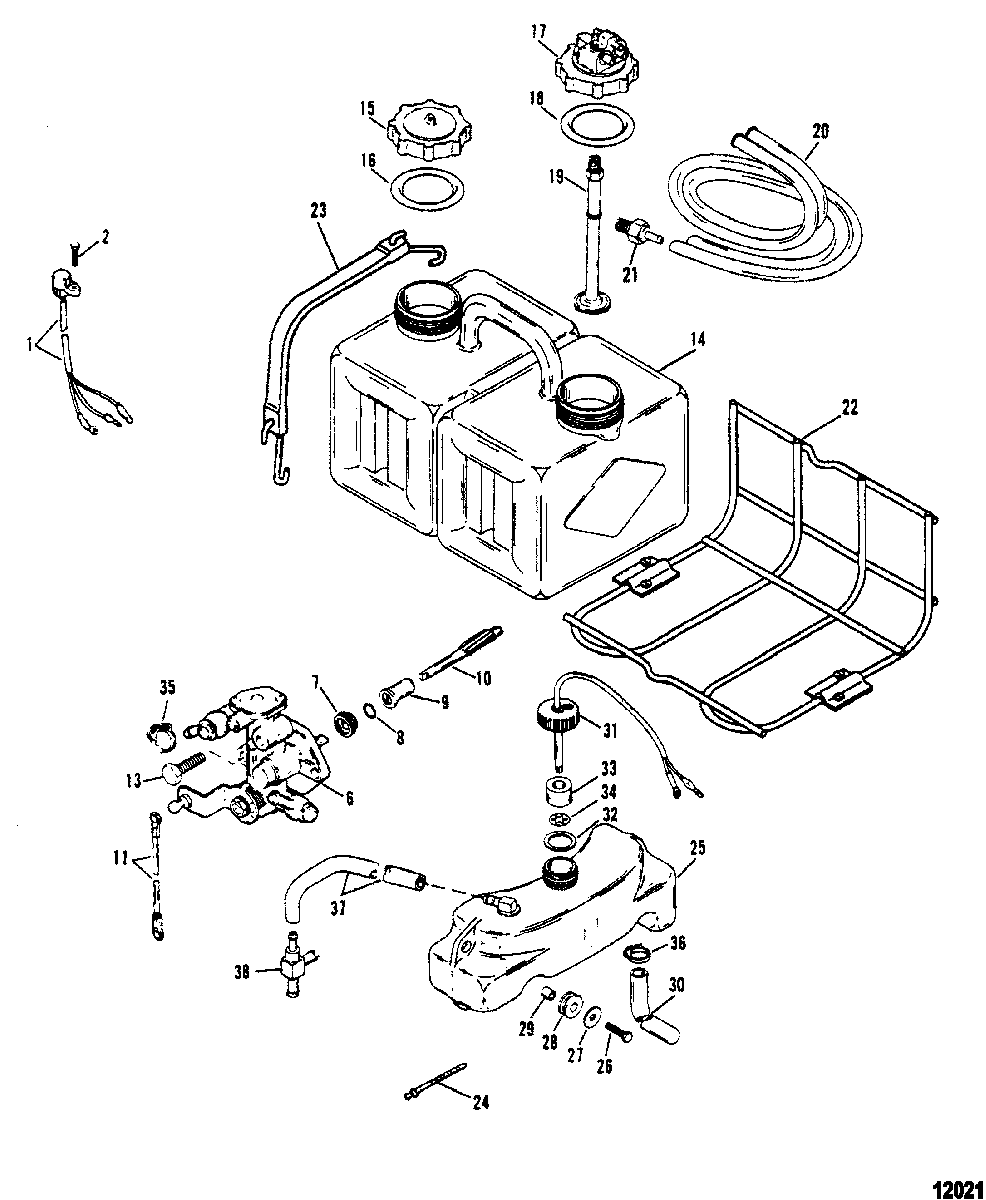

Oil Injection Components для Mariner - V-175 (SKI) 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    12430A4 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 2
    10-878609 SCREW, (#10-16 x .600), Sensor Attaching
    SCREW, (#10-16 x .600), Sensor Attaching
  • 6
    815699T PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 7
    8141032 BUSHING, Worm
    BUSHING, Worm
  • 8
    25-11379 O-RING
    O-RING
  • 9
    23-41429A2 BEARING ASSEMBLY, Drive Gear
    BEARING ASSEMBLY, Drive Gear
  • 10
    43-14563 GEAR, Driven
    GEAR, Driven
  • 11
    1938512 LINK ASSEMBLY, Throttle Lever To Oil Pump
    LINK ASSEMBLY, Throttle Lever To Oil Pump
  • 13
    10-32228 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 13
    10-41507 SCREW, (#10-32 x 1.120)
    SCREW, (#10-32 x 1.120)
  • 14
    1257-87421 TANK
    TANK
  • 15
    36-43298A2 CAP ASSEMBLY, Oil Tank
    CAP ASSEMBLY, Oil Tank
  • 16
    25-11332 O-RING, (2.225 x .210), Cap
    O-RING, (2.225 x .210), Cap
  • 17
    816190A4 HOUSING ASSEMBLY, Adapter
    HOUSING ASSEMBLY, Adapter
  • 18
    25-11332 O-RING, (2.225 x .210), Adaptor Housing
    O-RING, (2.225 x .210), Adaptor Housing
  • 19
    32-99802 TUBE, Oil Pick-Up
    TUBE, Oil Pick-Up
  • 20
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 21
    21-8781051 FITTING, Ceck Valve (Crankcase)
    FITTING, Ceck Valve (Crankcase)
  • 22
    12335A1 BRACKET KIT
    BRACKET KIT
  • 23
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 24
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 25
    994436 RESERVOIR, Oil
    RESERVOIR, Oil
  • 26
    10-690201 SCREW, (#10-32 x .875), Oil Reservoir Attatching
    SCREW, (#10-32 x .875), Oil Reservoir Attatching
  • 27
    12-42118 WASHER, Oil Reservoir Screw
    WASHER, Oil Reservoir Screw
  • 28
    25-42117 GROMMET, Oil Reservoir Screw
    GROMMET, Oil Reservoir Screw
  • 29
    23-42116 BUSHING, Oil Reservoir Screw
    BUSHING, Oil Reservoir Screw
  • 30
    32-82381455 TUBING, (15.500 Inches Bulk), Oil Reservoir To Oil Pump
    (Cut to 4.75 Inch Length)
    TUBING, (15.500 Inches Bulk), Oil Reservoir To Oil Pump
    (Cut to 4.75 Inch Length)
  • 31
    36-43300A9 CAP ASSEMBLY, Oil Reservoir
    CAP ASSEMBLY, Oil Reservoir
  • 32
    27-43307T GASKET, Reservoir Cap
    GASKET, Reservoir Cap
  • 33
    99022A1 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 34
    11-99265 PUSH NUT
    PUSH NUT
  • 35
    54-415824 CLAMP, Oil Hose
    (Use Where Applicable)
    CLAMP, Oil Hose
    (Use Where Applicable)
  • 36
    54-415823 CLAMP, Oil Hose
    CLAMP, Oil Hose
  • 37
    32-8M0108355 LINE, (57.00 Inches Bulk), Oil
    (Cut to 5.25 Inch Length)
    LINE, (57.00 Inches Bulk), Oil
    (Cut to 5.25 Inch Length)
  • 38
    22-42425 TEE, Oil Tubing
    TEE, Oil Tubing
