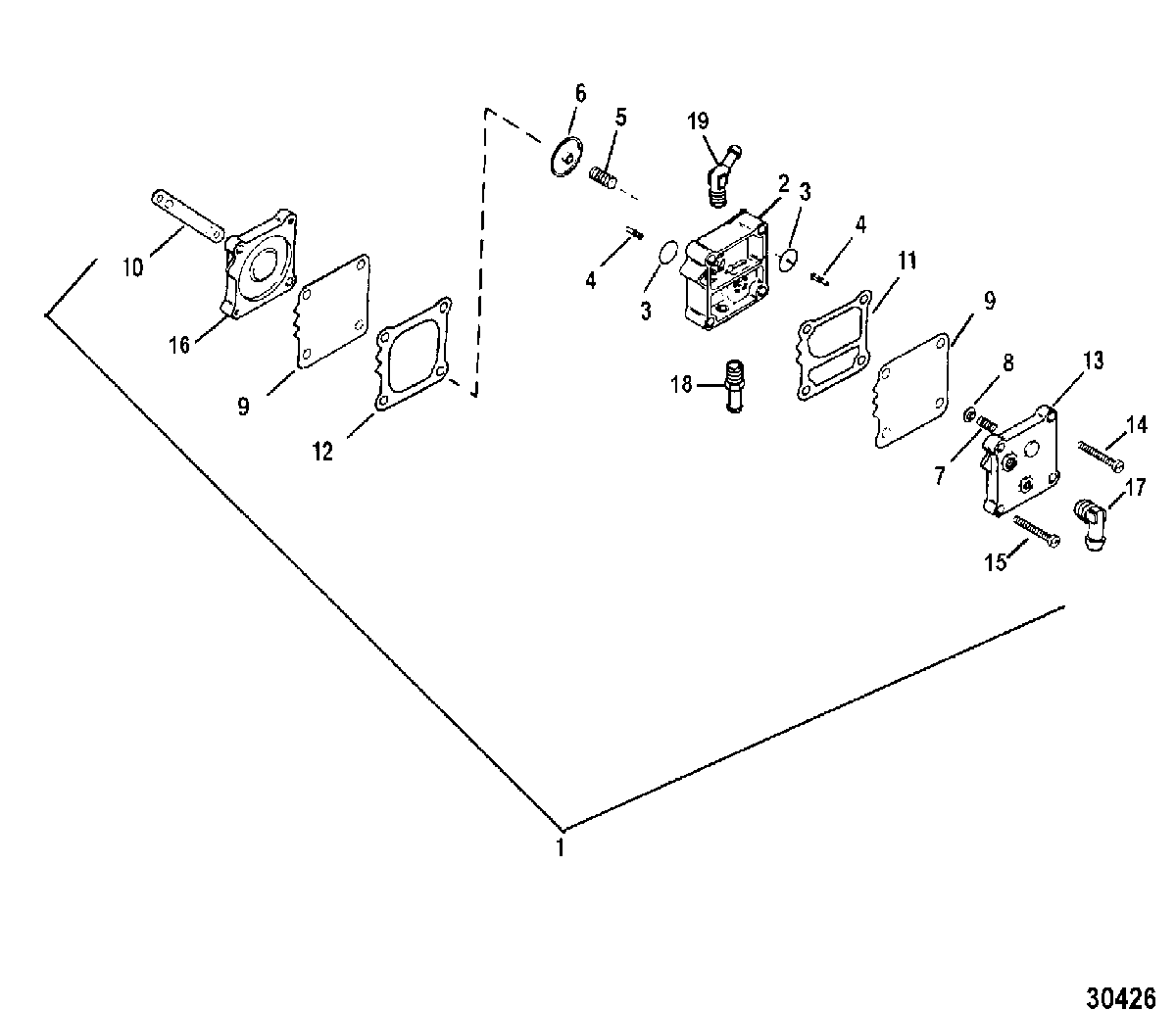

FUEL PUMP для Mariner - V-175 DFI (2.5L) 0T178500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    14360T75 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    NSS NOT SOLD SEPARATE, Body-Fuel Pump
    NOT SOLD SEPARATE, Body-Fuel Pump
  • -
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, DISC CHECK VALVE
    NOT SOLD SEPARATE, DISC CHECK VALVE
  • 4
    NSS NOT SOLD SEPARATE, RETAINER
    NOT SOLD SEPARATE, RETAINER
  • 5
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 6
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 7
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 8
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 9
    NSS NOT SOLD SEPARATE, DIAPHRAGM
    NOT SOLD SEPARATE, DIAPHRAGM
  • 10
    27-987691 GASKET
    GASKET
  • 11
    NSS NOT SOLD SEPARATE, GASKET-BOOST
    NOT SOLD SEPARATE, GASKET-BOOST
  • 12
    NSS NOT SOLD SEPARATE, GASKET-PULSE
    NOT SOLD SEPARATE, GASKET-PULSE
  • 13
    987752 PLATE
    PLATE
  • 14
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 15
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 16
    144303 BASE
    BASE
  • 17
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 18
    22-291112 FITTING
    FITTING
  • 19
    22-782792 FITTING, Elbow 45 Degree (1.25)
    FITTING, Elbow 45 Degree (1.25)
  • -
    27-8M0046714 GASKET SET, Engine
    GASKET SET, Engine
  • -
    879808T07 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    879809T07 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
