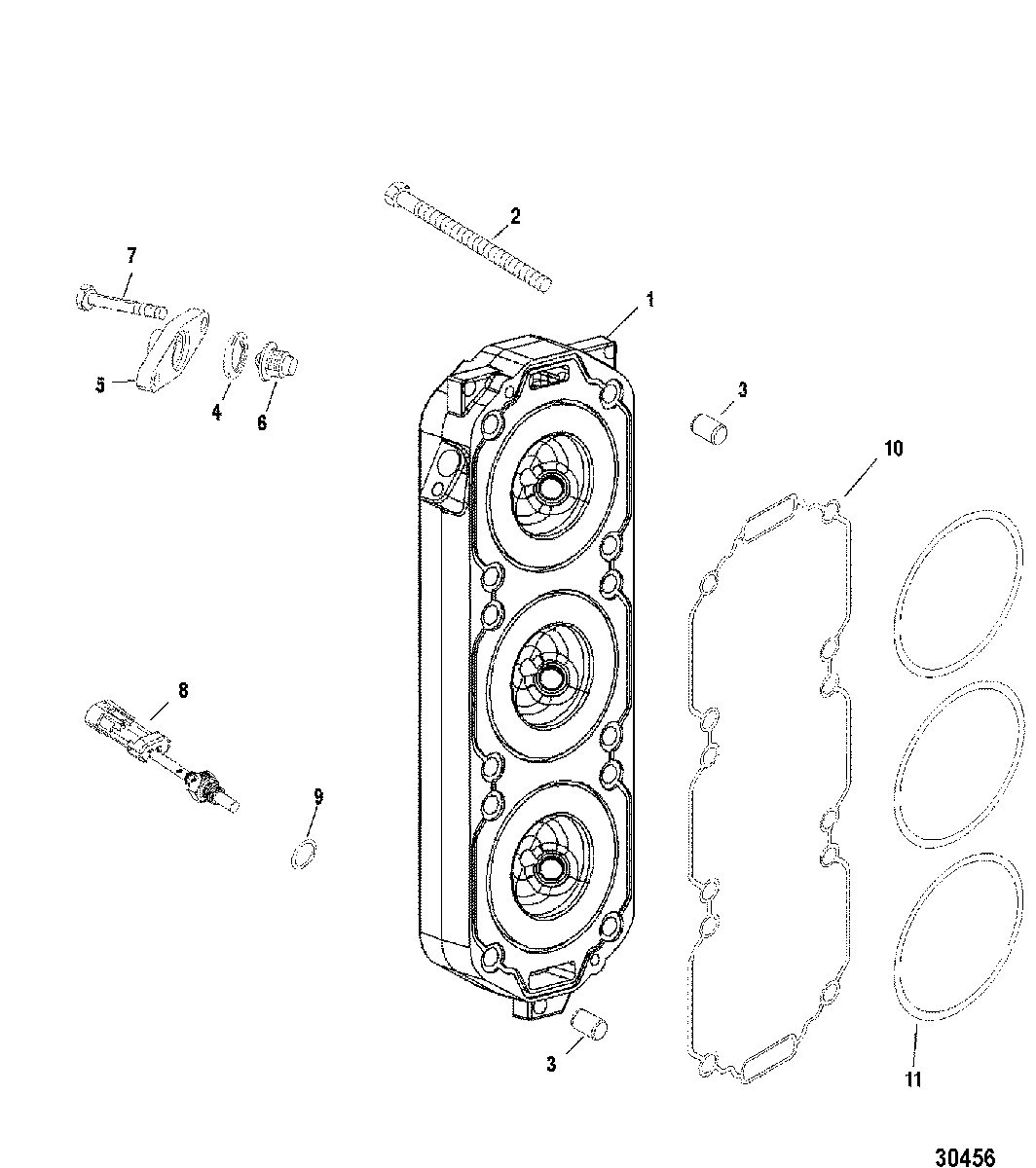

CYLINDER HEAD для Mariner - V-175 DFI (2.5L) 0T178500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    858405T4 CYLINDER HEAD
    (PORT)(135/150)
    CYLINDER HEAD
    (PORT)(135/150)
  • 1
    858406T4 CYLINDER HEAD
    (STARBOARD)(135/150)
    CYLINDER HEAD
    (STARBOARD)(135/150)
  • 1
    878109T1 CYLINDER HEAD ASSEMBLY
    (PORT)(175)
    CYLINDER HEAD ASSEMBLY
    (PORT)(175)
  • 1
    878110T1 CYLINDER HEAD ASSEMBLY
    (STARBOARD)(175)
    CYLINDER HEAD ASSEMBLY
    (STARBOARD)(175)
  • 2
    10-8M0125882 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 3
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 4
    27-62386001 GASKET
    GASKET
  • 5
    8M0039353 COVER
    COVER
  • 6
    833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
    THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
  • 7
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 8
    889575 SENSOR ASSEMBLY, Temperature
    SENSOR ASSEMBLY, Temperature
  • 9
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 10
    8584521 SEAL
    SEAL
  • 11
    8597721 SEAL
    SEAL
  • -
    27-8M0046714 GASKET SET, Engine
    GASKET SET, Engine
  • -
    879808T07 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    879809T07 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
