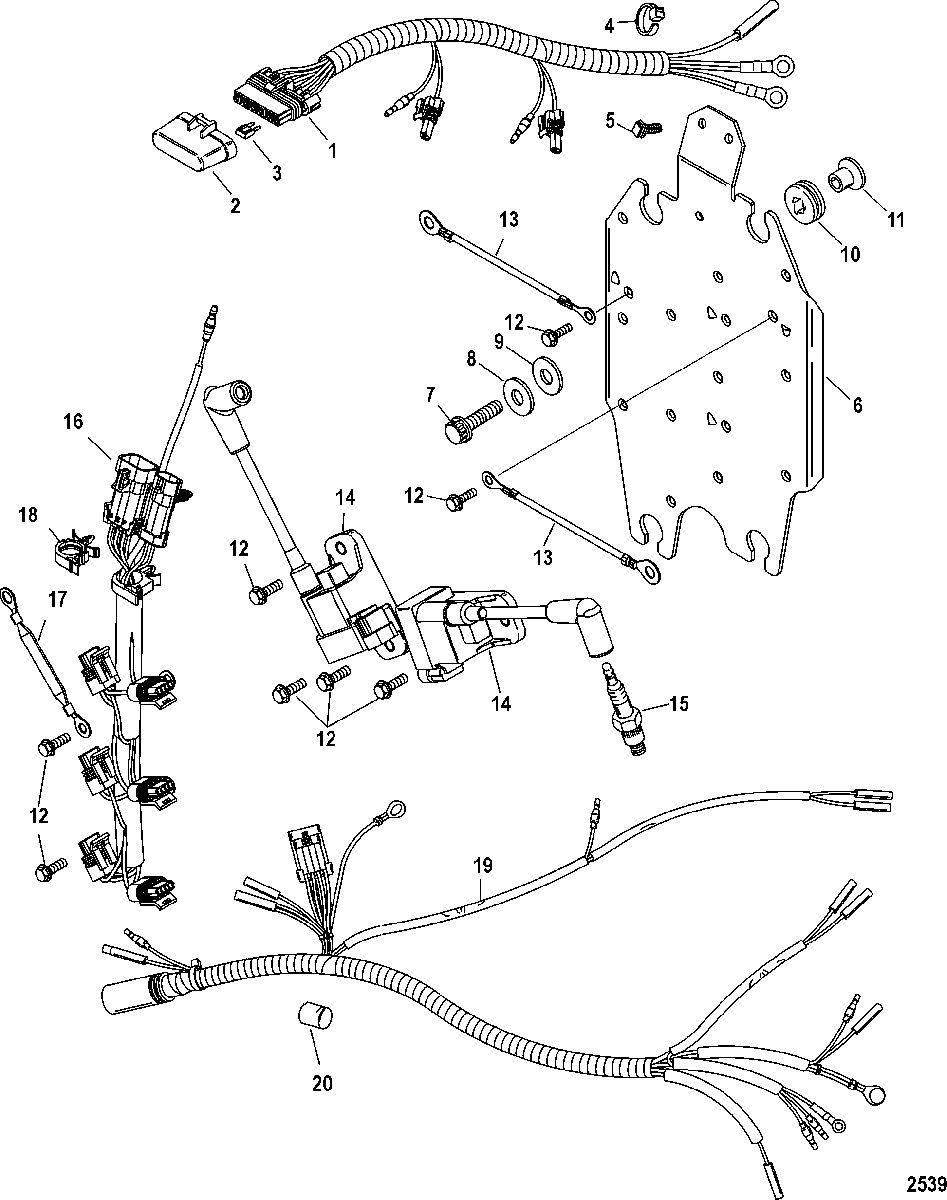

CDM Mounting для Mariner - V-150 0G960500 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    84-858425T2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE, Cover
    NOT SOLD SEPARATE, Cover
  • 3
    88-83296930 FUSE, Mini - Green - 30 Ampere
    (30 AMP)(GREEN)
    FUSE, Mini - Green - 30 Ampere
    (30 AMP)(GREEN)
  • 3
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    (20 AMP)(YELLOW)
    FUSE, Mini - Yellow - 20 Ampere
    (20 AMP)(YELLOW)
  • 4
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 5
    54-828991T CLIP
    CLIP
  • 6
    8571621 PLATE, CDM Mounting
    PLATE, CDM Mounting
  • 7
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 8
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 9
    12-49436 WASHER
    WASHER
  • 10
    25-833155 GROMMET
    GROMMET
  • 11
    23-8502341 BUSHING
    BUSHING
  • 12
    10-82129116 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 13
    84-856583A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 14
    827509T7 CDM MODULE ASSEMBLY
    CDM MODULE ASSEMBLY
  • -
    84-857124A1 CABLE ASSEMBLY, Hi-Tension
    CABLE ASSEMBLY, Hi-Tension
  • -
    85-857074A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 15
    33-14814Q SPARK PLUG, (NGK # BPZ8HS-10)
    SPARK PLUG, (NGK # BPZ8HS-10)
  • 16
    84-857163T1 HARNESS ASSEMBLY, CDM
    HARNESS ASSEMBLY, CDM
  • 17
    84-858414A1 CABLE ASSEMBLY, Braided
    CABLE ASSEMBLY, Braided
  • 18
    828791 CLIP
    CLIP
  • 19
    84-857166T1 HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 20
    13541 PLUG, Male
    PLUG, Male
