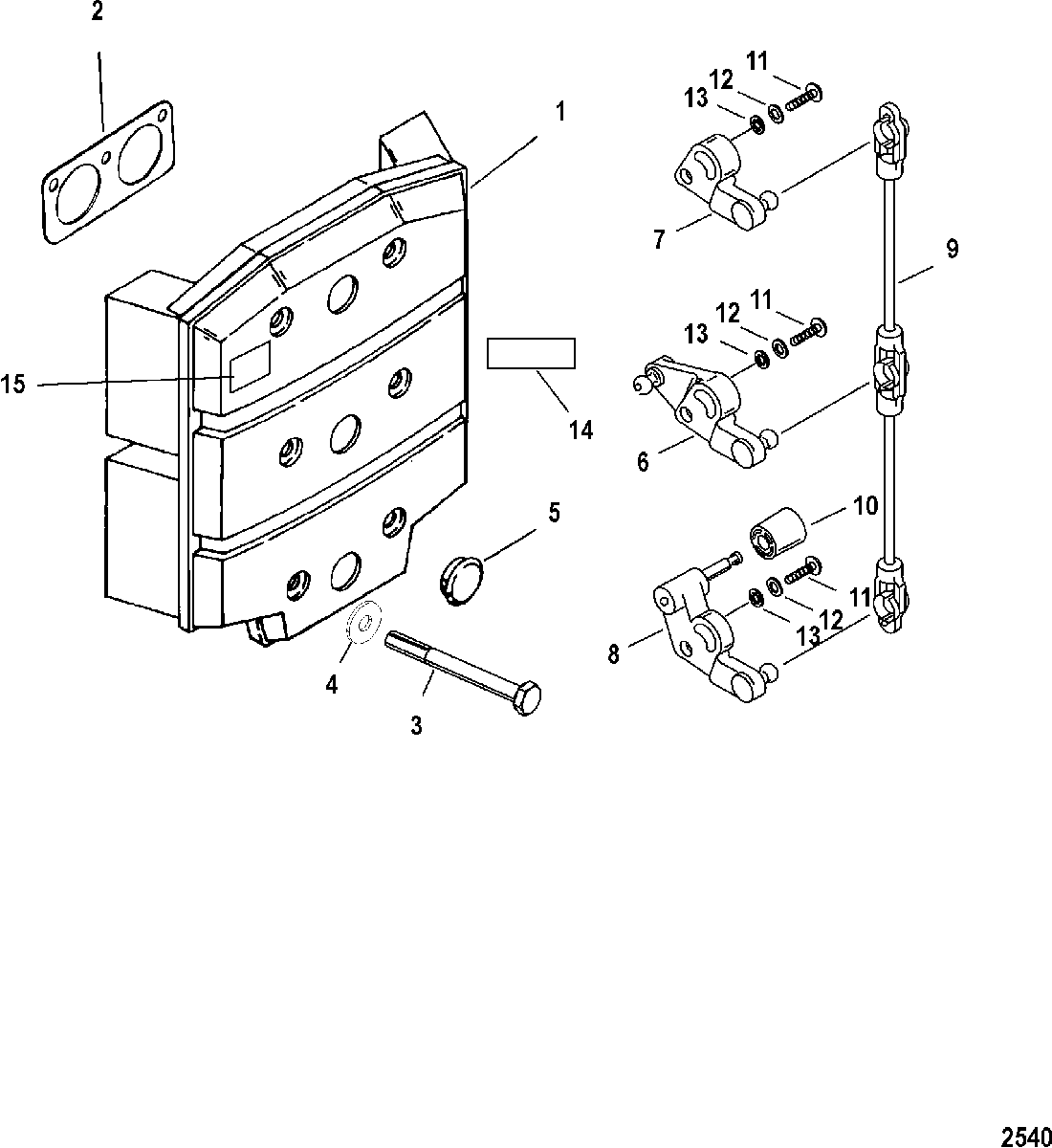

Attenuator Plate and Throttle Levers для Mariner - V-150 0G960500 THRU 1B226999
-
№АртикулНазвание
-
1817495A1 PLATE ASSEMBLY, Sound AttenuatorPLATE ASSEMBLY, Sound Attenuator
-
227-892211 GASKETGASKET
-
310-884891 SCREW, (.250-28 x 2.500) With Nylon Patch - Stainless SteelSCREW, (.250-28 x 2.500) With Nylon Patch - Stainless Steel
-
412-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
519-815784 CAPCAP
-
6828277A1 LINKAGE KITLINKAGE KIT
-
7NSS NOT SOLD SEPARATE, Throttle LeverNOT SOLD SEPARATE, Throttle Lever
-
8NSS NOT SOLD SEPARATE, Throttle LeverNOT SOLD SEPARATE, Throttle Lever
-
9NSS NOT SOLD SEPARATE, Throttle LinkNOT SOLD SEPARATE, Throttle Link
-
1018178 ROLLERROLLER
-
1110-15124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1212-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1313-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
1437-804668A00 DECAL, EPA Label Information
(2000)(135)DECAL, EPA Label Information
(2000)(135) -
1437-804669A00 DECAL, EPA Label Information
(2000)(150/XR6/MAG.III/200)DECAL, EPA Label Information
(2000)(150/XR6/MAG.III/200) -
1437-804669A01 DECAL, EPA Label Information
(2001)DECAL, EPA Label Information
(2001) -
1437-804669A02 DECAL, EPA Label Information
(2002)DECAL, EPA Label Information
(2002) -
1437-804669A03 DECAL, EPA Label Information
(2003)DECAL, EPA Label Information
(2003) -
1437-804669A04 DECAL, EPA Label Information
(2004)DECAL, EPA Label Information
(2004) -
1437-804669A05 DECAL, EPA Label Information
(2005)DECAL, EPA Label Information
(2005) -
15NSS NOT SOLD SEPARATE, Decal-Caution AirboxNOT SOLD SEPARATE, Decal-Caution Airbox
-
-27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not includedGASKET SET, Engine, Cylinder head o-rings and seal not included
