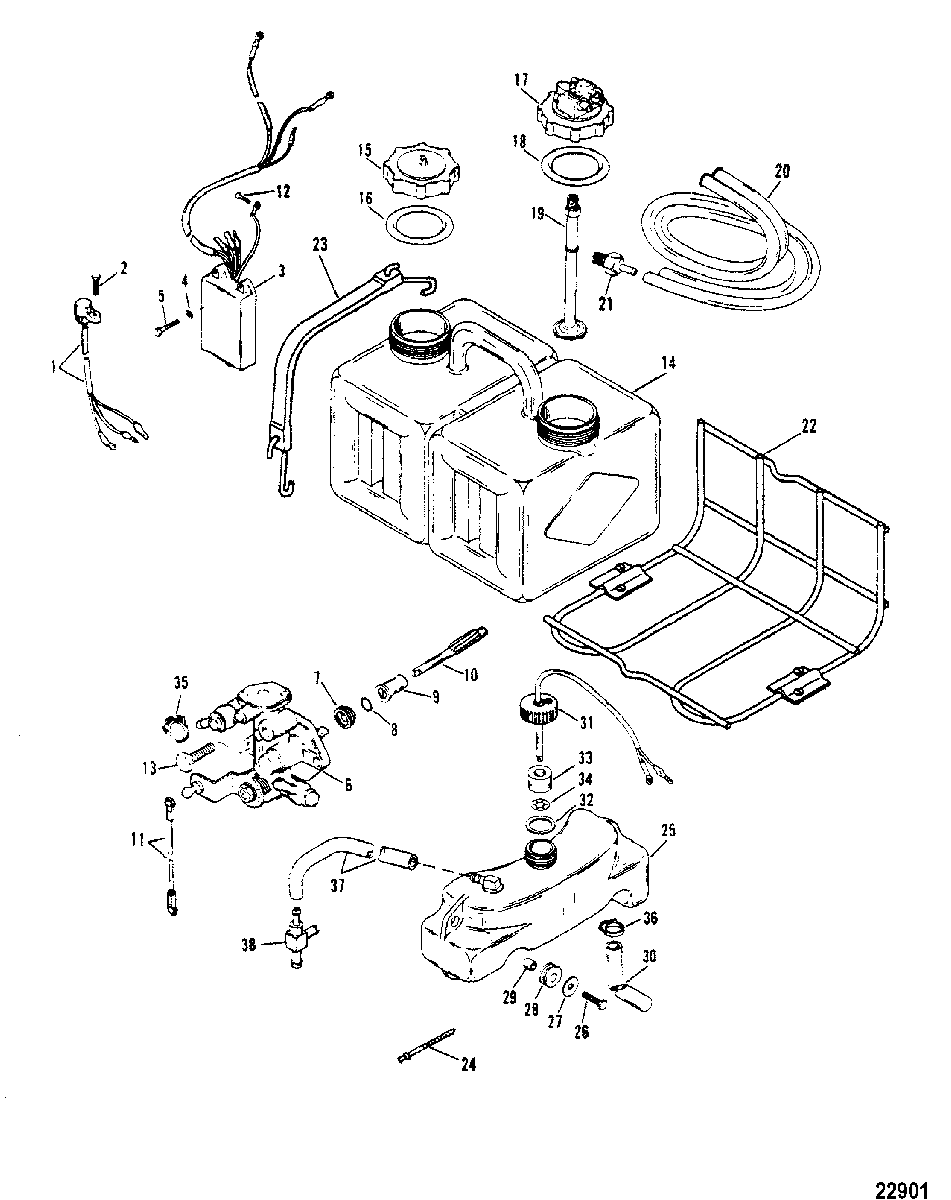

OIL INJECTION COMPONENTS для Mariner - V-150 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    12430A4 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 2
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 3
    41470A26 WARNING MODULE ASSEMBLY
    WARNING MODULE ASSEMBLY
  • 4
    12-38833 WASHER
    WASHER
  • 5
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 6
    815698T PUMP, Oil (135/150)
    PUMP, Oil (135/150)
  • 6
    815699T PUMP ASSEMBLY, Oil (XR6/MAGNUM III/175/200)
    PUMP ASSEMBLY, Oil (XR6/MAGNUM III/175/200)
  • 7
    8141032 BUSHING, Worm
    BUSHING, Worm
  • 8
    25-11379 O-RING
    O-RING
  • 9
    23-41429A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 10
    43-14563 GEAR, Driven
    GEAR, Driven
  • 11
    1938516 LINK
    LINK
  • 12
    10-42813 SCREW, (#10-32 X .380)
    SCREW, (#10-32 X .380)
  • 13
    10-32228 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 13
    10-41507 SCREW, (#10-32 x 1.120)
    SCREW, (#10-32 x 1.120)
  • 14
    1257-87421 TANK
    TANK
  • 15
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 16
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 17
    816190A4 HOUSING ASSEMBLY, Adapter
    HOUSING ASSEMBLY, Adapter
  • 18
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 19
    32-99802 TUBE
    TUBE
  • 20
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 21
    21-8781051 FITTING (CRANKCASE)
    FITTING (CRANKCASE)
  • 22
    12335A1 BRACKET KIT
    BRACKET KIT
  • 23
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 24
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 25
    994436 RESERVOIR, Oil
    RESERVOIR, Oil
  • 26
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 27
    12-42118 WASHER
    WASHER
  • 28
    25-42117 GROMMET
    GROMMET
  • 29
    23-42116 BUSHING
    BUSHING
  • 30
    32-82381455 TUBING, (15.500 Inches Bulk) (Cut to 4.75 Inches)
    TUBING, (15.500 Inches Bulk) (Cut to 4.75 Inches)
  • 31
    36-43300A9 CAP ASSEMBLY
    CAP ASSEMBLY
  • 32
    27-43307T GASKET
    GASKET
  • 33
    99022A1 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 34
    11-99265 PUSH NUT
    PUSH NUT
  • 35
    54-415824 CLAMP
    USE WHERE APPLICABLE
    CLAMP
    USE WHERE APPLICABLE
  • 36
    54-415823 CLAMP
    USE WHERE APPLICABLE
    CLAMP
    USE WHERE APPLICABLE
  • 37
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 5.25 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 5.25 Inches)
  • 38
    22-42425 TEE
    TEE
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (XR6/Magnum III) SN# 0D284787 & Below
    POWERHEAD ASSEMBLY
    (XR6/Magnum III) SN# 0D284787 & Below
  • -
    823434R97 POWERHEAD ASSEMBLY
    (XR6/Magnum III) SN# 0D284788 & Up
    POWERHEAD ASSEMBLY
    (XR6/Magnum III) SN# 0D284788 & Up
  • -
    823434R97 POWERHEAD ASSEMBLY
    (Tracker 150)
    POWERHEAD ASSEMBLY
    (Tracker 150)
  • -
    812817R97 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
  • -
    813043R97 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
