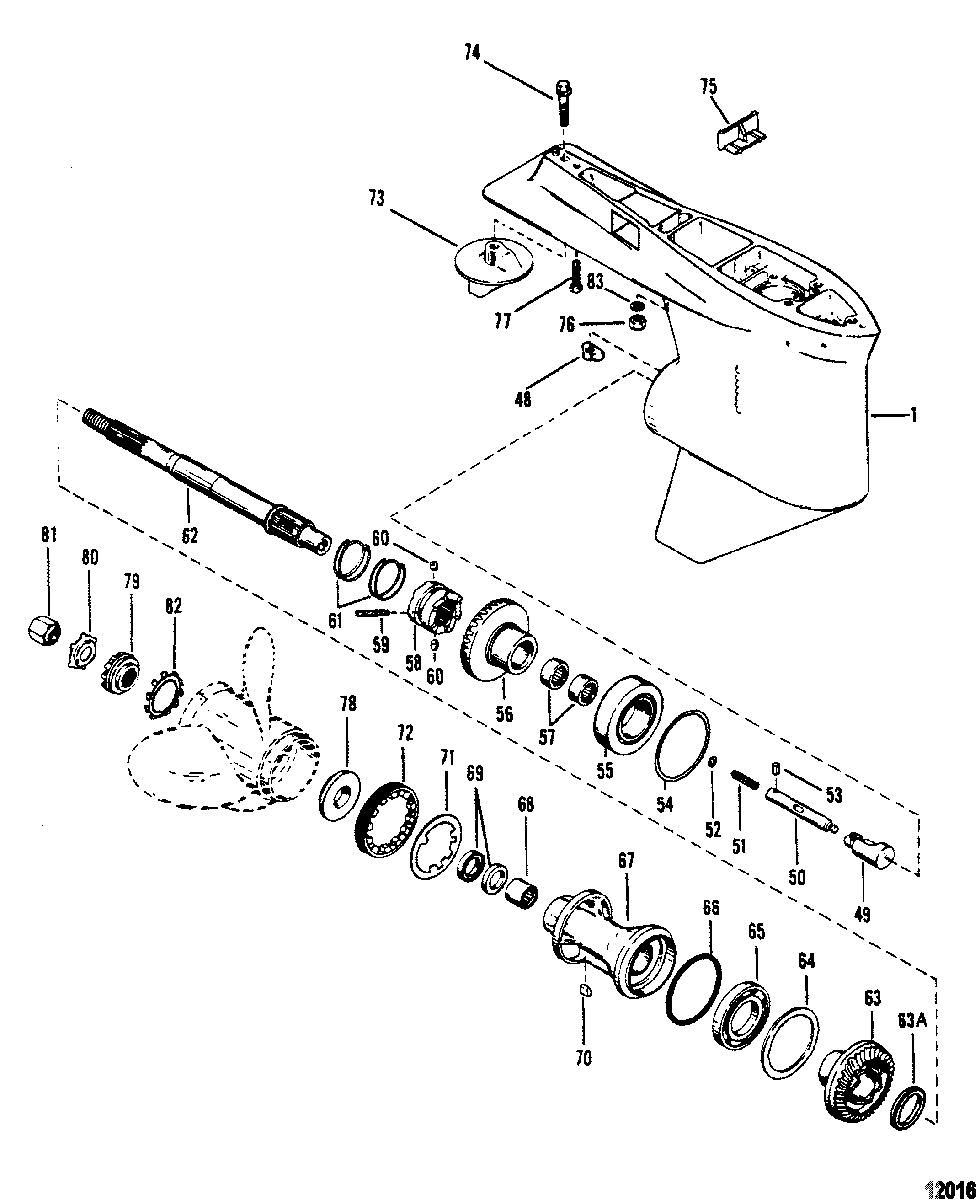

GEAR HOUSING(PROPSHAFT) для Mariner - V-150 0D082000 THRU 0G303045

  • №
    Артикул
    Название
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (BLACK)
    GEAR HOUSING ASSEMBLY (BASIC) (BLACK)
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (GRAY)
    GEAR HOUSING ASSEMBLY (BASIC) (GRAY)
  • 1
    1647-9148T49 GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)
    GEAR HOUSING ASSEMBLY (BASIC) (TRACKER)
  • 49
    89594A1 FOLLOWER ASSEMBLY
    FOLLOWER ASSEMBLY
  • 48
    789562 SHIFT CAM
    SHIFT CAM
  • 50
    79911A1 ROD
    ROD
  • 51
    24-79910 SPRING
    SPRING
  • 52
    12-78910 WASHER
    WASHER
  • 53
    17-8M0084245 PIN
    PIN
  • 54
    15-47397A1 SHIM SET (.002-3-5-10)
    SHIM SET (.002-3-5-10)
  • 55
    31-78172A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 56
    43-44102A2 GEAR ASSEMBLY, Forward (135/150) (INCLS. REVERSE GEAR)
    SN# 0G052417 & Below
    GEAR ASSEMBLY, Forward (135/150) (INCLS. REVERSE GEAR)
    SN# 0G052417 & Below
  • 56
    43-44102A7 GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)
    SN# 0G052418 & Up
    GEAR SET (135/150) (DOES NOT INCL. REVERSE GEAR)
    SN# 0G052418 & Up
  • 56
    43-16294A5 GEAR SET, HIGH ALTITUDE - 2.3:1 GEAR RATIO
    GEAR SET, HIGH ALTITUDE - 2.3:1 GEAR RATIO
  • 56
    43-44104T2 GEAR ASSEMBLY, Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)
    SN# 0G052417 & Below
    GEAR ASSEMBLY, Forward (175/200/XR6/MAGNUM III) (INCLS. REVERSE GEAR)
    SN# 0G052417 & Below
  • 56
    43-44104A8 GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)
    SN# 0G052418 & Up
    GEAR SET (175/200/XR6/MAGNUM III) (DEOS NOT INCLUDE REVERSE GEAR)
    SN# 0G052418 & Up
  • 57
    31-549281 BEARING, Roller
    BEARING, Roller
  • 58
    52-8M0100493 CLUTCH
    CLUTCH
  • 59
    17-8M0084243 PIN, Cross
    PIN, Cross
  • 60
    17-78909 PIN, Detent
    PIN, Detent
  • 61
    24-78962 SPRING
    SPRING
  • 62
    44-94148 PROPELLER SHAFT
    PROPELLER SHAFT
  • 63
    N.S.S. Not Sold Separate, Reverse Gear (Part of Forward Gear Set)
    SN# 0G052417 & Below
    Not Sold Separate, Reverse Gear (Part of Forward Gear Set)
    SN# 0G052417 & Below
  • 63
    43-824987A2 GEAR ASSEMBLY, Reverse (135/150)
    SN# 0G052418 & Up
    GEAR ASSEMBLY, Reverse (135/150)
    SN# 0G052418 & Up
  • 63
    43-824986A2 GEAR ASSEMBLY, Reverse (175/200/XR6/MAG. III)
    SN# 0G052418 & Up
    GEAR ASSEMBLY, Reverse (175/200/XR6/MAG. III)
    SN# 0G052418 & Up
  • 63A
    23-824108 SPACER
    SN# 0G052418 & Up
    SPACER
    SN# 0G052418 & Up
  • 64
    681001 RING, Thrust
    RING, Thrust
  • 65
    30-88957T BEARING, Ball
    BEARING, Ball
  • 66
    25-31534 O-RING
    O-RING
  • 67
    43567T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 68
    31-30956T BEARING, Needle
    BEARING, Needle
  • 69
    26-76868 SEAL
    SEAL
  • 70
    28-30281 KEY
    KEY
  • 71
    14-79447 TAB WASHER
    TAB WASHER
  • 72
    8M2000347 RETAINER
    RETAINER
  • 73
    97-31640Q4 TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)
    TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)
  • 73
    31640T07 TRIM TAB (USE WITH GEAR HOUSING W/ANODES)
    TRIM TAB (USE WITH GEAR HOUSING W/ANODES)
  • 74
    10-806327 SCREW, (.437-14 x 1.750) (1-5/8")
    SCREW, (.437-14 x 1.750) (1-5/8")
  • 75
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 76
    11-34933 NUT, (.437-20) Stainless Steel
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    NUT, (.437-20) Stainless Steel
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 77
    10-65210 SCREW, (.375-16 x 1.00)
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    SCREW, (.375-16 x 1.00)
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 78
    12-835467Q01 THRUST HUB
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    THRUST HUB
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 79
    12-31211Q03 WASHER, Splined
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    WASHER, Splined
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 80
    14-816629Q TAB WASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    TAB WASHER
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 81
    11-52707Q1 PROP NUT KIT, (.750-16)
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    PROP NUT KIT, (.750-16)
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 82
    13-423511 LOCKWASHER, Toothed
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    LOCKWASHER, Toothed
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • 83
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    WASHER, (.453 x .812 x .105) Stainless Steel
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • -
    27-815791A92 GASKET SET, Engine
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    GASKET SET, Engine
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
  • -
    26-89238A2 SEAL KIT
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
    SEAL KIT
    THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
