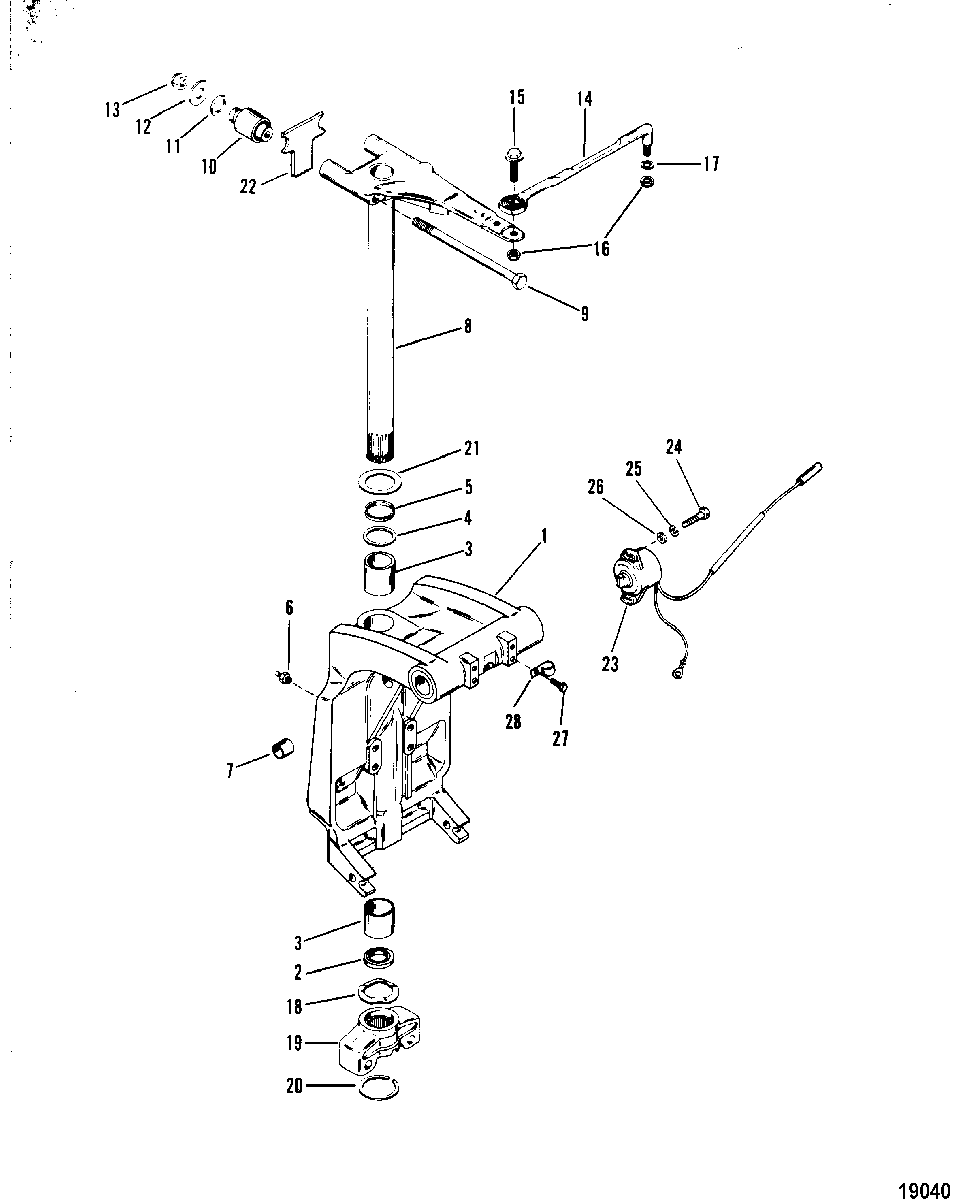

Swivel Bracket and Steering Arm для Mariner - V-150 0A904646 THRU 0C100860
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (BLACK)SWIVEL BRACKET ASSEMBLY (BLACK)
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (GRAY)SWIVEL BRACKET ASSEMBLY (GRAY)
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY (OYSTER)SWIVEL BRACKET ASSEMBLY (OYSTER)
-
226-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)SEAL, Oil, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET - (LOWER AND UPPER)BUSHING, SWIVEL BRACKET - (LOWER AND UPPER)
-
425-33466 O-RING, SWIVEL BRACKET - (UPPER)O-RING, SWIVEL BRACKET - (UPPER)
-
523-67668 SPACER, SWIVEL BRACKET - (UPPER)SPACER, SWIVEL BRACKET - (UPPER)
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
817-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm (BLACK)SWIVEL PIN ASSEMBLY, Steering Arm (BLACK)
-
817-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm (GRAY)SWIVEL PIN ASSEMBLY, Steering Arm (GRAY)
-
817-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm (OYSTER)SWIVEL PIN ASSEMBLY, Steering Arm (OYSTER)
-
910-8M0000491 SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNTSCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
-
1077326 MOUNT, RUBBER - (UPPER)MOUNT, RUBBER - (UPPER)
-
1112-66921 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1212-78688 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1311-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLTNUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
-
1492876A12 LINK ASSEMBLY, Steering (BLACK & GRAY)LINK ASSEMBLY, Steering (BLACK & GRAY)
-
1510-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM (BLACK & GRAY)SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM (BLACK & GRAY)
-
1611-8M0042636 NUT, (.375-24), STEERING LINK SCREW (BLACK & GRAY)NUT, (.375-24), STEERING LINK SCREW (BLACK & GRAY)
-
1712-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM (BLACK & GRAY)WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM (BLACK & GRAY)
-
1813-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
19878182T01 YOKE ASSEMBLY, Bottom (BLACK)YOKE ASSEMBLY, Bottom (BLACK)
-
19878182T01 YOKE ASSEMBLY, Bottom (GRAY)YOKE ASSEMBLY, Bottom (GRAY)
-
19878182T01 YOKE ASSEMBLY, Bottom (OYSTER)YOKE ASSEMBLY, Bottom (OYSTER)
-
2053-67684 RING, Retaining, BOTTOM YOKERING, Retaining, BOTTOM YOKE
-
2112-67670 WASHER, THRUST - SWIVEL BRACKETWASHER, THRUST - SWIVEL BRACKET
-
2288882 BUMPER, Top Yoke, TOP YOKEBUMPER, Top Yoke, TOP YOKE
-
238M0098273 SENDER ASSEMBLY, TrimSENDER ASSEMBLY, Trim
-
2410-852368 SCREW, (#10-24 x .750), TRIM SENDERSCREW, (#10-24 x .750), TRIM SENDER
-
2513-26996 LOCKWASHER, (#10) Stainless Steel, TRIM, SENDER SCREWLOCKWASHER, (#10) Stainless Steel, TRIM, SENDER SCREW
-
2612-89302 WASHER, (.203 x .406 x .040), TRIM SENDER SCREWWASHER, (.203 x .406 x .040), TRIM SENDER SCREW
-
2710-64014 SCREW, (.250-28 x .500), SWIVEL BRACKETSCREW, (.250-28 x .500), SWIVEL BRACKET
-
2854-54457 J CLIPJ CLIP
-
-27-90484A88 GASKET SETGASKET SET
