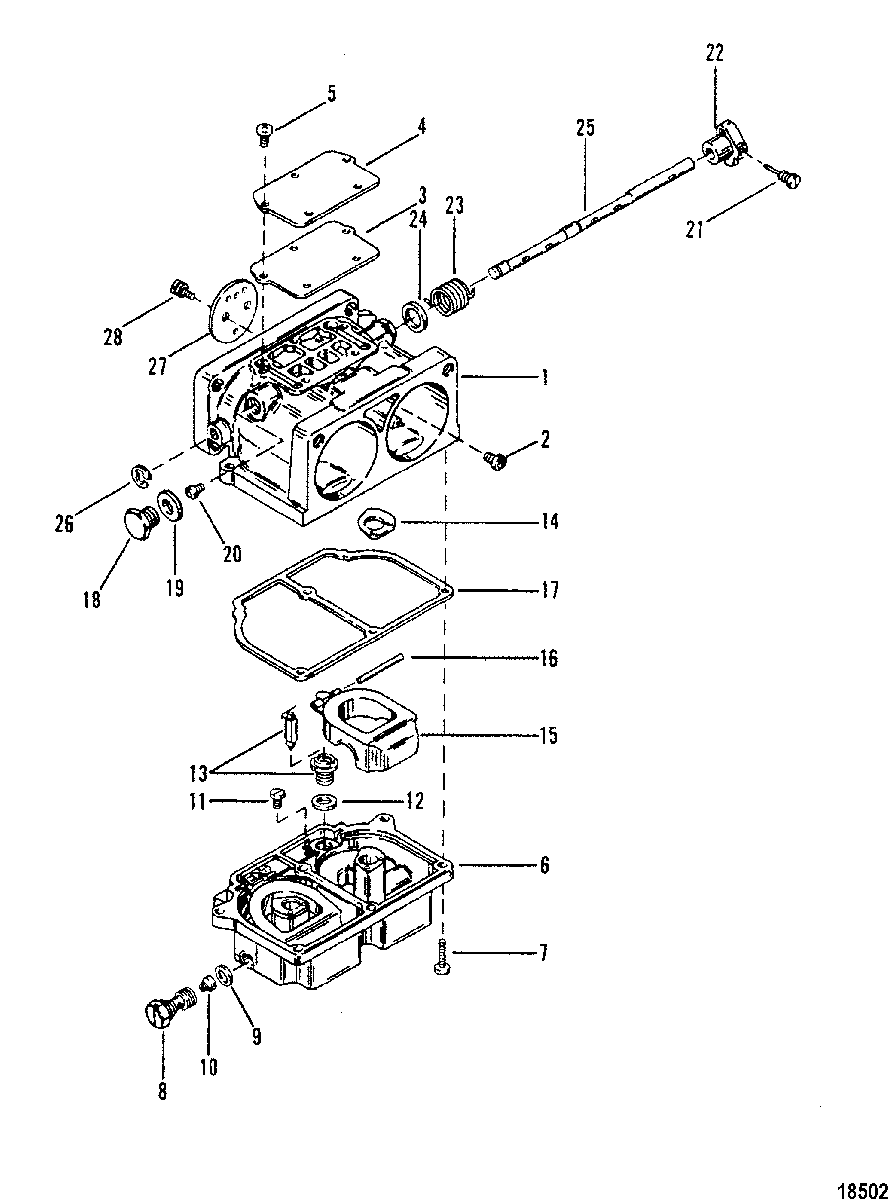

Carburetor для Mariner - V-150 0A904646 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    1374-9242A33 CARBURETOR (TOP) (WH-40)
    CARBURETOR (TOP) (WH-40)
  • 1
    1374-9242A34 CARBURETOR (CENTER) (WH-40)
    CARBURETOR (CENTER) (WH-40)
  • 1
    1374-9242A35 CARBURETOR (BOTTOM) ( WH-40)
    CARBURETOR (BOTTOM) ( WH-40)
  • 1
    1382-7563A10 CARBURETOR (TOP) (WH-35)
    CARBURETOR (TOP) (WH-35)
  • 1
    1382-7563A11 CARBURETOR (CENTER) (WH-35)
    CARBURETOR (CENTER) (WH-35)
  • 1
    1382-7563A12 CARBURATOR (BOTTOM) (WH-35)
    CARBURATOR (BOTTOM) (WH-35)
  • 1
    1382-7563A13 CARBURETOR (TOP) (WH-38)
    CARBURETOR (TOP) (WH-38)
  • 1
    1382-7563A14 CARBURETOR (CENTER) (WH-38)
    CARBURETOR (CENTER) (WH-38)
  • 1
    1382-7563A15 CARBURETOR (BOTTOM) (WH-38)
    CARBURETOR (BOTTOM) (WH-38)
  • 2
    1399-6249 JET, Main (.096), FUEL BOWL(WH-32) (WH-38)
    JET, Main (.096), FUEL BOWL(WH-32) (WH-38)
  • 2
    1395-8423 JET, (.094), FUEL BOWL (.094) (WH-35)
    JET, (.094), FUEL BOWL (.094) (WH-35)
  • 2
    1395-6680 JET, (.078), FUEL BOWL (WH-40)
    JET, (.078), FUEL BOWL (WH-40)
  • 3
    NSS NOT SOLD SEPARATE, Gasket-Cover Plate
    NOT SOLD SEPARATE, Gasket-Cover Plate
  • 4
    1395-6032 PLATE, COVER
    PLATE, COVER
  • 5
    NSS NOT SOLD SEPARATE, Screw-Cover Plate
    NOT SOLD SEPARATE, Screw-Cover Plate
  • 6
    1395-7822 BOWL, Fuel (WH-33)
    BOWL, Fuel (WH-33)
  • 6
    1395-7823 BOWL, Fuel (TOP)
    (WH-32, WH-38, WH-35, WH-40)
    BOWL, Fuel (TOP)
    (WH-32, WH-38, WH-35, WH-40)
  • 6
    1395-7822 BOWL, Fuel (CENTER/BOTTOM)
    (WH-32, WH-38, WH-35, WH-40)
    BOWL, Fuel (CENTER/BOTTOM)
    (WH-32, WH-38, WH-35, WH-40)
  • 7
    NSS NOT SOLD SEPARATE, Screw-Fuel Bowl
    NOT SOLD SEPARATE, Screw-Fuel Bowl
  • 8
    1395-6025 PLUG, MAIN JET
    PLUG, MAIN JET
  • 9
    NSS NOT SOLD SEPARATE, Gasket-Main Jet
    NOT SOLD SEPARATE, Gasket-Main Jet
  • 10
    1399-4216 JET, (.064), MAIN FUEL (WH-33)
    JET, (.064), MAIN FUEL (WH-33)
  • 10
    1395-6246 JET, (.048), MAIN FUEL (WH-32)
    JET, (.048), MAIN FUEL (WH-32)
  • 10
    1395-6028 JET, (.050), MAIN FUEL (WH-35)
    JET, (.050), MAIN FUEL (WH-35)
  • 10
    1395-6359 JET, (.052), MAIN FUEL (WH-38)
    JET, (.052), MAIN FUEL (WH-38)
  • 10
    1395-6201 JET, (.080), MAIN FUEL (WH-40)
    JET, (.080), MAIN FUEL (WH-40)
  • 11
    NSS NOT SOLD SEPARATE, Screw-Float Pin
    NOT SOLD SEPARATE, Screw-Float Pin
  • 12
    NSS NOT SOLD SEPARATE, Gasket--Inlet Needle and Seat
    NOT SOLD SEPARATE, Gasket--Inlet Needle and Seat
  • 13
    1395-7824 NEEDLE/SEAT ASSEMBLY, Inlet
    NEEDLE/SEAT ASSEMBLY, Inlet
  • 14
    NSS NOT SOLD SEPARATE, Gasket-Nozzle Boss
    NOT SOLD SEPARATE, Gasket-Nozzle Boss
  • 15
    1395-9267 FLOAT
    FLOAT
  • 16
    NSS NOT SOLD SEPARATE, Pin-Float Lever
    NOT SOLD SEPARATE, Pin-Float Lever
  • 17
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 18
    1395-4541 SCREW, IDLE AIR BLEED JET
    SCREW, IDLE AIR BLEED JET
  • 19
    NSS NOT SOLD SEPARATE, Gasket-Bleed Jet Plug
    NOT SOLD SEPARATE, Gasket-Bleed Jet Plug
  • 20
    1399-5213 JET, Main (.056), IKLE AIR BLEED (WH-33)
    JET, Main (.056), IKLE AIR BLEED (WH-33)
  • 20
    1395-7831 JET, Main Fuel (.058), IDLE AIR BLEED (.058) (WH-32)
    JET, Main Fuel (.058), IDLE AIR BLEED (.058) (WH-32)
  • 20
    1395-6487 JET, Main (.060), IKLE AIR BLEED (WH-35)
    JET, Main (.060), IKLE AIR BLEED (WH-35)
  • 20
    1399-5317 JET, (.046), IDLE AIR BLEED (WH-38)
    JET, (.046), IDLE AIR BLEED (WH-38)
  • 20
    1395-6246 JET, (.048), IDLE AIR BLEED (WH-40)
    JET, (.048), IDLE AIR BLEED (WH-40)
  • 21
    1395-6027 SCREW, THROTTLE LEVER
    SCREW, THROTTLE LEVER
  • 22
    67752 LEVER, THROTTLE
    LEVER, THROTTLE
  • 23
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 24
    1395-6031 SPACER, THROTTLE LEVER
    SPACER, THROTTLE LEVER
  • 25
    1395-6022 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 26
    NSS NOT SOLD SEPARATE, Ring-Retainer-Throttle Shaft
    NOT SOLD SEPARATE, Ring-Retainer-Throttle Shaft
  • 27
    1395-6023 VALVE, Throttle (WH-33) (WH-40)
    VALVE, Throttle (WH-33) (WH-40)
  • 27
    1395-9496 VALVE, Throttle (WH-32)
    VALVE, Throttle (WH-32)
  • 27
    1395-9545 VALVE, Throttle (WH-38) (WH-35)
    VALVE, Throttle (WH-38) (WH-35)
  • 28
    NSS NOT SOLD SEPARATE, Screw-Throttle Valve
    NOT SOLD SEPARATE, Screw-Throttle Valve
  • -
    1395-6452 GASKET KIT
    GASKET KIT
  • -
    1395-8506 REPAIR KIT, Carburetor (WH-33) (WH-40)
    REPAIR KIT, Carburetor (WH-33) (WH-40)
  • -
    1395-7826 REPAIR KIT (WH-32)(WH-35)(WH-38)
    REPAIR KIT (WH-32)(WH-35)(WH-38)
