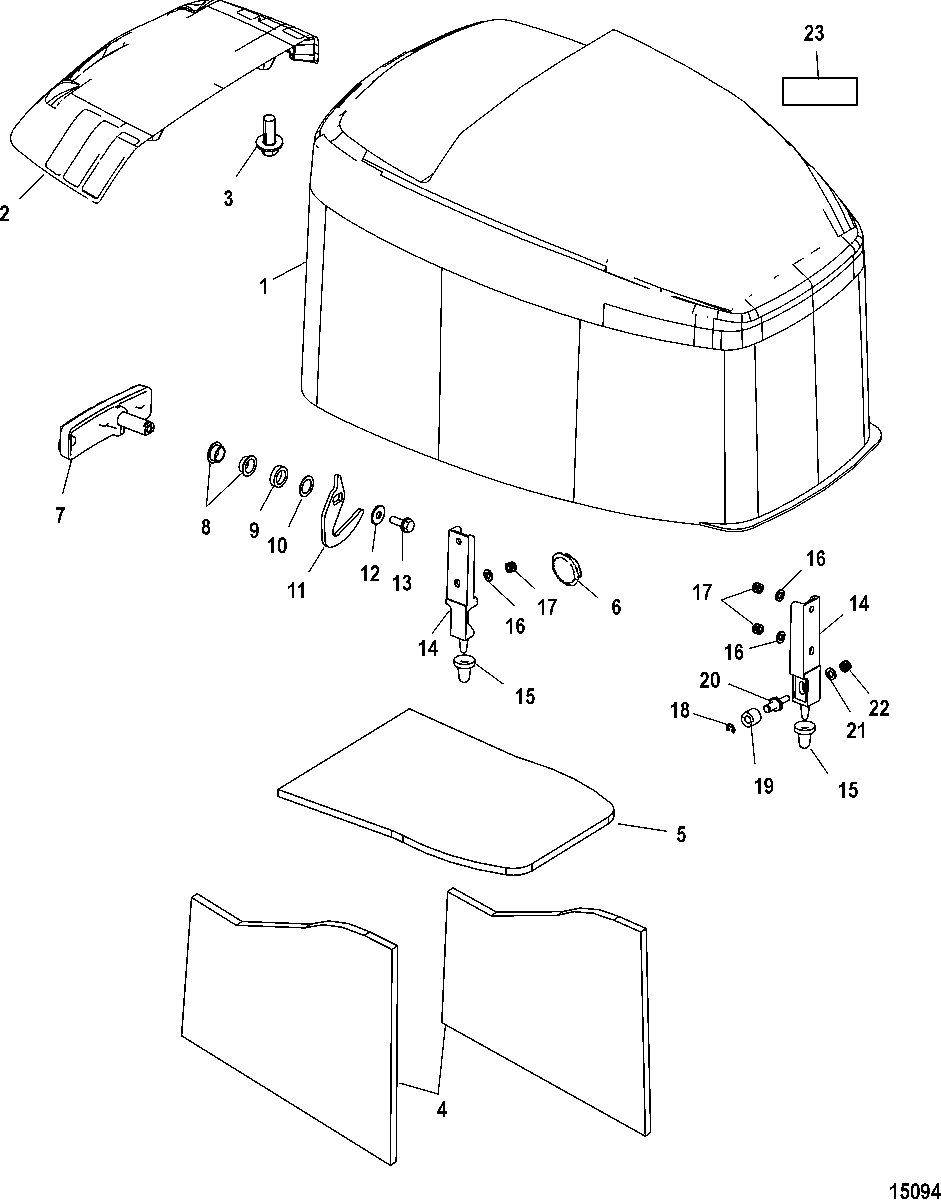

Top Cowl для Mariner - V-150 EFI (2.5L) 1B227000 & Up

  • №
    Артикул
    Название
  • 1
    100-8M0107145 TOP COWL ASSEMBLY, Black
    (Black)
    TOP COWL ASSEMBLY, Black
    (Black)
  • 1
    4021-827328T8 TOP COWL ASSEMBLY, Silver
    (Silver)
    TOP COWL ASSEMBLY, Silver
    (Silver)
  • 2
    821256T03 INLET, Air - Black
    (Black) SN# 1B417701 & Below
    INLET, Air - Black
    (Black) SN# 1B417701 & Below
  • 2
    821256T03 INLET, Air
    SN# 1B417702 & Up
    INLET, Air
    SN# 1B417702 & Up
  • 2
    821256T2 INLET, Air - Silver
    (Silver)
    INLET, Air - Silver
    (Silver)
  • 3
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 4
    828344A02 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 5
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    NOT SOLD SEPARATE, Sound Blanket-Top
  • 6
    19-823865 CAP PLUG
    CAP PLUG
  • 7
    831207A16 HANDLE ASSEMBLY, Black
    (Black) SN# 1B417701 & Below
    HANDLE ASSEMBLY, Black
    (Black) SN# 1B417701 & Below
  • 7
    831207A16 HANDLE KIT, Cowl Latch
    SN# 1B417702 & Up
    HANDLE KIT, Cowl Latch
    SN# 1B417702 & Up
  • 7
    831207A16 HANDLE ASSEMBLY, Silver
    (Silver)
    HANDLE ASSEMBLY, Silver
    (Silver)
  • 8
    23-812707 BUSHING
    BUSHING
  • 9
    23-831214 SPACER
    SPACER
  • 10
    13-12134 WASHER, Wave
    WASHER, Wave
  • 11
    8M0001081 CAM
    CAM
  • 12
    12-4002316 WASHER
    WASHER
  • 13
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 14
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 15
    815477 BUMPER, Latch
    BUMPER, Latch
  • 16
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 17
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 18
    53-8237951 RING, Retaining
    RING, Retaining
  • 19
    815263 ROLLER
    ROLLER
  • 20
    8155381 PIN, Roll
    PIN, Roll
  • 21
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 22
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 23
    NSS NOT SOLD SEPARATE, Decal-Starting Procedure
    NOT SOLD SEPARATE, Decal-Starting Procedure
  • -
    37-8M0114985 DECAL SET
    (Mercury 150)
    DECAL SET
    (Mercury 150)
  • -
    37-8M0114985 DECAL SET
    (Mercury 200)
    DECAL SET
    (Mercury 200)
  • -
    37-809706A03 DECAL SET
    (Mariner 150)
    DECAL SET
    (Mariner 150)
  • -
    37-808561A03 DECAL SET
    (Mariner 200)
    DECAL SET
    (Mariner 200)
