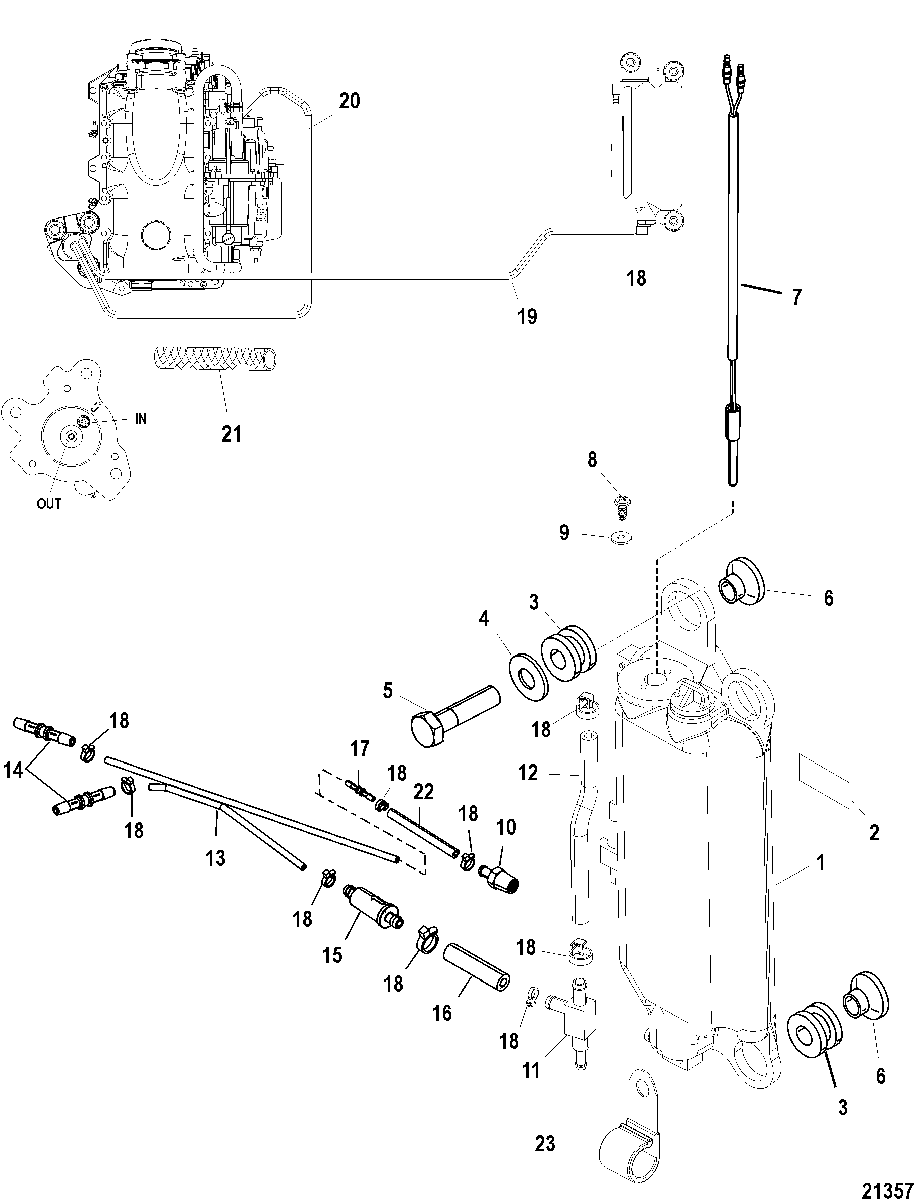

Oil Tank для Mariner - V-150 EFI (2.5L) 1B227000 & Up

  • №
    Артикул
    Название
  • -
    1200-8M0063190 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • 1
    NSS NOT SOLD SEPARATE, Oil Reservoir
    NOT SOLD SEPARATE, Oil Reservoir
  • 2
    NSS NOT SOLD SEPARATE, Decal-Reservoir
    NOT SOLD SEPARATE, Decal-Reservoir
  • 3
    25-855362001 GROMMET
    GROMMET
  • 4
    12-49436 WASHER
    WASHER
  • 5
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 6
    23-855364 BUSHING
    BUSHING
  • 7
    87-856156T02 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 8
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 9
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 10
    21-8781051 CHECK VALVE, To Block
    CHECK VALVE, To Block
  • 11
    22-424254 FITTING
    FITTING
  • 12
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)
  • 13
    32-875289 HOSE
    HOSE
  • 14
    22-858955 CONNECTOR
    CONNECTOR
  • 15
    35-875284T01 FILTER, Oil - In Line
    FILTER, Oil - In Line
  • 16
    32-875283 HOSE, (2.00 Inches)
    HOSE, (2.00 Inches)
  • 17
    22-858955 CONNECTOR
    CONNECTOR
  • 18
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 19
    32-8M0054213 HOSE, (40.00 Inches Bulk)
    HOSE, (40.00 Inches Bulk)
  • 20
    32-883354 HOSE
    HOSE
  • 21
    32-883357 CONDUIT
    CONDUIT
  • 22
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 4.75 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 4.75 Inches)
  • 23
    54-814634 CLAMP
    CLAMP
  • -
    883511T04 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    883600T04 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
