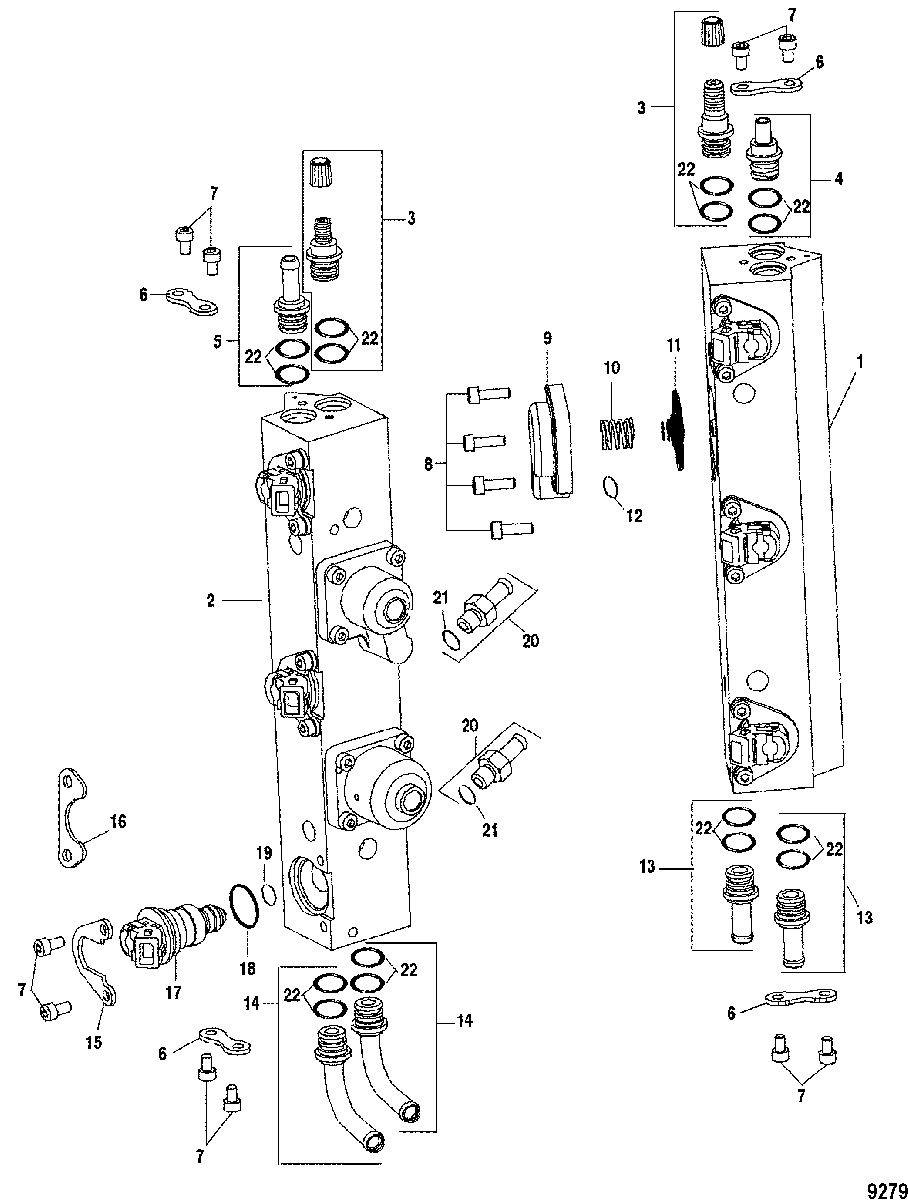

Fuel Rail Components для Mariner - V-150 DFI (2.5L) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    852379T6 FUEL RAIL, Without Injectors (Starboard)
    FUEL RAIL, Without Injectors (Starboard)
  • 2
    852378T6 FUEL RAIL, Without Injectors (Port)
    FUEL RAIL, Without Injectors (Port)
  • 3
    804521 SCHRADER VALVE KIT (AIR AND FUEL)
    SCHRADER VALVE KIT (AIR AND FUEL)
  • 4
    804516 FITTING (AIR INLET)
    FITTING (AIR INLET)
  • 5
    804515 FITTING (FUEL INLET)
    FITTING (FUEL INLET)
  • 6
    804524 CLAMP (FITTING RETAINER)
    CLAMP (FITTING RETAINER)
  • 7
    10-8M0041100 SCREW PACKAGE, (M5 x 8) (2 Per)
    SCREW PACKAGE, (M5 x 8) (2 Per)
  • 8
    804526 SCREW PACKAGE, (M5 x 16) (2 Per)
    SCREW PACKAGE, (M5 x 16) (2 Per)
  • 9
    804535001 COVER (TRACKER VALVE)
    COVER (TRACKER VALVE)
  • 10
    24-804534 SPRING (TRACKER VALVE)
    SPRING (TRACKER VALVE)
  • 11
    804533 DIAPHRAGM ASSEMBLY (TRACKER VALVE)
    DIAPHRAGM ASSEMBLY (TRACKER VALVE)
  • 12
    25-804536 O-RING (TRACKER COVER)
    O-RING (TRACKER COVER)
  • 13
    804520 FITTING (AIR/FUEL) STARBOARD
    FITTING (AIR/FUEL) STARBOARD
  • 14
    804519 FITTING (AIR/FUEL) PORT
    FITTING (AIR/FUEL) PORT
  • 15
    804522 CLAMP (INJECTOR) DESIGN II
    CLAMP (INJECTOR) DESIGN II
  • 16
    804523 RETAINER (INJECTOR) DESIGN I
    RETAINER (INJECTOR) DESIGN I
  • 17
    804527 INJECTOR (FUEL)
    INJECTOR (FUEL)
  • 18
    25-804530 O-RING KIT (LARGE) 6 PER KIT
    O-RING KIT (LARGE) 6 PER KIT
  • 19
    25-804529 O-RING KIT (SMALL) 6 PER KIT
    O-RING KIT (SMALL) 6 PER KIT
  • 20
    804517 FITTING
    FITTING
  • 21
    25-804531 O-RING (2 PER KIT)
    O-RING (2 PER KIT)
  • 22
    804532 O-RING KIT (16 PER KIT)
    O-RING KIT (16 PER KIT)
