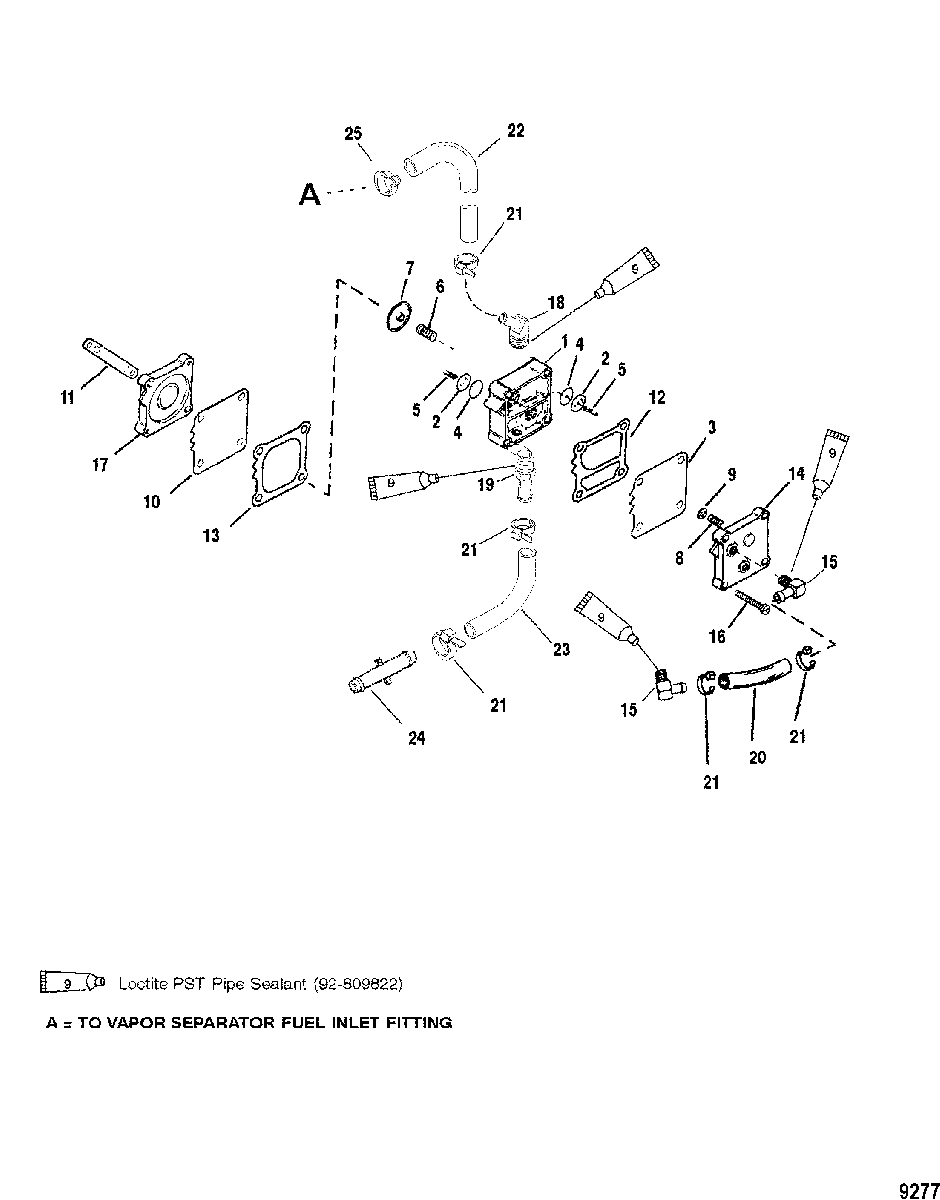

Fuel Pump для Mariner - V-150 DFI (2.5L) 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    14360T75 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Check Valve-Rubber
    NOT SOLD SEPARATE, Check Valve-Rubber
  • 5
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 6
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 7
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 8
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 9
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 10
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 11
    27-987691 GASKET
    GASKET
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 13
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 14
    987752 PLATE
    PLATE
  • 15
    22-996642 ELBOW
    ELBOW
  • 16
    10-82104540 SCREW, (M5 x 40), Fuel Pump
    SCREW, (M5 x 40), Fuel Pump
  • 16
    10-82130050 SCREW, (M6 x 50), Pump to Crankcase
    SCREW, (M6 x 50), Pump to Crankcase
  • 17
    144303 BASE
    BASE
  • 18
    22-782792 ELBOW (45 DEGREES)
    ELBOW (45 DEGREES)
  • 19
    22-291112 FITTING
    FITTING
  • 20
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches)
  • 21
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 22
    32-8M0064784 TUBING (W/INSULATING SLEEVE) (7 IN.)
    TUBING (W/INSULATING SLEEVE) (7 IN.)
  • 23
    32-8M0043979 HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) (W/INSULATING SLEEVE) (18 IN.)
    HOSE AND SLEEVE ASSEMBLY, (18.00 Inches) (W/INSULATING SLEEVE) (18 IN.)
  • 24
    22-822769 CONNECTOR
    CONNECTOR
  • 25
    54-856880 CLAMP, Hose (15.3)
    CLAMP, Hose (15.3)
  • -
    27-8M0046714 GASKET SET
    GASKET SET
  • -
    804545R99 POWERHEAD ASSEMBLY
    SN# 0G886267 & Up
    POWERHEAD ASSEMBLY
    SN# 0G886267 & Up
  • -
    804545R99 POWERHEAD ASSEMBLY
    SN# 0G886266 & Below
    POWERHEAD ASSEMBLY
    SN# 0G886266 & Below
