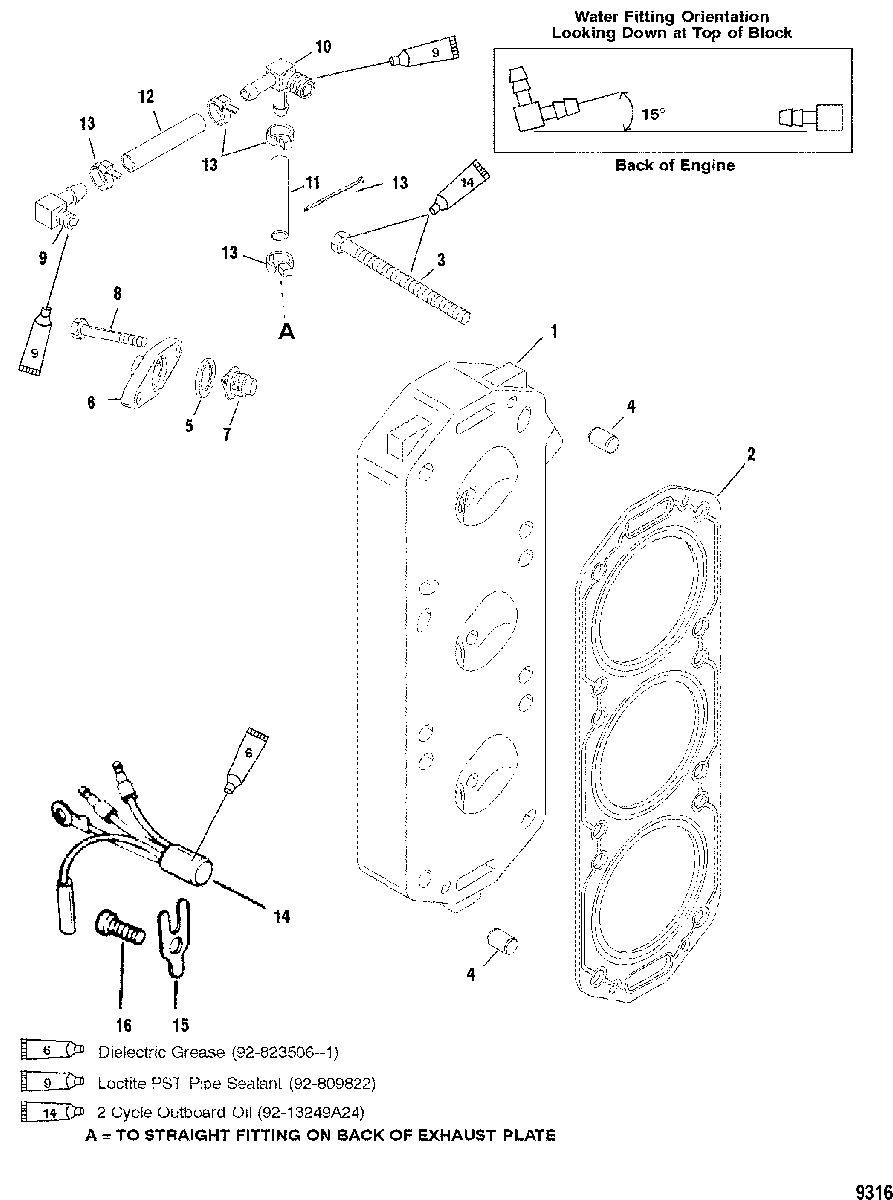

Cylinder Head для Mariner - V-150 DFI (2.5L) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    852380T1 CYLINDER HEAD
    (PORT)
    CYLINDER HEAD
    (PORT)
  • 1
    852381T1 CYLINDER HEAD
    (STARBOARD)
    CYLINDER HEAD
    (STARBOARD)
  • 2
    27-8525203 GASKET
    GASKET
  • 3
    10-832971 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 4
    17-74840 PIN, Dowel
    PIN, Dowel
  • 5
    27-62386001 GASKET
    GASKET
  • 6
    8M0039353 COVER
    COVER
  • 7
    833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
    THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
  • 8
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 9
    22-687271 FITTING, (.250-18) 90 Degree - Brass (Starboard)
    FITTING, (.250-18) 90 Degree - Brass (Starboard)
  • 10
    22-68728 FITTING (Port)
    FITTING (Port)
  • 11
    32-77653101 HOSE, (59.00 Inches Bulk) (21-1/2 IN.)
    HOSE, (59.00 Inches Bulk) (21-1/2 IN.)
  • 12
    32-77653101 HOSE, (59.00 Inches Bulk) (11-1/2 IN.)
    HOSE, (59.00 Inches Bulk) (11-1/2 IN.)
  • 13
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 14
    13536A14 SENSOR ASSEMBLY, Temperature (Starboard)
    SENSOR ASSEMBLY, Temperature (Starboard)
  • 15
    137151 RETAINER
    RETAINER
  • 16
    10-81893412 SCREW, (M8 x 12)
    SCREW, (M8 x 12)
  • -
    27-8M0046714 GASKET SET
    GASKET SET
  • -
    804545R99 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
