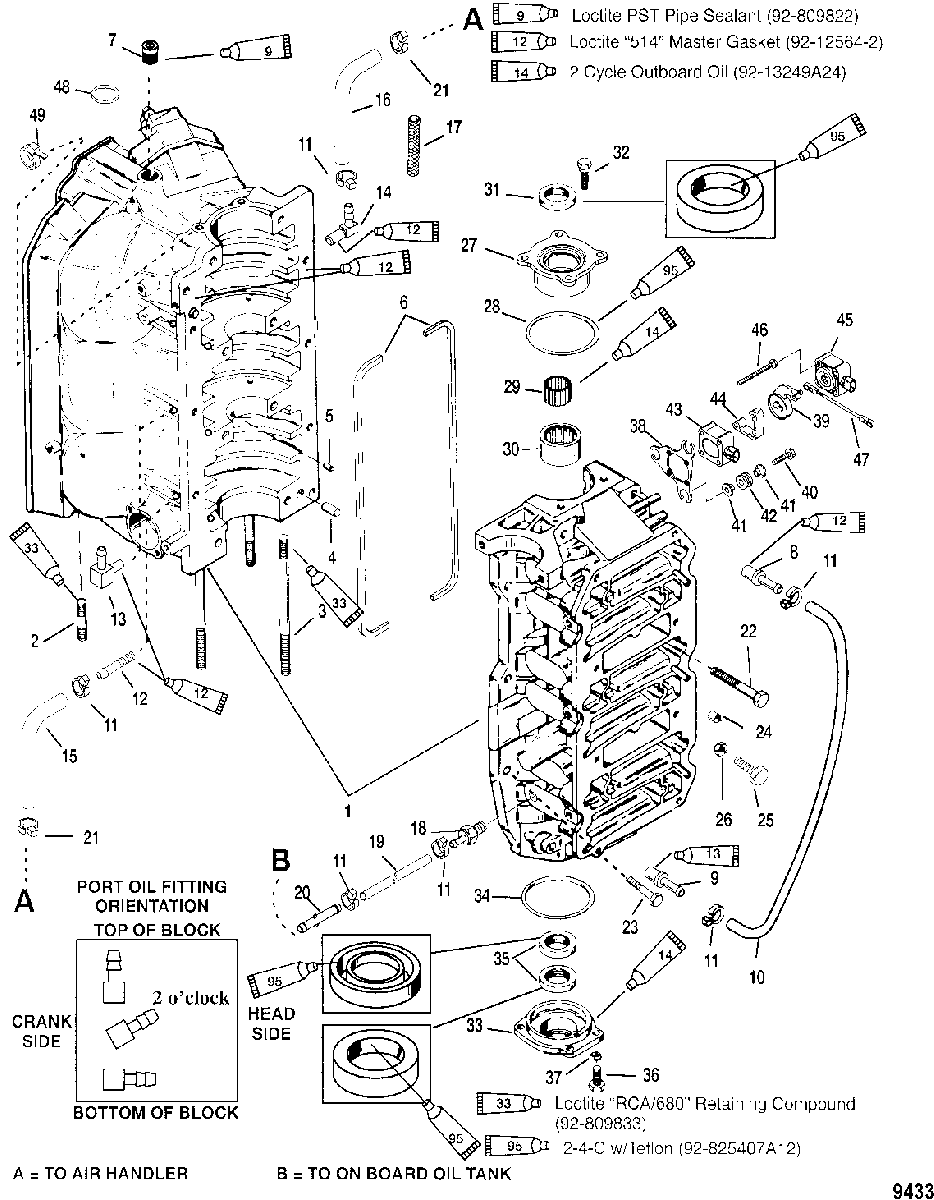

Cylinder Block and End Caps для Mariner - V-150 DFI (2.5L) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    884-828340A14 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    16-8M0034455 STUD, Powerhead (1-3/4 IN.)
    STUD, Powerhead (1-3/4 IN.)
  • 3
    16-670654 STUD, (.375 x 5.620) (5-1/2 IN.)
    STUD, (.375 x 5.620) (5-1/2 IN.)
  • 3
    16-8M0034454 STUD, (.375 x 6.870) (6-3/4 IN.)
    STUD, (.375 x 6.870) (6-3/4 IN.)
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 5
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 6
    27-11338 GASKET
    GASKET
  • 7
    22-384071 FITTING (1/2-14)
    FITTING (1/2-14)
  • 8
    21-426233 CHECK VALVE
    CHECK VALVE
  • 9
    21-426982 CHECK VALVE
    CHECK VALVE
  • 10
    32-892024122 TUBING, (20.00 Feet Bulk) (Cut to 19 Inches)
    TUBING, (20.00 Feet Bulk) (Cut to 19 Inches)
  • 11
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 12
    22-852760 FITTING (STRAIGHT)
    (STARBOARD - TOP/BOTTOM)
    FITTING (STRAIGHT)
    (STARBOARD - TOP/BOTTOM)
  • 13
    22-855622 FITTING (ELBOW)
    (STARBOARD - CENTER)
    FITTING (ELBOW)
    (STARBOARD - CENTER)
  • 14
    22-8267611 ELBOW (ELBOW)
    (PORT)
    ELBOW (ELBOW)
    (PORT)
  • 15
    32-8M0054213 TUBING (16 IN.)
    (TOP/BOTTOM)
    TUBING (16 IN.)
    (TOP/BOTTOM)
  • 15
    32-8M0054213 TUBING (20 IN.)
    (CENTER)
    TUBING (20 IN.)
    (CENTER)
  • 16
    32-8M0054152 TUBING, (36.00 Inches Bulk) (24-1/2 IN.)
    TUBING, (36.00 Inches Bulk) (24-1/2 IN.)
  • 17
    32-828547753 CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)
    CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk) (Cut to 7 Inches)
  • 18
    21-8781051 CHECK VALVE
    CHECK VALVE
  • 19
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 11-1/2 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 11-1/2 Inches)
  • 20
    22-822769 CONNECTOR
    CONNECTOR
  • 21
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 22
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 23
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 24
    26852 CAP, Nylon
    CAP, Nylon
  • 25
    10-856832 SCREW, (.250-20 x 1.750)
    SCREW, (.250-20 x 1.750)
  • 26
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 27
    1159-832760T1 END CAP ASSEMBLY, Upper
    END CAP ASSEMBLY, Upper
  • 28
    25-54029 O-RING, (2.800 x .103)
    O-RING, (2.800 x .103)
  • 29
    31-16756A4 BEARING KIT
    BEARING KIT
  • 30
    NSS NOT SOLD SEPARATE, Bearing Race
    NOT SOLD SEPARATE, Bearing Race
  • 31
    26-41953 SEAL
    SEAL
  • 32
    10-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)
    SCREW AND LOCKWASHER, (.312-18 x 1.00)
  • 33
    1156-7809T1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 34
    25-62700 O-RING, (3.237 x .103)
    O-RING, (3.237 x .103)
  • 35
    26-41953 SEAL
    SEAL
  • 36
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 37
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 38
    8538821 BRACKET
    BRACKET
  • 39
    8519371 LEVER, Throttle Position Indicator
    LEVER, Throttle Position Indicator
  • 40
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 41
    23-8318701 BUSHING
    BUSHING
  • 42
    25-834985 GROMMET
    GROMMET
  • 43
    8M6005165 INDICATOR, Throttle Position (Inside)
    INDICATOR, Throttle Position (Inside)
  • 44
    850882 SPACER
    SPACER
  • 45
    8M6005166 INDICATOR, Throttle Position (Outside)
    INDICATOR, Throttle Position (Outside)
  • 46
    10-850828 SCREW (#10-32 X 2-3/4 IN.)
    SCREW (#10-32 X 2-3/4 IN.)
  • 47
    8M0084738 LINK, Throttle
    LINK, Throttle
  • 48
    NSS NOT SOLD SEPARATE, Plug-Serial Number
    NOT SOLD SEPARATE, Plug-Serial Number
  • 49
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • -
    27-8M0046714 GASKET SET
    GASKET SET
  • -
    804545R99 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
