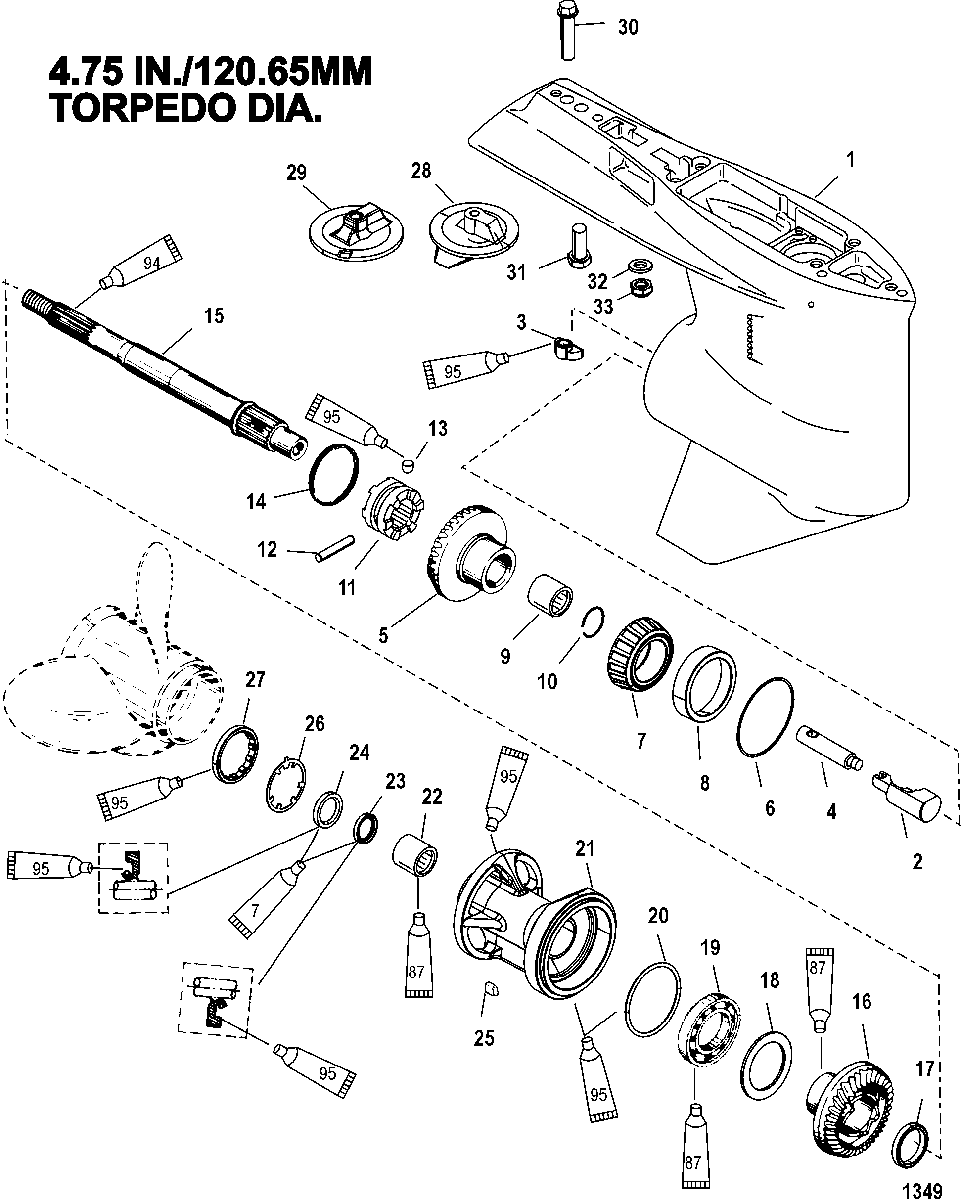

Gear Housing, Propeller Shaft - Standard Rotation для Mariner - V-135 0G960500 THRU 0T178499

№

Артикул

Название
-

1647-9148T84 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(LONG - 1.87:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(LONG - 1.87:1)

349 780 ₽
-

1647-9148T85 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-LONG - 1.87:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-LONG - 1.87:1)

349 750 ₽
-

1647-9148T81 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(LONG - 2:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(LONG - 2:1)

348 590 ₽
-

1647-9148T82 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-LONG - 2:1)

GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-LONG - 2:1)

348 570 ₽
1

1647-9148T93 GEAR HOUSING ASSEMBLY, Basic

GEAR HOUSING ASSEMBLY, Basic

159 330 ₽
2

89594A1 FOLLOWER ASSEMBLY

FOLLOWER ASSEMBLY

25 340 ₽
3

789562 SHIFT CAM

SHIFT CAM

1 070 ₽
4

828287 ROD

ROD

6 160 ₽
5

43-803615T2 GEAR ASSEMBLY, Forward 1.87:1 - 15/28
(1.87:1 Gear Ratio) SN# 0T979999 & Below

GEAR ASSEMBLY, Forward 1.87:1 - 15/28
(1.87:1 Gear Ratio) SN# 0T979999 & Below

52 500 ₽
5

43-803615T2 GEAR ASSEMBLY, Pinion/Forward
(1.87:1 Gear Ratio) SN# 0T980000 & Up

GEAR ASSEMBLY, Pinion/Forward
(1.87:1 Gear Ratio) SN# 0T980000 & Up

52 500 ₽
5

43-803612T2 GEAR ASSEMBLY, Forward 2:1 - 14/28
(2:1 Gear Ratio) SN# 0T979999 & Below

GEAR ASSEMBLY, Forward 2:1 - 14/28
(2:1 Gear Ratio) SN# 0T979999 & Below

62 250 ₽
5

43-803612T2 GEAR ASSEMBLY, Pinion/Forward
(2:1 Gear Ratio) SN# 0T980000 & Up

GEAR ASSEMBLY, Pinion/Forward
(2:1 Gear Ratio) SN# 0T980000 & Up

62 250 ₽
6

15-8M0063266 SHIM SET

SHIM SET

4 440 ₽
7

31-30894A1 BEARING SET, Cup And Cone

BEARING SET, Cup And Cone

8 380 ₽
8

NSS NOT SOLD SEPARATE, Cup

NOT SOLD SEPARATE, Cup

0 ₽
9

31-30895T BEARING, Needle

BEARING, Needle

1 550 ₽
10

53-856823 RING, Retaining

RING, Retaining

810 ₽
11

52-859340T CLUTCH

CLUTCH

27 490 ₽
12

17-8M0100263 PIN, Cross

PIN, Cross

330 ₽
13

17-828356 PIN, Detent

PIN, Detent

740 ₽
14

24-30893 SPRING

SPRING

220 ₽
15

44-94148 PROPELLER SHAFT

PROPELLER SHAFT

75 480 ₽
16

43-828175A1 GEAR ASSEMBLY, Reverse - 15/28
(1.87:1 Gear Ratio)

GEAR ASSEMBLY, Reverse - 15/28
(1.87:1 Gear Ratio)

47 670 ₽
16

43-828177A1 GEAR ASSEMBLY, Reverse - 14/28
(2:1 Gear Ratio)

GEAR ASSEMBLY, Reverse - 14/28
(2:1 Gear Ratio)

54 310 ₽
17

23-824108 SPACER

SPACER

330 ₽
18

681001 RING, Thrust

RING, Thrust

810 ₽
19

30-88957T BEARING, Ball

BEARING, Ball

4 510 ₽
20

25-31534 O-RING

O-RING

570 ₽
21

43567T1 CARRIER ASSEMBLY, Bearing

CARRIER ASSEMBLY, Bearing

25 260 ₽
22

31-30956T BEARING, Needle

BEARING, Needle

1 350 ₽
23

26-14077 SEAL, Oil (INSIDE)

SEAL, Oil (INSIDE)

1 970 ₽
24

26-76868 SEAL (OUTSIDE)

SEAL (OUTSIDE)

950 ₽
25

28-30281 KEY

KEY

220 ₽
26

14-79447 TAB WASHER

TAB WASHER

1 240 ₽
27

8M2000347 RETAINER

RETAINER

3 640 ₽
28

31640T07 TRIM TAB

TRIM TAB

3 420 ₽
29

97-76214Q5 ANODE KIT

ANODE KIT

1 930 ₽
30

10-806327 SCREW, (.437-14 x 1.750)

SCREW, (.437-14 x 1.750)

520 ₽
31

10-65210 SCREW, (.375-16 x 1.00)

SCREW, (.375-16 x 1.00)

210 ₽
32

12-45176 WASHER, (.453 x .812 x .105) Stainless Steel

WASHER, (.453 x .812 x .105) Stainless Steel

130 ₽
33

11-34933 NUT, (.437-20) Stainless Steel

NUT, (.437-20) Stainless Steel

440 ₽
-

26-89238A2 SEAL KIT

SEAL KIT

8 330 ₽
-

52-803491T1 FOLLOWER ASSEMBLY, Clutch/Cam

FOLLOWER ASSEMBLY, Clutch/Cam

35 290 ₽
-

31-803033T1 BEARING AND SEAL KIT (W/O Foward Bearing)

BEARING AND SEAL KIT (W/O Foward Bearing)

36 760 ₽
-

27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included

GASKET SET, Engine, Cylinder head o-rings and seal not included

21 370 ₽
