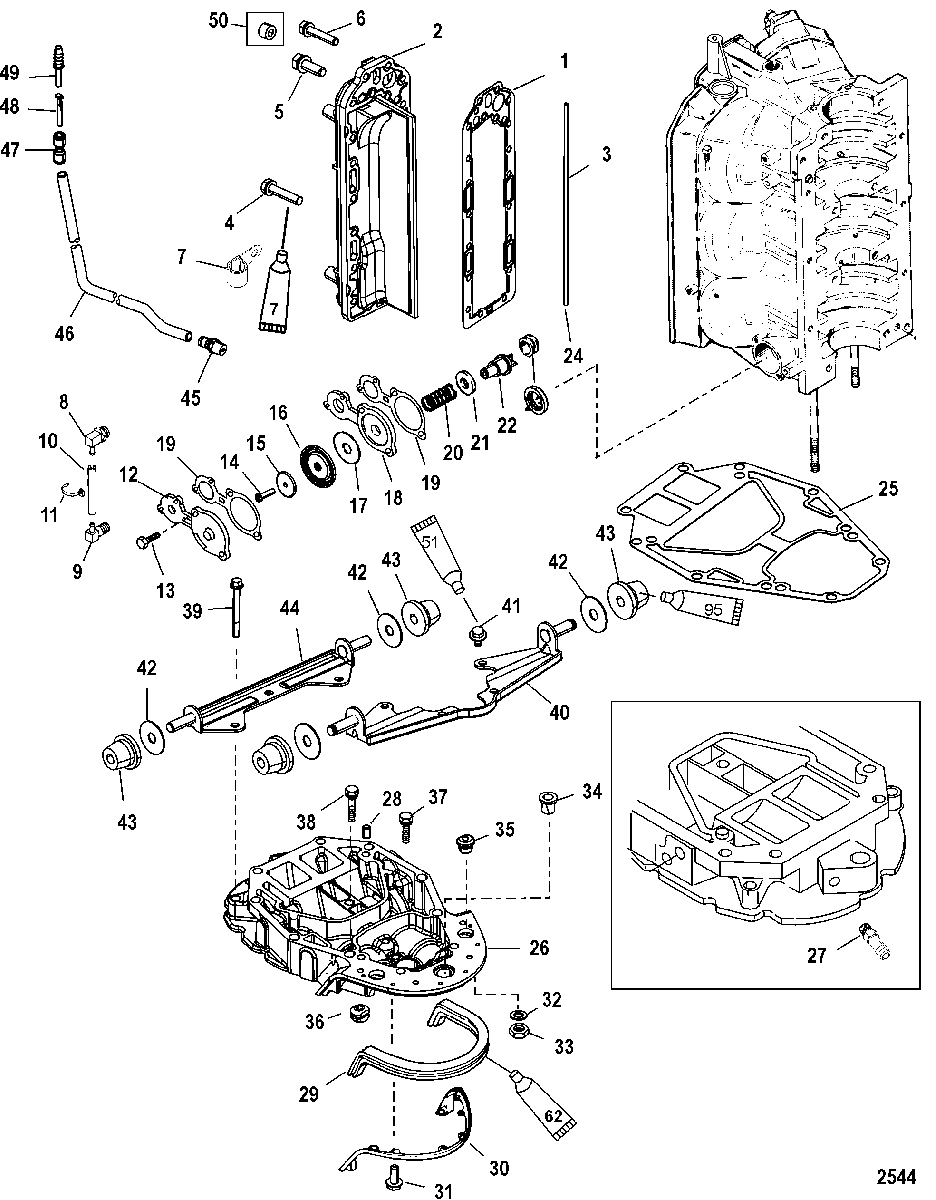

Exhaust Manifold and Exhaust Plate для Mariner - V-135 0G960500 THRU 0T178499

№

Артикул

Название
1

27-190506 GASKET

GASKET

3 340 ₽
2

828343T3 PLATE, Exhaust Divider

PLATE, Exhaust Divider

27 870 ₽
3

26-814754 SEAL, (12.50 Inches)

SEAL, (12.50 Inches)

790 ₽
4

10-8263561 SCREW AND WASHER, (.312-18 x 1.500)

SCREW AND WASHER, (.312-18 x 1.500)

150 ₽
5

10-881190 SCREW, (.312-18 x 1.00)

SCREW, (.312-18 x 1.00)

130 ₽
6

10-881892 SCREW, (.312-18 x 1.750)

SCREW, (.312-18 x 1.750)

270 ₽
7

54-814634 CLAMP

CLAMP

340 ₽
8

22-8144301 FITTING, To Block

FITTING, To Block

2 320 ₽
9

22-920071 FITTING, (90 Degree)

FITTING, (90 Degree)

3 790 ₽
10

32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 26 Inches)

HOSE, (57.00 Inches Bulk) (Cut to 26 Inches)

5 260 ₽
11

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)

40 ₽
12

8M0039767 COVER

COVER

5 170 ₽
13

10-31984 SCREW, (.312-18 x 1.375)

SCREW, (.312-18 x 1.375)

140 ₽
14

10-69570 SCREW, (#10-16 x .750)

SCREW, (#10-16 x .750)

150 ₽
15

12-76451 WASHER

WASHER

210 ₽
16

144791 DIAPHRAGM

DIAPHRAGM

1 530 ₽
17

16496 DEFLECTOR, Water

DEFLECTOR, Water

280 ₽
18

16497A1 PLATE

PLATE

3 820 ₽
19

27-78690002 GASKET
SN# 0T800999 & Below

GASKET
SN# 0T800999 & Below

250 ₽
19

27-78690002 GASKET
SN# 0T801000 & Up

GASKET
SN# 0T801000 & Up

250 ₽
20

24-64878 SPRING

SPRING

440 ₽
21

12-85303 WASHER

WASHER

140 ₽
22

14480 POPPET

POPPET

890 ₽
23

25-64872 GROMMET

GROMMET

260 ₽
24

65848 CARRIER

CARRIER

260 ₽
25

27-991764 GASKET

GASKET

1 340 ₽
26

18260T2 PLATE ASSEMBLY, Exhaust

PLATE ASSEMBLY, Exhaust

55 910 ₽
27

22-897722 FITTING, Straight

FITTING, Straight

490 ₽
28

17-43044 PIN, Dowel - Without Hole (.375 x .625)

PIN, Dowel - Without Hole (.375 x .625)

200 ₽
29

8M0043164 SEAL

SEAL

940 ₽
30

680101 BRACKET

BRACKET

830 ₽
31

10-878608 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)

120 ₽
32

12-20553 WASHER, (.406 x .734 x .063)

WASHER, (.406 x .734 x .063)

120 ₽
33

11-69254 NUT

NUT

430 ₽
34

23-27132 BUSHING

BUSHING

410 ₽
35

25-19565002 GROMMET
SN# 0T979999 & Below

GROMMET
SN# 0T979999 & Below

2 650 ₽
35

25-19565002 GROMMET
SN# 0T980000 & Up

GROMMET
SN# 0T980000 & Up

2 650 ₽
36

25-12602002 GROMMET
SN# 0T979999 & Below

GROMMET
SN# 0T979999 & Below

330 ₽
36

25-12602002 GROMMET
SN# 0T980000 & Up

GROMMET
SN# 0T980000 & Up

330 ₽
37

10-66727 SCREW, (.312-18 x 1.250)

SCREW, (.312-18 x 1.250)

220 ₽
38

10-68783 SCREW, (.312-18 x 2.50)

SCREW, (.312-18 x 2.50)

490 ₽
39

10-898833 SCREW, (.375-16 x 3.50)

SCREW, (.375-16 x 3.50)

820 ₽
40

812905T BRACKET ASSEMBLY, Front

BRACKET ASSEMBLY, Front

15 050 ₽
41

10-8055571 SCREW, (.3125-18 x .50)

SCREW, (.3125-18 x .50)

290 ₽
42

12-187031 WASHER

WASHER

380 ₽
43

25-18778001 GROMMET
SN# 0T979999 & Below

GROMMET
SN# 0T979999 & Below

820 ₽
43

25-18778001 GROMMET
SN# 0T980000 & Up

GROMMET
SN# 0T980000 & Up

820 ₽
44

18578T09 BRACKET ASSEMBLY, Rear

BRACKET ASSEMBLY, Rear

13 940 ₽
45

22-881866 FITTING
SN# 0T800999 & Below

FITTING
SN# 0T800999 & Below

560 ₽
45

22-881866 FITTING
SN# 0T801000 & Up

FITTING
SN# 0T801000 & Up

560 ₽
46

32-85978571 TUBING, (44.00 Inches Bulk) (44 Inches Required)

TUBING, (44.00 Inches Bulk) (44 Inches Required)

4 390 ₽
47

22-859747 COUPLER

COUPLER

760 ₽
48

22-859732 PLUG

PLUG

120 ₽
49

22-859731 FITTING, Adapter

FITTING, Adapter

460 ₽
50

22-185981 PLUG, Pipe (.375-18)
(Use where Applicable)

PLUG, Pipe (.375-18)
(Use where Applicable)

210 ₽
-

27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included

GASKET SET, Engine, Cylinder head o-rings and seal not included

21 370 ₽
-

812815R97 POWERHEAD ASSEMBLY
(135)

POWERHEAD ASSEMBLY
(135)

599 020 ₽
-

823434R00 POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)

POWERHEAD ASSEMBLY
(140/150/XR6/MAGNUM III)

659 980 ₽
-

813043R00 POWERHEAD ASSEMBLY
(200)

POWERHEAD ASSEMBLY
(200)

796 920 ₽
