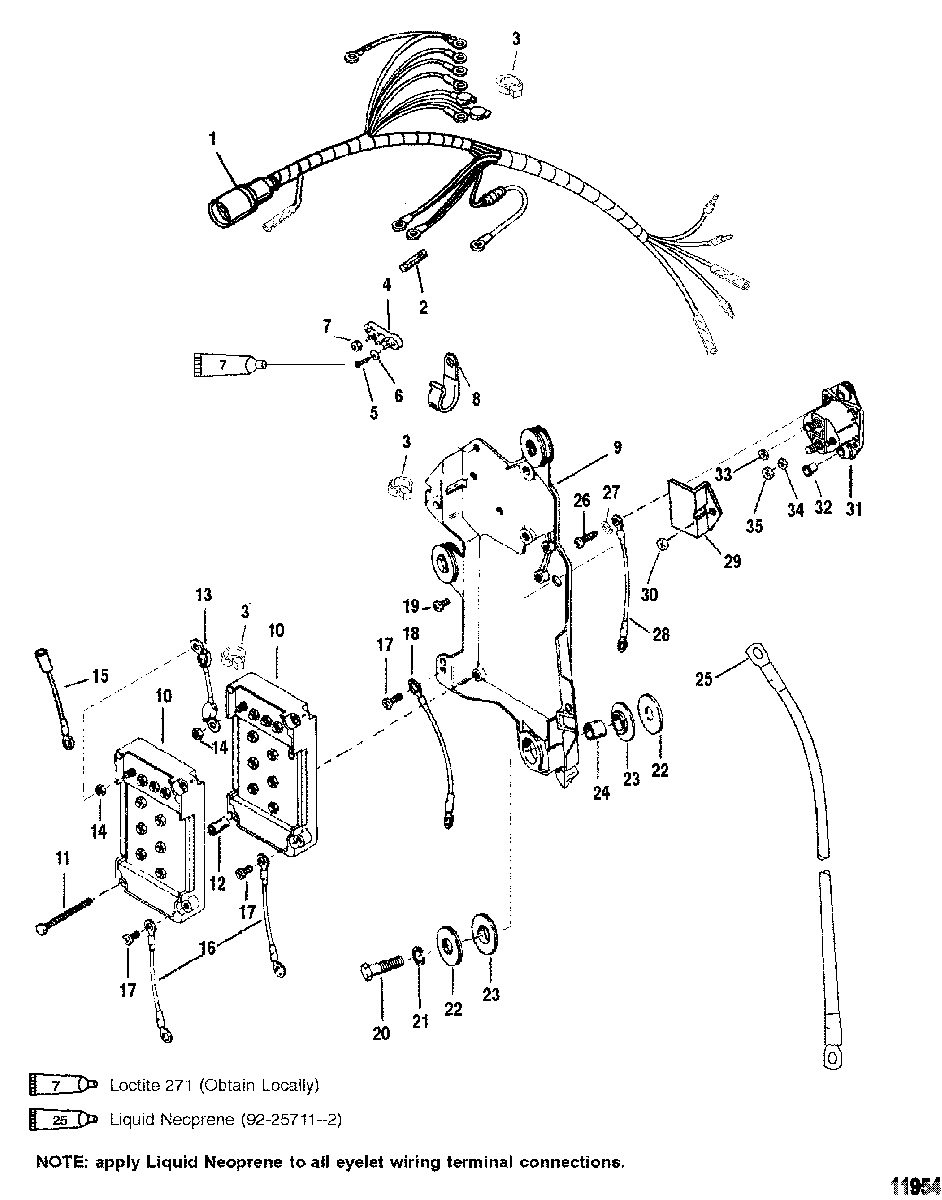

Wiring Harness/Starter Solenoid для Mariner - V-135 0G303046 THRU 0G760299
-
№АртикулНазвание
-
184-826730A4 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
288-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
486-194372 TERMINAL BLOCKTERMINAL BLOCK
-
510-38055 SCREW, (.190-32 x .620)SCREW, (.190-32 x .620)
-
612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
711-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
854-814634 CLAMPCLAMP
-
9434292 IGNITION PLATEIGNITION PLATE
-
10332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1110-13669 SCREW, (#12-24 x 2.00)SCREW, (#12-24 x 2.00)
-
1223-94453 BUSHINGBUSHING
-
1384-62310A2 CABLE ASSEMBLYCABLE ASSEMBLY
-
1411-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1584-91865A1 CABLE ASSEMBLY (3 Inch, White/Black)CABLE ASSEMBLY (3 Inch, White/Black)
-
1584-88528A2 CABLE ASSEMBLY (6 Inch, Red/White)CABLE ASSEMBLY (6 Inch, Red/White)
-
1684-60871A10 WIRE ASSEMBLYWIRE ASSEMBLY
-
1710-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
1884-65999A3 CABLE ASSEMBLY, Black, BlackCABLE ASSEMBLY, Black, Black
-
1910-87926 SCREW, (#10-32 x .500)SCREW, (#10-32 x .500)
-
2010-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2212-36042 WASHERWASHER
-
2312-67264 WASHER, (Rubber), RubberWASHER, (Rubber), Rubber
-
2423-67268 BUSHINGBUSHING
-
2584-88439A34 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2584-88439A24 CABLE ASSEMBLY, Negative - BatteryCABLE ASSEMBLY, Negative - Battery
-
2610-455611 SCREW, (.250-20 x 1.12)SCREW, (.250-20 x 1.12)
-
2713-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2884-65999A2 CABLE ASSEMBLY, Black, BlackCABLE ASSEMBLY, Black, Black
-
2985-78866 INSULATORINSULATOR
-
3011-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
3189-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
3223-818968 BUSHINGBUSHING
-
3311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
3413-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3511-68292 NUT, (.312-18)NUT, (.312-18)
