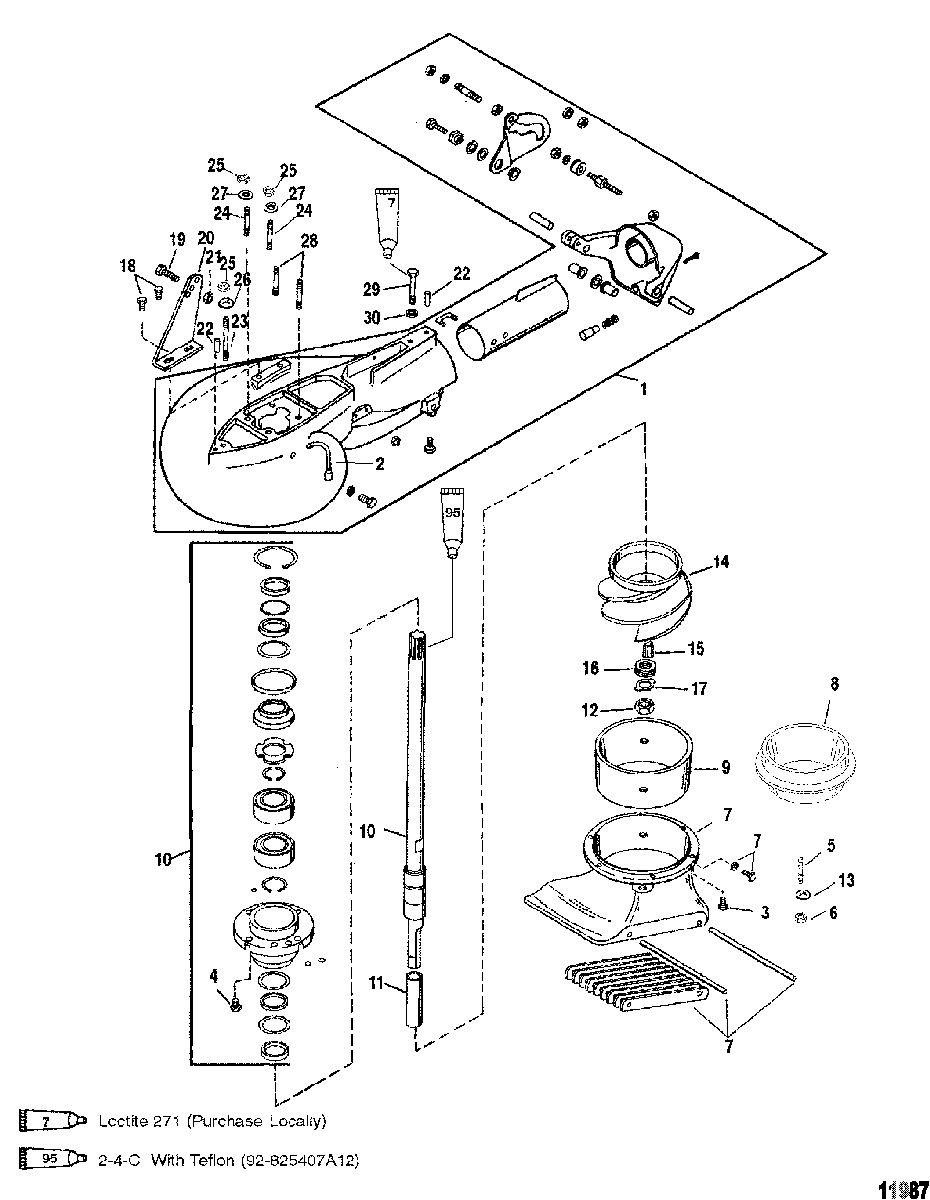

Jet Pump Assembly для Mariner - V-135 0G303046 THRU 0G760299

  • №
    Артикул
    Название
  • -
    855766150 JET PUMP
    (Black) SN# 0G605661 & Below
    JET PUMP
    (Black) SN# 0G605661 & Below
  • -
    855766150 JET PUMP
    (Gray) SN# 0G605661 & Below
    JET PUMP
    (Gray) SN# 0G605661 & Below
  • -
    855766150 JET PUMP
    (With Aluminum Impeller) SN# 0G605662 & Up
    JET PUMP
    (With Aluminum Impeller) SN# 0G605662 & Up
  • -
    856143A2 JET PUMP ASSEMBLY
    (Jet 105 - With Stainless Steel Impeller)
    JET PUMP ASSEMBLY
    (Jet 105 - With Stainless Steel Impeller)
  • -
    856143A3 JET PUMP ASSEMBLY
    (Jet 140 - With Stainless Steel Impeller)
    JET PUMP ASSEMBLY
    (Jet 140 - With Stainless Steel Impeller)
  • 1
    803145T HOUSING, Pump
    SN# 0G605662 & Up
    HOUSING, Pump
    SN# 0G605662 & Up
  • 1
    801411150 HOUSING, Pump
    SN# 0G605661 & Below
    HOUSING, Pump
    SN# 0G605661 & Below
  • 2
    32-827490 HOSE, Lube
    HOSE, Lube
  • 3
    10-848497 SCREW, (.312-18 x 1.00)
    SN# 0G605661 & Below
    SCREW, (.312-18 x 1.00)
    SN# 0G605661 & Below
  • 4
    10-19923088 SCREW, (.250-20 x .875)
    SCREW, (.250-20 x .875)
  • 4
    10-848497 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 5
    16-855840 STUD, (.312-18 x 1.81)
    SN# 0G605662 & Up
    STUD, (.312-18 x 1.81)
    SN# 0G605662 & Up
  • 6
    11-82670910 NUT, (.312-18)
    NUT, (.312-18)
  • 7
    85576890 HOUSING, Intake
    SN# 0G605662 & Up
    HOUSING, Intake
    SN# 0G605662 & Up
  • 7
    80141290 HOUSING, Intake
    SN# 0G605661 & Below
    HOUSING, Intake
    SN# 0G605661 & Below
  • 8
    855771 LINER
    SN# 0G605662 & Up
    LINER
    SN# 0G605662 & Up
  • 9
    8271883 LINER
    SN# 0G605661 & Below
    LINER
    SN# 0G605661 & Below
  • 10
    45-8M0084524 SHAFT, Drive
    SN# 0G605662 & Up
    SHAFT, Drive
    SN# 0G605662 & Up
  • 10
    45-801413150 SHAFT, Drive
    SN# 0G605661 & Below
    SHAFT, Drive
    SN# 0G605661 & Below
  • 11
    23-8271891 SLEEVE
    SLEEVE
  • 12
    11-8271901 NUT
    NUT
  • 13
    12-36001 WASHER
    WASHER
  • 14
    47-855770150 IMPELLER
    (Aluminum) SN# 0G605662 & Up
    IMPELLER
    (Aluminum) SN# 0G605662 & Up
  • 14
    47-803984T IMPELLER
    (Jet 105 - Stainless Steel)
    IMPELLER
    (Jet 105 - Stainless Steel)
  • 14
    47-803985T IMPELLER
    (Jet 140 - Stainless Steel)
    IMPELLER
    (Jet 140 - Stainless Steel)
  • 14
    47-803984T IMPELLER
    SN# 0G605661 & Below
    IMPELLER
    SN# 0G605661 & Below
  • 15
    28-801405875 KEY
    KEY
  • 16
    15-801404875 SHIM, Impeller
    SHIM, Impeller
  • 17
    14-801403875 TAB WASHER
    TAB WASHER
  • 18
    10-19923062 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 19
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 20
    801410 BRACKET, Cable Support
    BRACKET, Cable Support
  • 21
    11-82670910 NUT, (.312-18)
    NUT, (.312-18)
  • 22
    17-801407 PIN, Dowel
    PIN, Dowel
  • 23
    16-786382 STUD, (.437-14/.437-20 x 3.120)
    STUD, (.437-14/.437-20 x 3.120)
  • 24
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 25
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 26
    12-48926 WASHER
    WASHER
  • 27
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 28
    16-306671 STUD, (.250-20/.250-28 x 3.125)
    STUD, (.250-20/.250-28 x 3.125)
  • 29
    10-68299 SCREW, (.375-16 x 3.00) Stainless Steel
    SCREW, (.375-16 x 3.00) Stainless Steel
  • 30
    12-856774 WASHER, (.406 x .750 x .104)
    WASHER, (.406 x .750 x .104)
