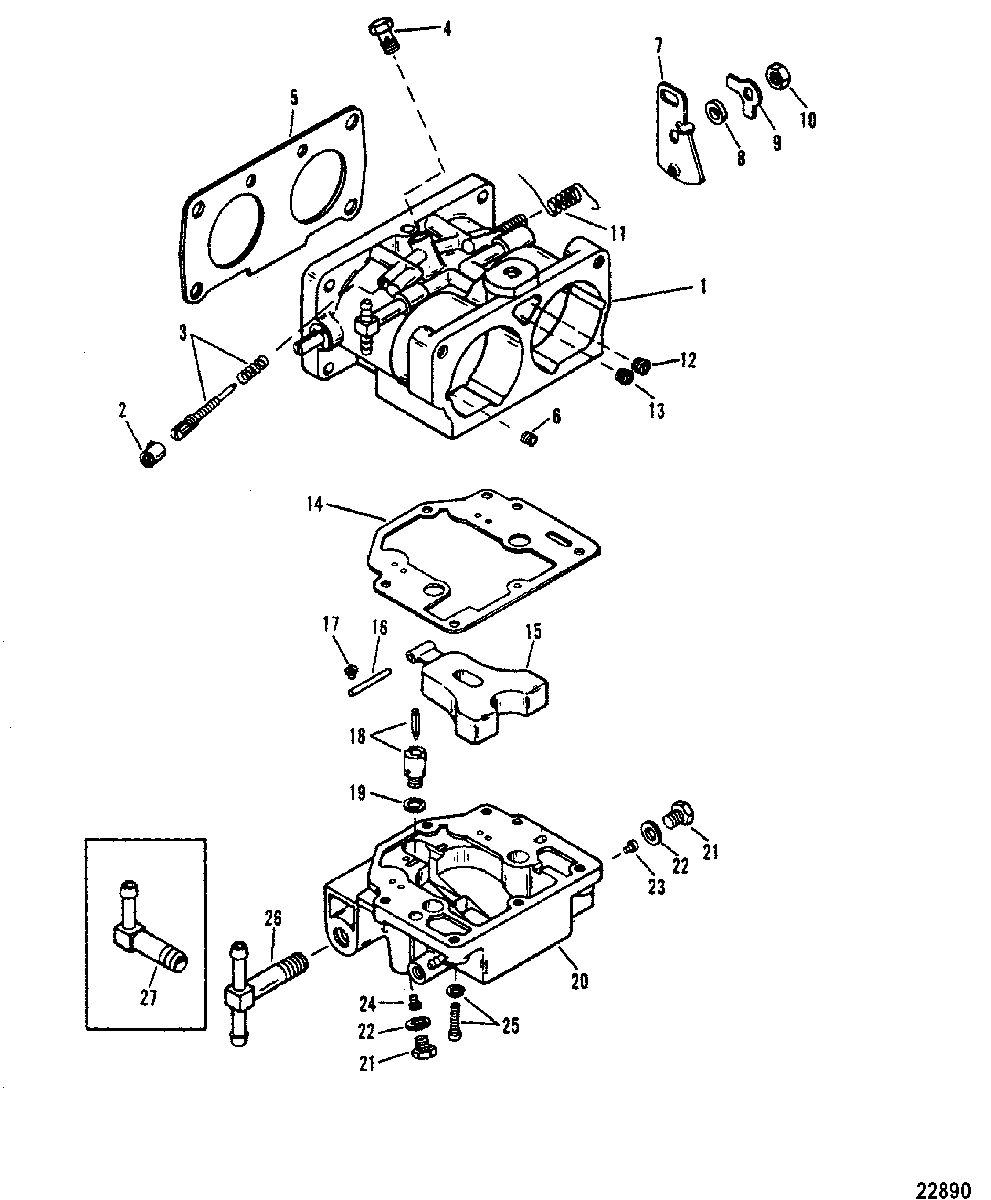

CARBURETOR(WMH - 12A/12B/13/13B/14A/15/16) для Mariner - V-135 0D082000 THRU 0G303045
-
№АртикулНазвание
-
13311-818650A28 CARBURETOR, Top
135 - WMH-12A/BCARBURETOR, Top
135 - WMH-12A/B -
13311-818650A29 CARBURETOR, Center
135 - WMH-12A/BCARBURETOR, Center
135 - WMH-12A/B -
13311-818650A55 CARBURETOR, Bottom
135 - WMH-12A/BCARBURETOR, Bottom
135 - WMH-12A/B -
13311-818650A31 CARBURETOR, Top
150 - WMH-13/BCARBURETOR, Top
150 - WMH-13/B -
13311-818650A32 CARBURETOR, Center
150 - WMH-13/BCARBURETOR, Center
150 - WMH-13/B -
13311-818650A56 CARBURETOR, Bottom
150 - WMH-13/BCARBURETOR, Bottom
150 - WMH-13/B -
13314-821684A1 CARBURETOR, Top
XR6/MAGNUM III - WMH-14ACARBURETOR, Top
XR6/MAGNUM III - WMH-14A -
13314-821684A2 CARBURETOR, Center
XR6/MAGNUM III - WMH-14ACARBURETOR, Center
XR6/MAGNUM III - WMH-14A -
13314-821684A3 CARBURETOR, Bottom
XR6/MAGNUM III - WMH-14ACARBURETOR, Bottom
XR6/MAGNUM III - WMH-14A -
13311-818650A37 CARBURETOR, Top
175 - WMH-15CARBURETOR, Top
175 - WMH-15 -
13311-818650A38 CARBURETOR, Center
175 - WMH-15CARBURETOR, Center
175 - WMH-15 -
13311-818650A58 CARBURETOR, Bottom
175 - WMH-15CARBURETOR, Bottom
175 - WMH-15 -
13311-818650A52 CARBURETOR, Top
200 - WMH-16CARBURETOR, Top
200 - WMH-16 -
13311-818650A53 CARBURETOR, Center
200 - WMH-16CARBURETOR, Center
200 - WMH-16 -
13311-818650A59 CARBURETOR, Bottom
200 - WMH-16CARBURETOR, Bottom
200 - WMH-16 -
2810779 CAPCAP
-
3NSS NOT SOLD SEPARATE, Idle Mixture Screw/SpringNOT SOLD SEPARATE, Idle Mixture Screw/Spring
-
41395-811803 PLUG, RetainerPLUG, Retainer
-
527-677511 GASKETGASKET
-
6815633048 JET, (.048)
(135/150)JET, (.048)
(135/150) -
6815633070 JET (.070 - 175)JET (.070 - 175)
-
6815633050 JET, (.050) (XR6/MAGNUM III/200)JET, (.050) (XR6/MAGNUM III/200)
-
7810721 LEVER, Throttle (TOP/CENTER)LEVER, Throttle (TOP/CENTER)
-
7810722 LEVER, Throttle (BOTTOM)LEVER, Throttle (BOTTOM)
-
81395-811284 SPACERSPACER
-
912-810745 WASHERWASHER
-
1011-810744 NUTNUT
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
121399-6249 JET, Main (.096)
(150)JET, Main (.096)
(150) -
121395-5815 JET, (.086)
(XR6/MAGNUM III)JET, (.086)
(XR6/MAGNUM III) -
121395-6201 JET, (.080)
(175)JET, (.080)
(175) -
121395-6247 JET, Main (.090)
(135/200)JET, Main (.090)
(135/200) -
131395-6246 JET, (.048)
(135)JET, (.048)
(135) -
131399-5317 JET, (.046)
(150)JET, (.046)
(150) -
131395-6359 JET, (.052)
(XR6/MAGNUM III/175/200)JET, (.052)
(XR6/MAGNUM III/175/200) -
14NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
15810738 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
16NSS NOT SOLD SEPARATE, Float ShaftNOT SOLD SEPARATE, Float Shaft
-
17NSS NOT SOLD SEPARATE, Screw-FloatNOT SOLD SEPARATE, Screw-Float
-
181395-8116901 VALVE SEAT KITVALVE SEAT KIT
-
19NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
201395-811687 BOWL, Fuel (TOP)BOWL, Fuel (TOP)
-
201395-811688 BOWL, Fuel (CENTER/BOTTOM)BOWL, Fuel (CENTER/BOTTOM)
-
211395-811694 PLUGPLUG
-
22NSS NOT SOLD SEPARATE, Gasket-Power/Progression JetNOT SOLD SEPARATE, Gasket-Power/Progression Jet
-
231399-5225 JET, Main (.054)
(XR6/MAGNUM III)JET, Main (.054)
(XR6/MAGNUM III) -
231399-4217 JET, Main (.062)
(150)JET, Main (.062)
(150) -
231399-4216 JET, (.064)
(135/175)JET, (.064)
(135/175) -
231399-4215 JET, Main Fuel (.066)
(200)JET, Main Fuel (.066)
(200) -
241395-811689 POWER JET
(135/150/200)POWER JET
(135/150/200) -
241395-811807 POWER JET
(XR6/MAGNUM III)POWER JET
(XR6/MAGNUM III) -
241395-811925 POWER JET
(175)POWER JET
(175) -
25NSS NOT SOLD SEPARATE, Screw-Fuel BowlNOT SOLD SEPARATE, Screw-Fuel Bowl
-
261395-7900 TEE FITTING (TOP/CENTER)TEE FITTING (TOP/CENTER)
-
271395-7901 ELBOW (BOTTOM)ELBOW (BOTTOM)
-
-8107492 GASKET KIT, CarburetorGASKET KIT, Carburetor
-
-1395-8116912 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
