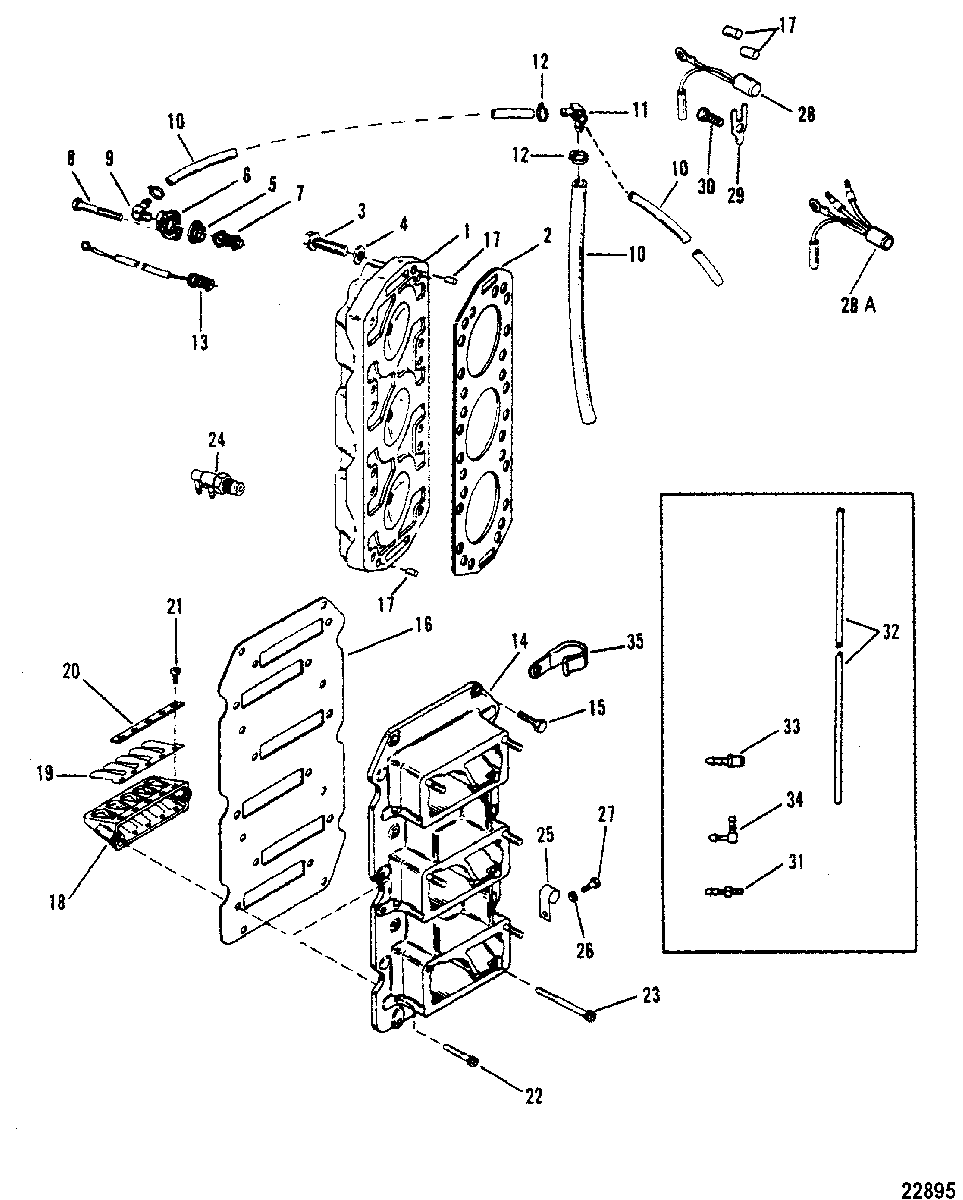

REED BLOCK AND CYLINDER HEAD для Mariner - V-135 0D082000 THRU 0G303045
-
№АртикулНазвание
-
118787A18 CYLINDER HEAD
135/150CYLINDER HEAD
135/150 -
1900-8M0143213 CYLINDER HEAD
XR6/MAGNUM III/TRACKER/175/200 SN# 0D262673 & BelowCYLINDER HEAD
XR6/MAGNUM III/TRACKER/175/200 SN# 0D262673 & Below -
1900-8M0143213 CYLINDER HEAD
XR6/MAGNUM III/TRACKER/175 SN# 0D262674 & UpCYLINDER HEAD
XR6/MAGNUM III/TRACKER/175 SN# 0D262674 & Up -
1900-8M0143213 CYLINDER HEAD
200 SN# 0G052594 & BelowCYLINDER HEAD
200 SN# 0G052594 & Below -
118488F2 CYLINDER HEAD ASSEMBLY
200 SN# 0G052595 & UpCYLINDER HEAD ASSEMBLY
200 SN# 0G052595 & Up -
227-18785T GASKET
135/150GASKET
135/150 -
227-822844T05 GASKET
XR6/MAGNUM III/TRACKER/175/200 SN# 0D262673 & BelowGASKET
XR6/MAGNUM III/TRACKER/175/200 SN# 0D262673 & Below -
227-822844T05 GASKET
XR6/MAGNUM III/TRACKER/175 SN# 0D262674 & UpGASKET
XR6/MAGNUM III/TRACKER/175 SN# 0D262674 & Up -
227-822844T05 GASKET
200 SN# 0D262674 & UpGASKET
200 SN# 0D262674 & Up -
310-98534 SCREW, (.375-16 x 2.30)SCREW, (.375-16 x 2.30)
-
412-25909 WASHER, (.406 x .812 x .065) (USE WHERE APPLICABLE)WASHER, (.406 x .812 x .065) (USE WHERE APPLICABLE)
-
527-62386001 GASKETGASKET
-
690390A1 COVER KITCOVER KIT
-
775692 THERMOSTATTHERMOSTAT
-
810-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
922-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
1032-77653101 HOSE, (24.500 Inches Bulk)HOSE, (24.500 Inches Bulk)
-
1122-68728 FITTINGFITTING
-
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1397465 SENDER, Temperature (STBD.)SENDER, Temperature (STBD.)
-
1443517A9 PLATE ASSEMBLYPLATE ASSEMBLY
-
1510-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
1627-146972 GASKETGASKET
-
1717-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
1875953 REED BLOCKREED BLOCK
-
1934-75362A1 REED ASSEMBLYREED ASSEMBLY
-
20961832 CLAMP, ReedCLAMP, Reed
-
2110-823588 SCREW, (#8-32 x .250)SCREW, (#8-32 x .250)
-
2210-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
2310-96529 SCREW, (.250-20 x 2.00)SCREW, (.250-20 x 2.00)
-
24814612 VALVE, Thermal Air (OLD DESIGN)VALVE, Thermal Air (OLD DESIGN)
-
2554-23567 CLIPCLIP
-
268M0084613 C WASHERC WASHER
-
2710-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2813536A7 SENSOR ASSEMBLY, Temperature (PORT) (2-WIRE)SENSOR ASSEMBLY, Temperature (PORT) (2-WIRE)
-
28A13536A6 SENSOR ASSEMBLY, Temperature (PORT) (4-WIRE)SENSOR ASSEMBLY, Temperature (PORT) (4-WIRE)
-
29137151 RETAINERRETAINER
-
3010-98257 SCREW, (.312-18 x .500)SCREW, (.312-18 x .500)
-
3122-56759 FITTING, BarbedFITTING, Barbed
-
3232-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
3321-426982 CHECK VALVE (PRESS-IN 13/16")CHECK VALVE (PRESS-IN 13/16")
-
3321-426233 CHECK VALVE (PRESS-IN 11/16")CHECK VALVE (PRESS-IN 11/16")
-
3422-822715 FITTING, Elbow (PRESS-IN)FITTING, Elbow (PRESS-IN)
-
3554-55098 J CLIPJ CLIP
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-812815R97 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-812817R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & BelowPOWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284787 & Below -
-823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & UpPOWERHEAD ASSEMBLY
(XR6/Magnum III) SN# 0D284788 & Up -
-823434R97 POWERHEAD ASSEMBLY
(Tracker 150)POWERHEAD ASSEMBLY
(Tracker 150) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
