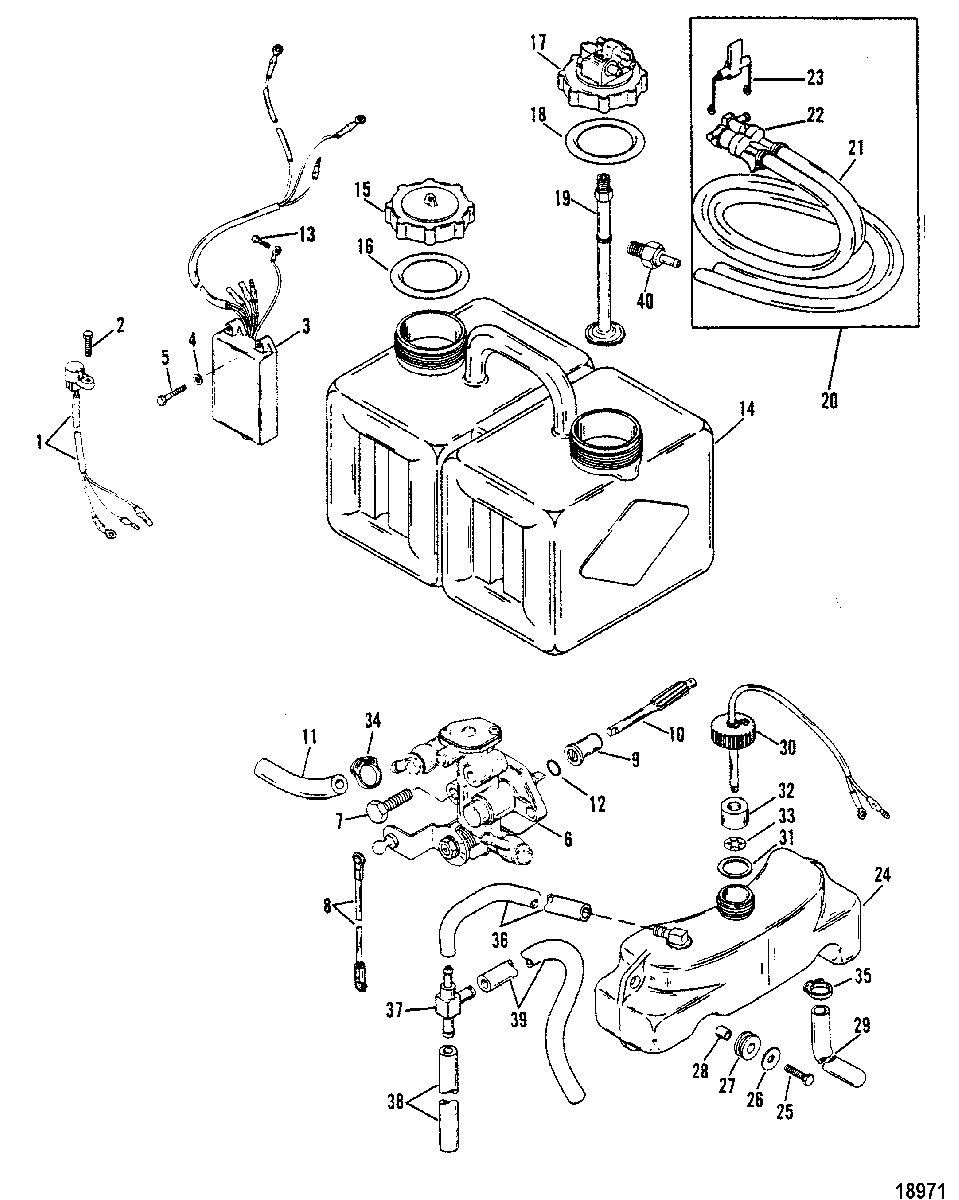

Oil Injection Components для Mariner - V-135 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    12430A4 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 2
    10-48409 SCREW, (#10-16 x .625), SENSOR ATTACHING
    SCREW, (#10-16 x .625), SENSOR ATTACHING
  • 3
    41470A26 WARNING MODULE ASSEMBLY
    WARNING MODULE ASSEMBLY
  • 4
    12-38833 WASHER, WARNING MODULE SCREW
    WASHER, WARNING MODULE SCREW
  • 5
    10-690201 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 6
    815698T OIL PUMP
    OIL PUMP
  • 7
    10-32228 SCREW, (#10-32 x .625), OIL PUMP TO CRANKCASE
    SCREW, (#10-32 x .625), OIL PUMP TO CRANKCASE
  • 7
    10-41507 SCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASE
    SCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASE
  • 8
    193856 LINK, THROTTLE LEVER TO OIL PUMP
    LINK, THROTTLE LEVER TO OIL PUMP
  • 9
    23-41429A2 BEARING ASSEMBLY, DRIVE GEAR
    BEARING ASSEMBLY, DRIVE GEAR
  • 10
    43-14563 DRIVEN GEAR
    DRIVEN GEAR
  • 11
    32-82381335 TUBING, OIL PUMP TO TEE
    TUBING, OIL PUMP TO TEE
  • 12
    25-11379 O-RING, OIL PUMP
    O-RING, OIL PUMP
  • 13
    10-42813 SCREW, WARNING MODULE LEAD
    SCREW, WARNING MODULE LEAD
  • 14
    1257-87421 TANK
    TANK
  • 15
    36-43298A2 CAP ASSEMBLY, OIL TANK
    CAP ASSEMBLY, OIL TANK
  • 16
    25-11332 O-RING, OIL PUMP
    O-RING, OIL PUMP
  • 17
    816190A4 ADAPTOR HOUSING ASSEMBLY
    ADAPTOR HOUSING ASSEMBLY
  • 18
    25-11332 O-RING, CAP
    O-RING, CAP
  • 19
    32-99802 TUBE, OIL PICK-UP
    TUBE, OIL PICK-UP
  • 20
    NLA No Longer Available, Quick Disconnect Kit (Order parts separately)
    No Longer Available, Quick Disconnect Kit (Order parts separately)
  • 21
    32-99439 HOSE, (114.00 Inches), OIL
    HOSE, (114.00 Inches), OIL
  • 22
    12540A3 HOUSING
    HOUSING
  • 23
    12242A1 LATCH
    LATCH
  • 24
    994436 OIL RESERVOIR
    OIL RESERVOIR
  • 25
    10-690201 SCREW, (#10-32 x .875), OIL RESERVOIR ATTACHING
    SCREW, (#10-32 x .875), OIL RESERVOIR ATTACHING
  • 26
    12-42118 WASHER, OIL RESERVOIR SCREW
    WASHER, OIL RESERVOIR SCREW
  • 27
    25-42117 GROMMET, OIL RESERVOIR SCREW
    GROMMET, OIL RESERVOIR SCREW
  • 28
    23-42116 BUSHING, OIL RESERVOIR SCREW
    BUSHING, OIL RESERVOIR SCREW
  • 29
    32-82381455 TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
    TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
  • 30
    36-43300A9 CAP ASSEMBLY, OIL RESERVOIR
    CAP ASSEMBLY, OIL RESERVOIR
  • 31
    27-43307T GASKET, RESERVOIR CAP
    GASKET, RESERVOIR CAP
  • 32
    99022A1 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 33
    11-99265 PUSHNUT
    PUSHNUT
  • 34
    54-415821 CLAMP, OIL HOSE (SMALL)
    CLAMP, OIL HOSE (SMALL)
  • 35
    54-415823 CLAMP, OIL HOSE (LARGE)
    CLAMP, OIL HOSE (LARGE)
  • 36
    32-8M0108355 FUEL LINE, (57.00 Inches Bulk), OIL
    FUEL LINE, (57.00 Inches Bulk), OIL
  • 37
    22-42425 TEE, OIL TUBING
    TEE, OIL TUBING
  • 38
    32-9072925 HOSE, OIL (6-3/4")
    HOSE, OIL (6-3/4")
  • 39
    32-8M0108355 FUEL LINE, (57.00 Inches Bulk)
    FUEL LINE, (57.00 Inches Bulk)
  • 40
    21-8781051 FITTING, CHECK VALVE (CRANKCASE)
    FITTING, CHECK VALVE (CRANKCASE)
