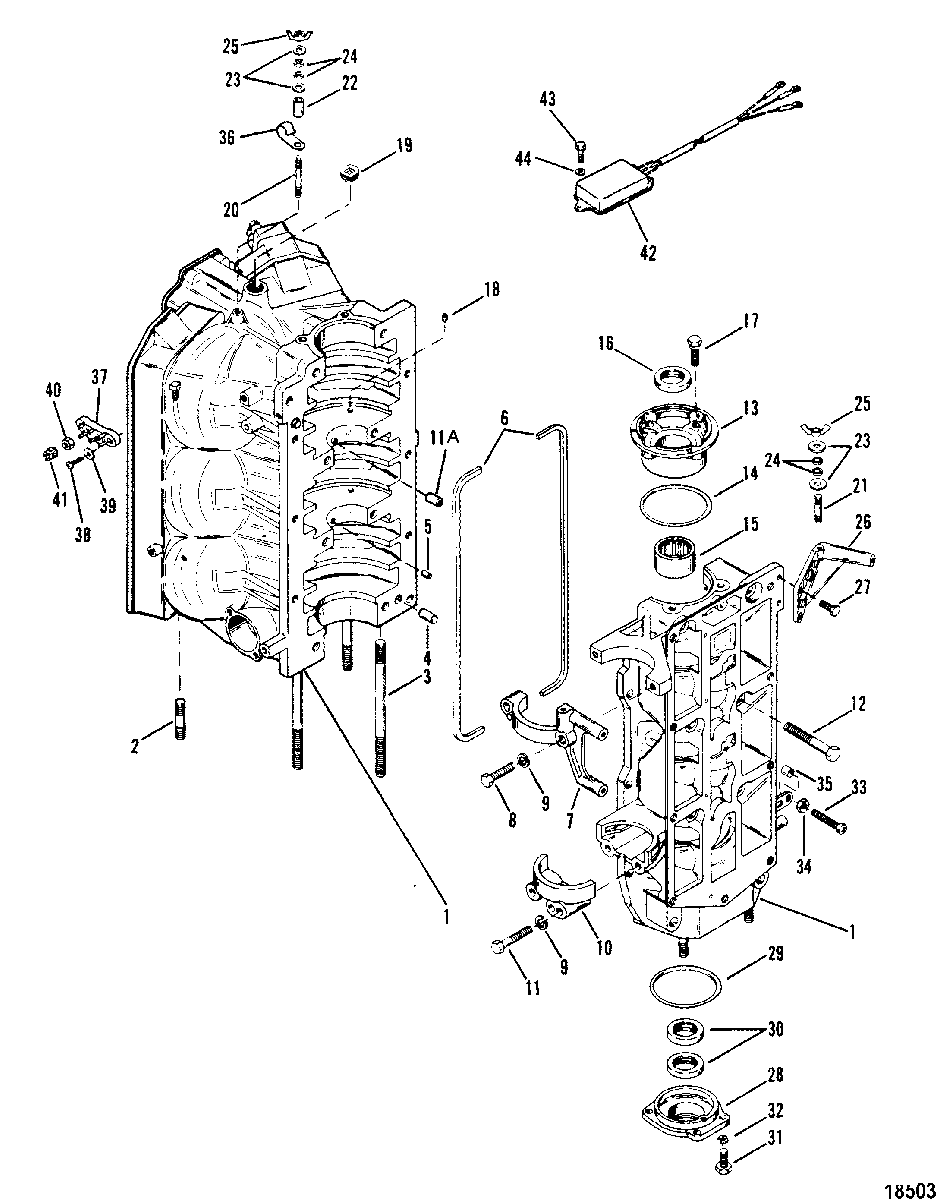

Cylinder Block and End Caps для Mariner - V-135 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    858-8711T19 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    16-76175 STUD, POWERHEAD (1-7/8")
    STUD, POWERHEAD (1-7/8")
  • 3
    16-670654 STUD, POWERHEAD (5-1/2")
    STUD, POWERHEAD (5-1/2")
  • 3
    16-8M0034454 STUD, POWERHEAD (6-3/4")
    STUD, POWERHEAD (6-3/4")
  • 4
    17-43044 PIN, Dowel, LOCATING
    PIN, Dowel, LOCATING
  • 5
    17-8M0036405 PIN, CYLINDER BLOCK (BEARING RACE)
    PIN, CYLINDER BLOCK (BEARING RACE)
  • 6
    27-11338 GASKET, SEALING
    GASKET, SEALING
  • 7
    8M0088723 COVER, STARTER MOTOR (UPPER)
    COVER, STARTER MOTOR (UPPER)
  • 8
    10-73657 SCREW, (.312-18 x 1.50), COVER TO CRANKCASE
    SCREW, (.312-18 x 1.50), COVER TO CRANKCASE
  • 9
    13-26993 LOCKWASHER, (.312), STARTER MOTOR COVER SCREW
    LOCKWASHER, (.312), STARTER MOTOR COVER SCREW
  • 10
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 11
    10-815549 SCREW, (.312-18 x 2), COVER TO CRANKCASE
    SCREW, (.312-18 x 2), COVER TO CRANKCASE
  • 11A
    23-99448 BUSHING
    BUSHING
  • 12
    10-66717 SCREW, (.375-16 x 3.250)
    SCREW, (.375-16 x 3.250)
  • 12
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 13
    1159-9608T1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 14
    25-54029 O-RING, END CAP
    O-RING, END CAP
  • 15
    31-93496T ROLLER BEARING, END CAP
    ROLLER BEARING, END CAP
  • 16
    26-41953 SEAL, END CAP
    SEAL, END CAP
  • 17
    10-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)
    SCREW WITH LOCKWASHER, (.312-18 x 1.00)
  • 18
    10-24220 SCREW, (.190-24 x .19), SET - CYLINDER BLOCK
    SCREW, (.190-24 x .19), SET - CYLINDER BLOCK
  • 19
    22-38407 PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET) (OLD DESIGN)
    PLUG, (.500-14), CYLINDER BLOCK (WATER JACKET) (OLD DESIGN)
  • 20
    16-15094 STUD, (.190-32 x 1.870)
    STUD, (.190-32 x 1.870)
  • 21
    16-8M0034435 STUD, (#10-32 x 1.00)
    STUD, (#10-32 x 1.00)
  • 22
    23-67269 SPACER, FLYWHEEL COVER STUD
    SPACER, FLYWHEEL COVER STUD
  • 23
    12-49221 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 24
    12-72761 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 25
    11-816874 NUT, FLYWHEEL COVER STUD
    NUT, FLYWHEEL COVER STUD
  • 26
    422482 BRACKET, FLYWHEEL COVER
    BRACKET, FLYWHEEL COVER
  • 27
    10-49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASE
    SCREW, (.250-20 x .750), BRACKET TO CRANKCASE
  • 28
    1156-7809T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 29
    25-62700 O-RING, (3.250 Inside Diameter), END CAP
    O-RING, (3.250 Inside Diameter), END CAP
  • 30
    26-41953 SEAL, END CAP
    SEAL, END CAP
  • 31
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 32
    13-26992 LOCKWASHER, (.250), LOWER END CAP SCREW
    LOCKWASHER, (.250), LOWER END CAP SCREW
  • 33
    10-64022 SCREW, (.250-20 x 2.125), ADJUSTING-CYLINDER BLOCK
    SCREW, (.250-20 x 2.125), ADJUSTING-CYLINDER BLOCK
  • 34
    11-64015 NUT, (.250-20), JAM - ADJUSTING SCREW
    NUT, (.250-20), JAM - ADJUSTING SCREW
  • 35
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • -
    66517 RESTRICTOR, BLEED - CYLINDER BLOCK
    RESTRICTOR, BLEED - CYLINDER BLOCK
  • 36
    54-63153 J CLIP
    J CLIP
  • 37
    86-194372 TERMINAL BLOCK
    TERMINAL BLOCK
  • 38
    10-48409 SCREW, (#10-16 x .625)
    SCREW, (#10-16 x .625)
  • 39
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 40
    11-45076 NUT, (#10-32)
    NUT, (#10-32)
  • 41
    11-813938 CAPNUT, (#10-32)
    CAPNUT, (#10-32)
  • 42
    87076A4 IDLE SPEED CONTROL ASSEMBLY
    IDLE SPEED CONTROL ASSEMBLY
  • 43
    10-690201 SCREW, (#10-32 x .875), IDLE SPEED CONTROL
    SCREW, (#10-32 x .875), IDLE SPEED CONTROL
  • 44
    12-38833 WASHER, IDLE SPEED CONTROL SCREW
    WASHER, IDLE SPEED CONTROL SCREW
  • -
    812815T89 POWERHEAD
    POWERHEAD
  • -
    813922A89 POWERHEAD
    (Mariner 135)
    POWERHEAD
    (Mariner 135)
  • -
    27-90484A88 GASKET SET
    GASKET SET
