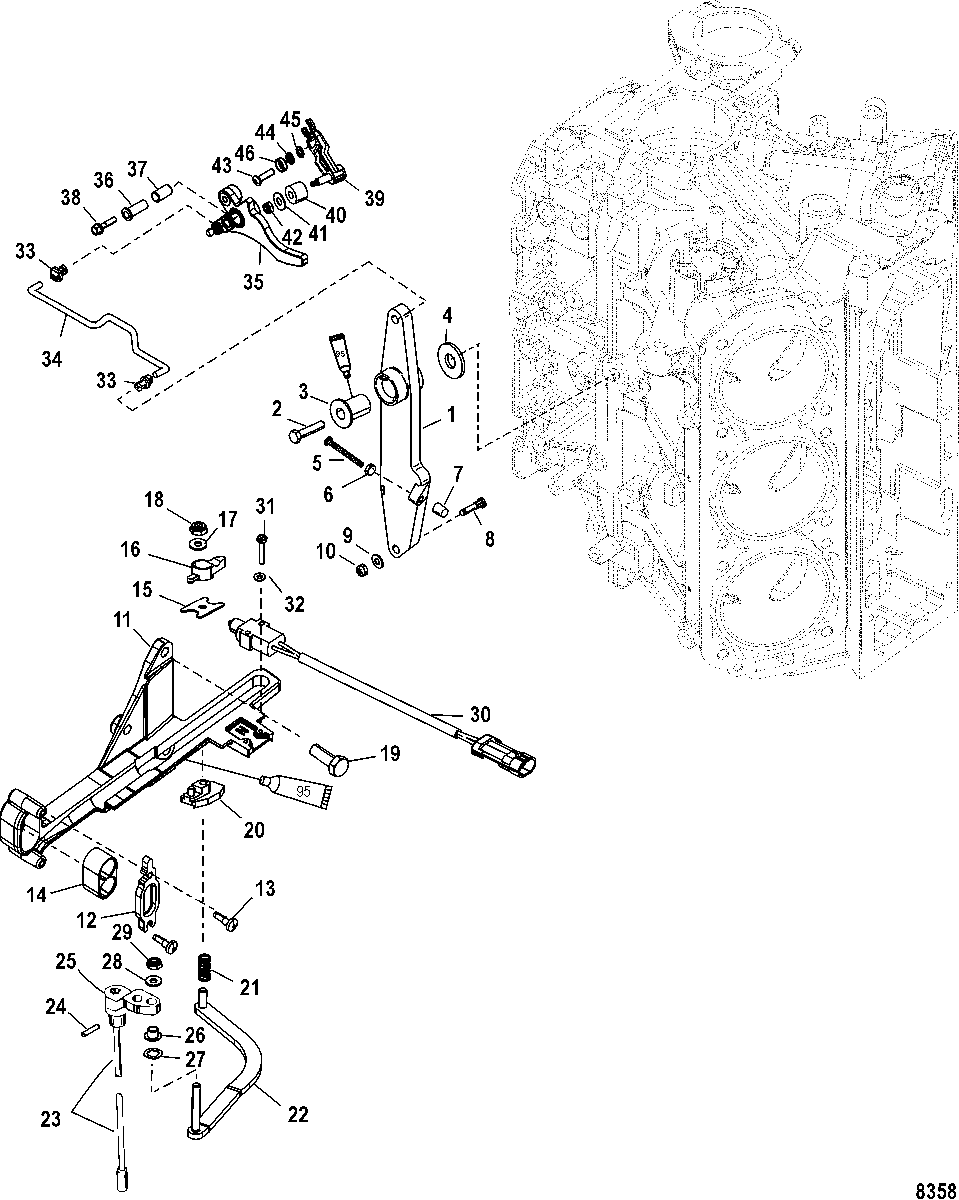

Throttle Lever and Shift Shaft для Mariner - V-135 DFI (2.5L) 1B417702 & Up

  • №
    Артикул
    Название
  • 1
    8M0040990 LEVER, Throttle Control
    LEVER, Throttle Control
  • 2
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 3
    23-55164 BUSHING
    BUSHING
  • 4
    23-858959 SPACER
    SPACER
  • 5
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 6
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 7
    26852 CAP, Nylon
    CAP, Nylon
  • 8
    42927 INSERT
    INSERT
  • 9
    12-35459 WASHER
    WASHER
  • 10
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 11
    814283T6 BRACKET ASSEMBLY, Anchor
    BRACKET ASSEMBLY, Anchor
  • 12
    98889 LATCH
    LATCH
  • 13
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 14
    39519 CUP
    CUP
  • 15
    52100 WEAR PLATE
    WEAR PLATE
  • 16
    8M0036768 LATCH
    LATCH
  • 17
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 18
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 19
    10-28782 SCREW, (.312-18 x .880) Stainless Steel
    SCREW, (.312-18 x .880) Stainless Steel
  • 20
    814284 GUIDE BLOCK
    GUIDE BLOCK
  • 21
    24-20099 SPRING
    SPRING
  • 22
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 23
    79932A16 SHIFT SHAFT ASSEMBLY
    LONG
    SHIFT SHAFT ASSEMBLY
    LONG
  • 23
    79932A17 SHIFT SHAFT ASSEMBLY
    X-LONG
    SHIFT SHAFT ASSEMBLY
    X-LONG
  • 24
    NSS NOT SOLD SEPARATE, Roll Pin
    NOT SOLD SEPARATE, Roll Pin
  • 25
    NSS NOT SOLD SEPARATE, Shift Shaft Lever-Upper
    NOT SOLD SEPARATE, Shift Shaft Lever-Upper
  • 26
    23-26856 BUSHING
    BUSHING
  • 27
    13-29720 WAVE WASHER
    WAVE WASHER
  • 28
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 29
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 30
    87-8M0052939 SWITCH
    SWITCH
  • 31
    10-77478 SCREW, (#6-32 x .875)
    SCREW, (#6-32 x .875)
  • 32
    12-27882 WASHER
    WASHER
  • 33
    23-932481 BUSHING
    BUSHING
  • 34
    8508152 ROD
    ROD
  • 35
    8562211 CAM
    CAM
  • 36
    23-856895 BUSHING
    BUSHING
  • 37
    30-856896 BEARING
    BEARING
  • 38
    10-81893440 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 39
    850286A03 LEVER/ROLLER KIT, Throttle
    LEVER/ROLLER KIT, Throttle
  • 40
    8M0072162 ROLLER
    ROLLER
  • 41
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 42
    11-826709104 NUT, (#8-32) Stainless Steel
    NUT, (#8-32) Stainless Steel
  • 43
    10-889354 SCREW, Special
    SCREW, Special
  • 44
    8M0095734 WASHER, Spool
    WASHER, Spool
  • 45
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • 46
    8M0095734 WASHER, Cupped
    WASHER, Cupped
