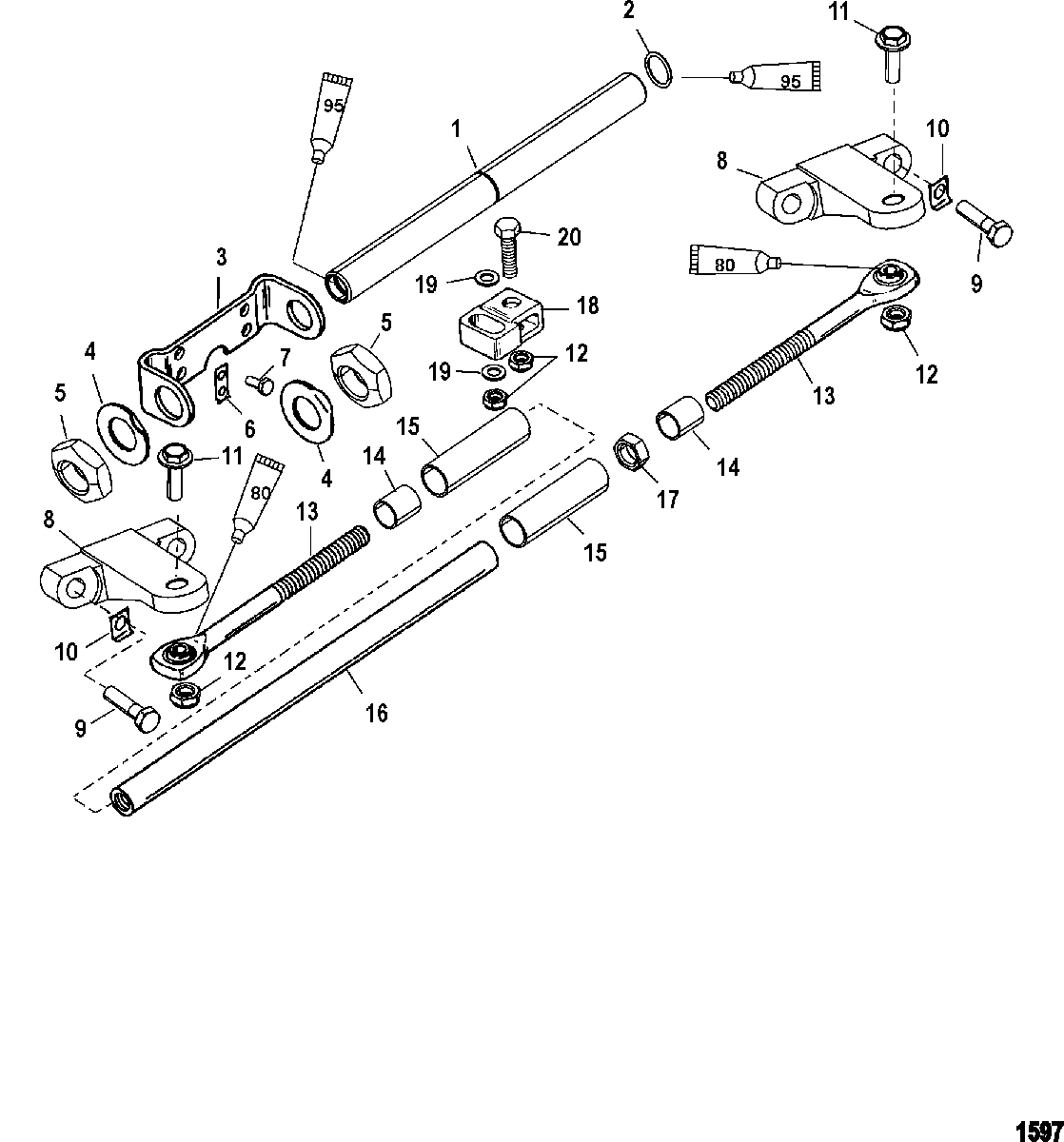

Dual Engine Tie Bar Kit для Mariner - V-135 DFI (2.5L) 1B417702 & Up

  • №
    Артикул
    Название
  • -
    92876A9 EXTENSION KIT, Dual Engine
    EXTENSION KIT, Dual Engine
  • 1
    71565A2 TUBE ASSEMBLY
    TUBE ASSEMBLY
  • 2
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 3
    41055 MOUNT
    MOUNT
  • 4
    14-42100 TAB WASHER
    TAB WASHER
  • 5
    11-8M0041651 NUT, (.875-14)
    NUT, (.875-14)
  • 6
    88404 TAB WASHER
    TAB WASHER
  • 7
    10-38601 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 8
    17729A1 BRACKET
    BRACKET
  • 9
    10-62055 SCREW, (.312-24 x 1.250)
    SCREW, (.312-24 x 1.250)
  • 10
    17728 TAB WASHER
    TAB WASHER
  • 11
    10-140001 SCREW, (.375-24 x 1.38)
    SCREW, (.375-24 x 1.38)
  • 12
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 13
    8M0026167 STEERING EYE
    STEERING EYE
  • 14
    23-23651 SLEEVE, (1.625)
    SLEEVE, (1.625)
  • 15
    97931 TUBING, (4.00 Inches)
    TUBING, (4.00 Inches)
  • 16
    8M0026098 COUPLER, 15 In.
    COUPLER, 15 In.
  • 17
    11-42099 NUT, (.562-18)
    NUT, (.562-18)
  • 18
    22-821169 COUPLING
    COUPLING
  • 19
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 19
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    WASHER, (.390 x .625 x .062) Stainless Steel
  • 20
    10-94319 SCREW, (.375-24 x 1.5)
    SCREW, (.375-24 x 1.5)
