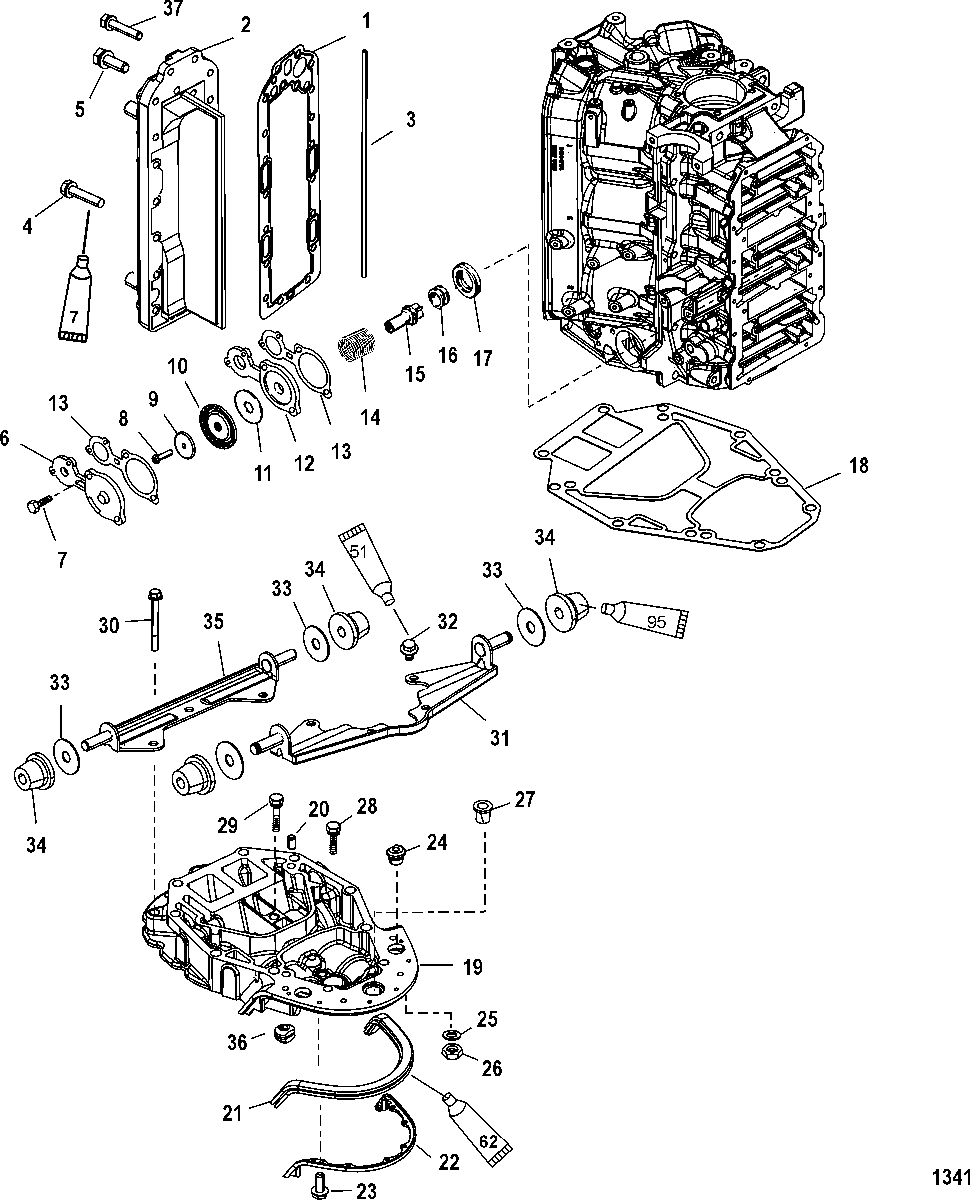

Exhaust Manifold and Exhaust Plate для Mariner - V-135 DFI (2.5L) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    27-190506 GASKET
    GASKET
  • 2
    828343A05 PLATE KIT, Exhaust Divider, Exhasut
    PLATE KIT, Exhaust Divider, Exhasut
  • 3
    26-814754 SEAL, (12.50 Inches)
    SEAL, (12.50 Inches)
  • 4
    10-8263561 SCREW AND WASHER, (.312-18 x 1.500)
    SCREW AND WASHER, (.312-18 x 1.500)
  • 5
    10-881190 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 6
    8M0039767 COVER, Relief Valve
    COVER, Relief Valve
  • 7
    10-31984 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 8
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 9
    12-76451 WASHER
    WASHER
  • 10
    144791 DIAPHRAGM
    DIAPHRAGM
  • 11
    16496 DEFLECTOR, Water
    DEFLECTOR, Water
  • 12
    16497A1 PLATE
    PLATE
  • 13
    27-78690002 GASKET
    GASKET
  • 14
    24-42996 SPRING
    SPRING
  • 15
    14480 POPPET
    POPPET
  • 16
    25-64872 GROMMET
    GROMMET
  • 17
    65848 CARRIER
    CARRIER
  • 18
    27-991764 GASKET
    GASKET
  • 19
    850814T4 PLATE, Exhaust
    PLATE, Exhaust
  • 20
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 21
    8M0043164 SEAL
    SEAL
  • 22
    680101 BRACKET
    BRACKET
  • 23
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 24
    25-19565002 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 24
    25-19565002 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 25
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 26
    11-69254 NUT
    NUT
  • 27
    23-27132 BUSHING
    BUSHING
  • 28
    10-66727 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 29
    10-68783 SCREW, (.312-18 x 2.50)
    SCREW, (.312-18 x 2.50)
  • 30
    10-898833 SCREW, (.375-16 x 3.50)
    SCREW, (.375-16 x 3.50)
  • 31
    812905T BRACKET ASSEMBLY, Front
    BRACKET ASSEMBLY, Front
  • 32
    10-8055571 SCREW, (.3125-18 x .50)
    SCREW, (.3125-18 x .50)
  • 33
    12-187031 WASHER
    WASHER
  • 34
    25-18778001 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 34
    25-18778001 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 35
    18578T09 BRACKET ASSEMBLY, Rear
    BRACKET ASSEMBLY, Rear
  • 36
    25-12602002 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 36
    25-12602002 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 37
    10-35385 SCREW, (.312-18 x 1-3/4) (SLAVE)
    SCREW, (.312-18 x 1-3/4) (SLAVE)
  • -
    27-8M0046714 GASKET SET, Engine
    GASKET SET, Engine
  • -
    879808T07 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    879809T07 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
