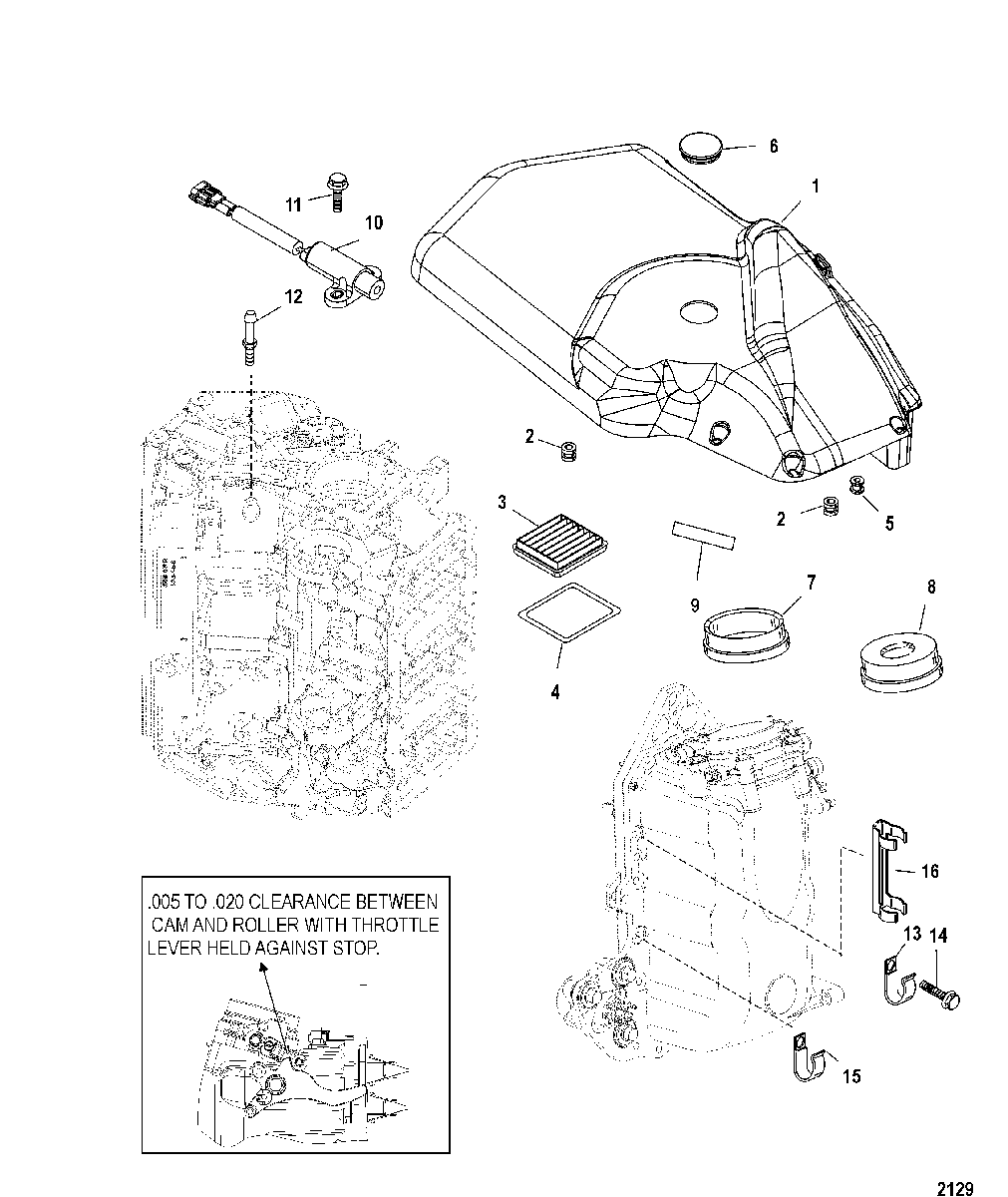

Air Handler/Flywheel Cover для Mariner - V-135 DFI (2.5L) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    827325T11 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    25-821555001 GROMMET
    SN# 0T979999 & Below
    GROMMET
    SN# 0T979999 & Below
  • 2
    25-821555001 GROMMET
    SN# 0T980000 & Up
    GROMMET
    SN# 0T980000 & Up
  • 3
    35-853333T FILTER
    FILTER
  • 4
    853352 COVER
    COVER
  • 5
    25-857101 GROMMET
    GROMMET
  • 6
    19-89219001 PLUG
    SN# 0T979999 & Below
    PLUG
    SN# 0T979999 & Below
  • 6
    19-89219001 PLUG
    SN# 0T980000 & Up
    PLUG
    SN# 0T980000 & Up
  • 7
    25-855613 GROMMET
    (150/175)
    GROMMET
    (150/175)
  • 8
    25-8556131 GROMMET
    (135)
    GROMMET
    (135)
  • 9
    37-881865 DECAL, Caution-Start in Gear
    (Start In Gear)
    DECAL, Caution-Start in Gear
    (Start In Gear)
  • 10
    8M0082988 SENSOR
    SENSOR
  • 11
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 12
    8215832 PIN, Special
    PIN, Special
  • 13
    54-883080 J CLIP
    J CLIP
  • 14
    10-817504 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 15
    54-633003 CLAMP
    CLAMP
  • 16
    8261151 CLAMP, Connector
    CLAMP, Connector
  • -
    879808T07 POWERHEAD ASSEMBLY
    (135/150)
    POWERHEAD ASSEMBLY
    (135/150)
  • -
    879809T07 POWERHEAD ASSEMBLY
    (175)
    POWERHEAD ASSEMBLY
    (175)
