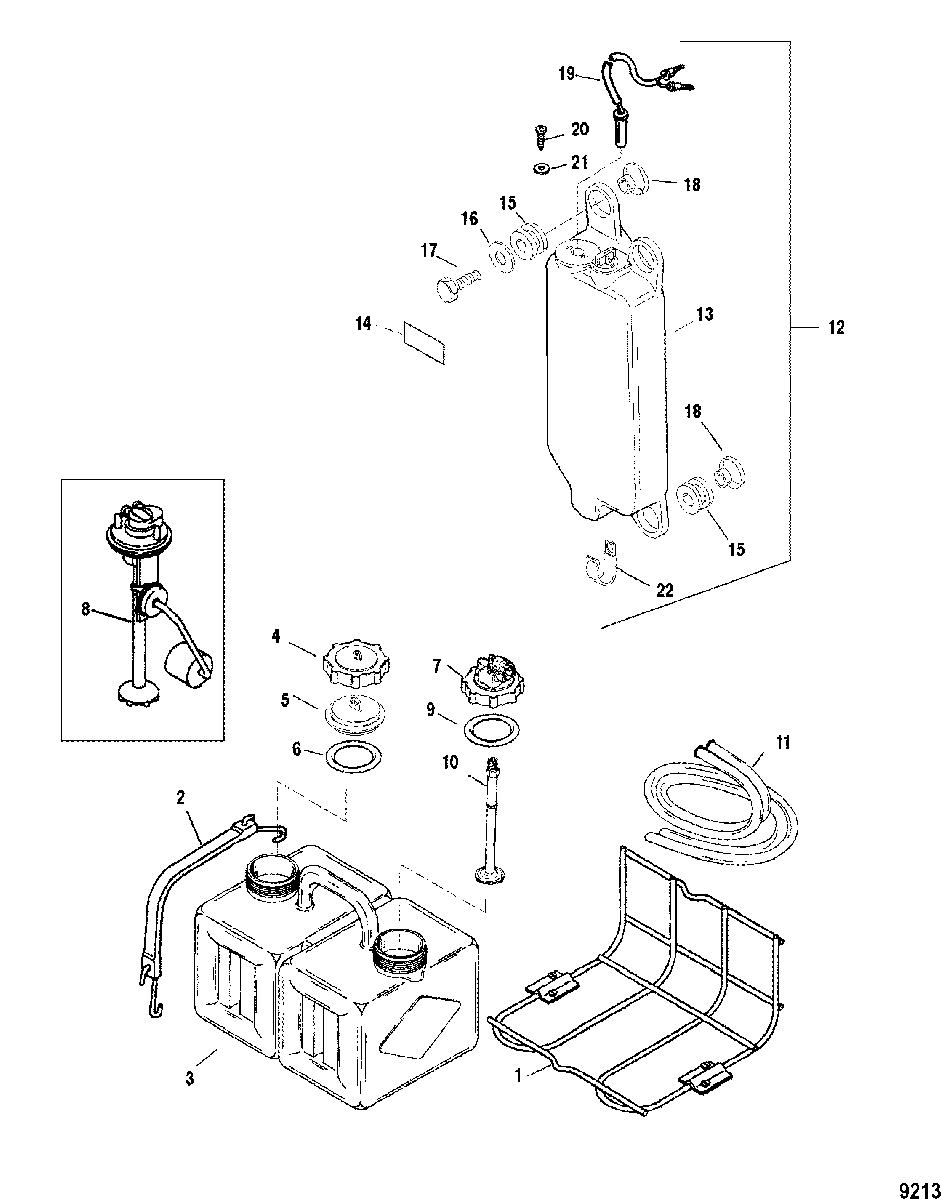

Oil Injection Components для Mariner - V-135 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    12335A1 BRACKET KIT
    BRACKET KIT
  • 2
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 3
    1257-87421 TANK
    TANK
  • 4
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 6
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 7
    816190A4 SENDER ASSEMBLY, Oil Level
    (NON-DIGITAL)
    SENDER ASSEMBLY, Oil Level
    (NON-DIGITAL)
  • 8
    816190A5 SENDER ASSEMBLY, Oil Level
    (DIGITAL)
    SENDER ASSEMBLY, Oil Level
    (DIGITAL)
  • 9
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 10
    32-99802 TUBE
    TUBE
  • 11
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 12
    1200-8M0063190 RESERVOIR ASSEMBLY, Oil
    RESERVOIR ASSEMBLY, Oil
  • 13
    NSS NOT SOLD SEPARATE, Oil Reservoir
    NOT SOLD SEPARATE, Oil Reservoir
  • 14
    NSS NOT SOLD SEPARATE, Decal-Reservoir
    NOT SOLD SEPARATE, Decal-Reservoir
  • 15
    25-855362001 GROMMET
    GROMMET
  • 16
    12-49436 WASHER
    WASHER
  • 17
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 18
    23-855364 BUSHING
    BUSHING
  • 19
    87-856156T02 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 20
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 21
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 22
    54-814634 CLAMP
    CLAMP

Все узлы модели:
