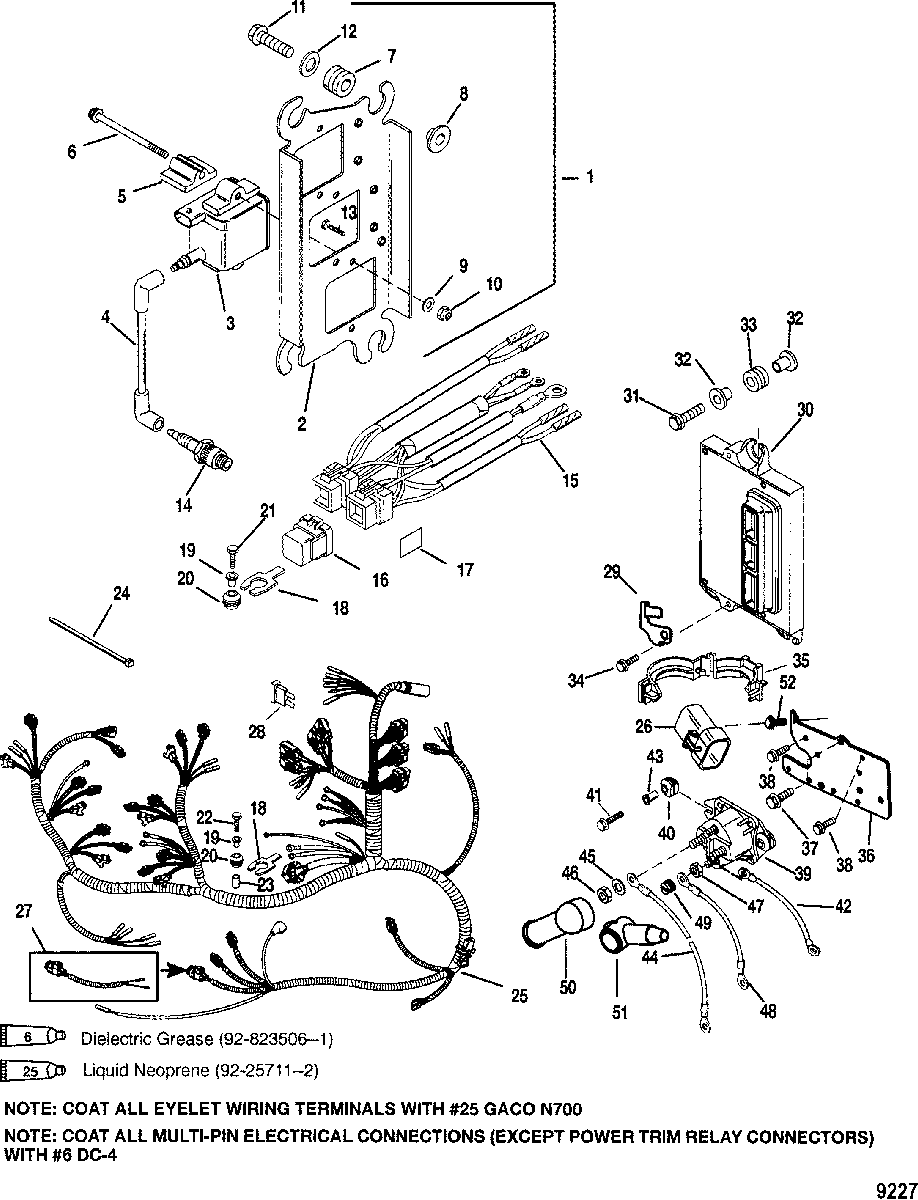

Electrical Components для Mariner - V-135 DFI (2.5L) 0G960500 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Coil Plate Assembly
    NOT SOLD SEPARATE, Coil Plate Assembly
  • 2
    8M0011731 PLATE, Coil
    PLATE, Coil
  • 3
    339-856991A1 COIL KIT
    COIL KIT
  • 4
    84-881908T CABLE ASSEMBLY, Hi Tension
    CABLE ASSEMBLY, Hi Tension
  • 5
    850676F1 SPACER
    SPACER
  • 6
    10-850898 SCREW, (.250-20 x 3.250)
    SCREW, (.250-20 x 3.250)
  • 7
    25-833155 GROMMET
    GROMMET
  • 8
    23-8502341 BUSHING
    BUSHING
  • 9
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
    WASHER, (.281 x .625 x .065) Stainless Steel
  • 10
    11-8267098 NUT, (.250-20)
    NUT, (.250-20)
  • 11
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 12
    12-49436 WASHER
    WASHER
  • 13
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 14
    33-889597Q SPARK PLUG
    SPARK PLUG
  • 15
    84-819514A14 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 16
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 17
    NSS NOT SOLD SEPARATE, Decal-Trim Relay
    NOT SOLD SEPARATE, Decal-Trim Relay
  • 18
    828102 BRACKET
    BRACKET
  • 19
    23-818968 BUSHING
    BUSHING
  • 20
    25-818967 GROMMET
    GROMMET
  • 21
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 22
    10-82129135 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 23
    23-91912 BUSHING
    BUSHING
  • 24
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 25
    84-858229T1 HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 26
    NSS NOT SOLD SEPARATE, Fuse Cover
    NOT SOLD SEPARATE, Fuse Cover
  • 27
    84-856624A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 28
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 29
    8590881 CLIP
    CLIP
  • 30
    858891T28 ECU, Engine Control Unit
    (115)
    ECU, Engine Control Unit
    (115)
  • 30
    858891T24 ECU, Engine Control Unit
    (135)
    ECU, Engine Control Unit
    (135)
  • 30
    858891T25 ECU, Engine Control Unit
    (150)
    ECU, Engine Control Unit
    (150)
  • 31
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 32
    23-8318701 BUSHING
    BUSHING
  • 33
    25-834985 GROMMET
    GROMMET
  • 34
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 35
    54-858755 CLIP, (1.00)
    CLIP, (1.00)
  • 36
    833137F1 PLATE, Solenoid Mounting
    PLATE, Solenoid Mounting
  • 37
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 38
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 39
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 40
    25-822179 GROMMET
    GROMMET
  • 41
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 42
    84-93388A14 CABLE ASSEMBLY, Yellow/Black
    CABLE ASSEMBLY, Yellow/Black
  • 43
    23-818968 BUSHING
    BUSHING
  • 44
    84-88439A25 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 45
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 46
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 47
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 48
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 49
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 50
    85-8500671 BOOT, Insulator - Red
    BOOT, Insulator - Red
  • 51
    85-8500673 BOOT, Insulator - Yellow
    BOOT, Insulator - Yellow
  • 52
    54-828991T CLIP
    CLIP
