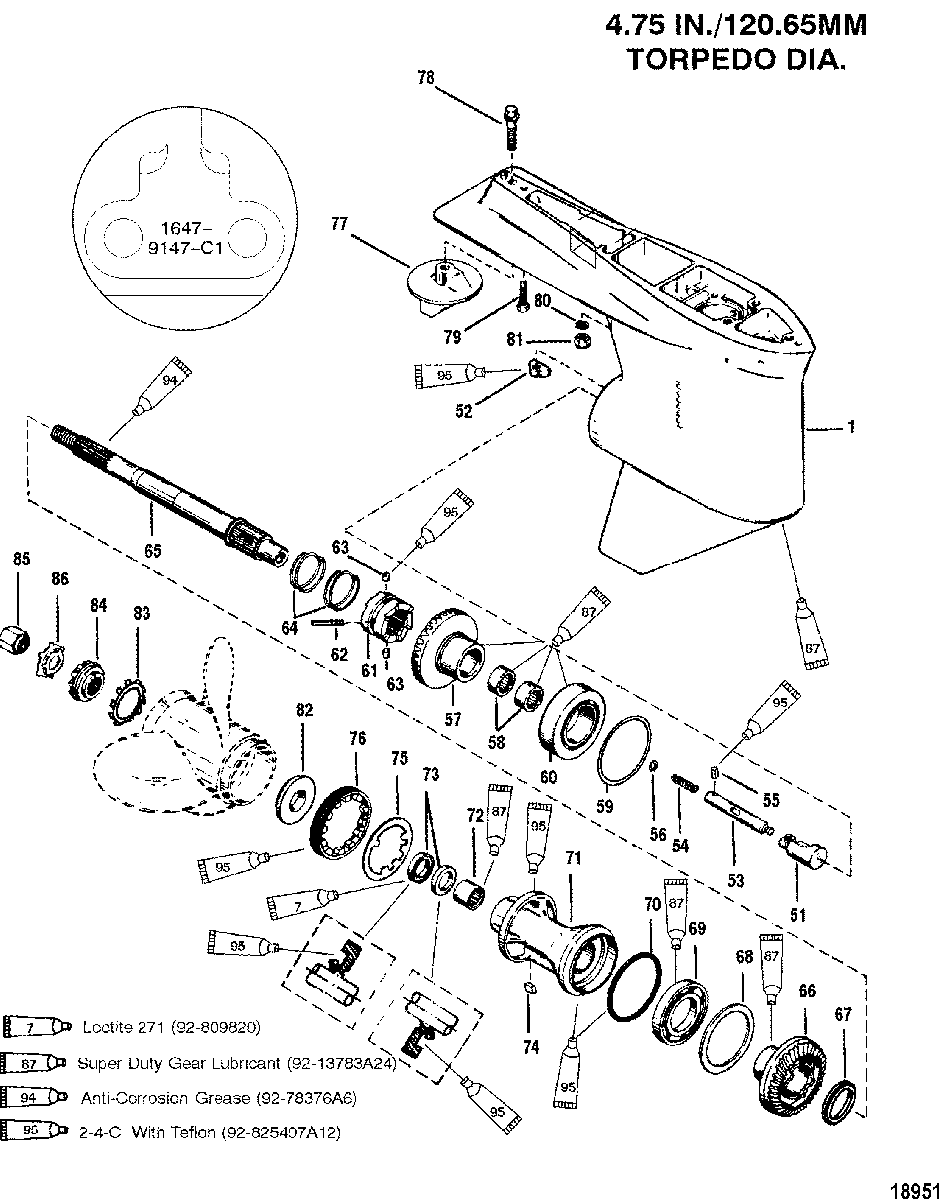

Gear Housing(Propshaft-Standard-S/N-0G437999 And Below) для Mariner - MAGNUM III 0G303046 THRU 0G760299
-
№АртикулНазвание
-
11647-9148T47 GEAR HOUSING ASSEMBLY
(Black, Basic)GEAR HOUSING ASSEMBLY
(Black, Basic) -
11647-9148T47 GEAR HOUSING ASSEMBLY
(Gray, Basic)GEAR HOUSING ASSEMBLY
(Gray, Basic) -
5189594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
52789562 SHIFT CAMSHIFT CAM
-
5379911A1 RODROD
-
5424-79910 SPRINGSPRING
-
5517-8M0084245 PINPIN
-
5612-78910 WASHERWASHER
-
5743-44104A8 GEAR SET
(XR6/Magnum III/175/200) (1.87:1 - 15/28)GEAR SET
(XR6/Magnum III/175/200) (1.87:1 - 15/28) -
5743-44102A7 GEAR SET
(135/150) (2.0:1 - 14/28)GEAR SET
(135/150) (2.0:1 - 14/28) -
5743-16294A5 GEAR SET
(High Altitude) (2.3:1 - 13/30)GEAR SET
(High Altitude) (2.3:1 - 13/30) -
5831-549281 BEARING, RollerBEARING, Roller
-
5915-47397A1 SHIM SET (.002-3-5-10)SHIM SET (.002-3-5-10)
-
6031-78172A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
6152-8M0100493 CLUTCHCLUTCH
-
6217-8M0084243 PIN, CrossPIN, Cross
-
6317-78909 PIN, DetentPIN, Detent
-
6424-78962 SPRINGSPRING
-
6544-94148 PROPELLER SHAFTPROPELLER SHAFT
-
6643-824986A2 GEAR ASSEMBLY, Reverse
(XR6/Magnum III/175/200) (1.87:1 - 15/28)GEAR ASSEMBLY, Reverse
(XR6/Magnum III/175/200) (1.87:1 - 15/28) -
6643-824987A2 GEAR ASSEMBLY, Reverse
(135/150) (2.0:1 - 14/28)GEAR ASSEMBLY, Reverse
(135/150) (2.0:1 - 14/28) -
66NSS NOT SOLD SEPARATE, Reverse Gear
(Part Of 43- 16294A 2) (2.3:1 - 13/30)NOT SOLD SEPARATE, Reverse Gear
(Part Of 43- 16294A 2) (2.3:1 - 13/30) -
6723-824108 SPACER, Not Used With High AltitudeSPACER, Not Used With High Altitude
-
68681001 RING, ThrustRING, Thrust
-
6930-88957T BEARING ASSEMBLY, BallBEARING ASSEMBLY, Ball
-
7025-31534 O-RINGO-RING
-
7143567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7231-30956T BEARING, NeedleBEARING, Needle
-
7326-76868 SEALSEAL
-
7428-30281 KEYKEY
-
7514-79447 TAB WASHERTAB WASHER
-
768M2000347 RETAINERRETAINER
-
7731640T07 TRIM TABTRIM TAB
-
7810-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
7910-65210 SCREW, (.375-16 x 1.00)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)SCREW, (.375-16 x 1.00)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8012-45176 WASHER, (.453 x .812 x .105) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)WASHER, (.453 x .812 x .105) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8111-34933 NUT, (.437-20) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)NUT, (.437-20) Stainless Steel
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8212-835467Q01 THRUST HUB
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)THRUST HUB
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8313-423511 LOCKWASHER, Toothed
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)LOCKWASHER, Toothed
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8412-31211Q03 WASHER, Splined
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)WASHER, Splined
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8511-52707Q1 PROP NUT KIT, (.750-16)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)PROP NUT KIT, (.750-16)
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
8614-816629Q TAB WASHER
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement)TAB WASHER
(These Replacement Parts Are Not Included With Complete Gear Housing Replacement) -
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-26-89238A2 SEAL KITSEAL KIT
