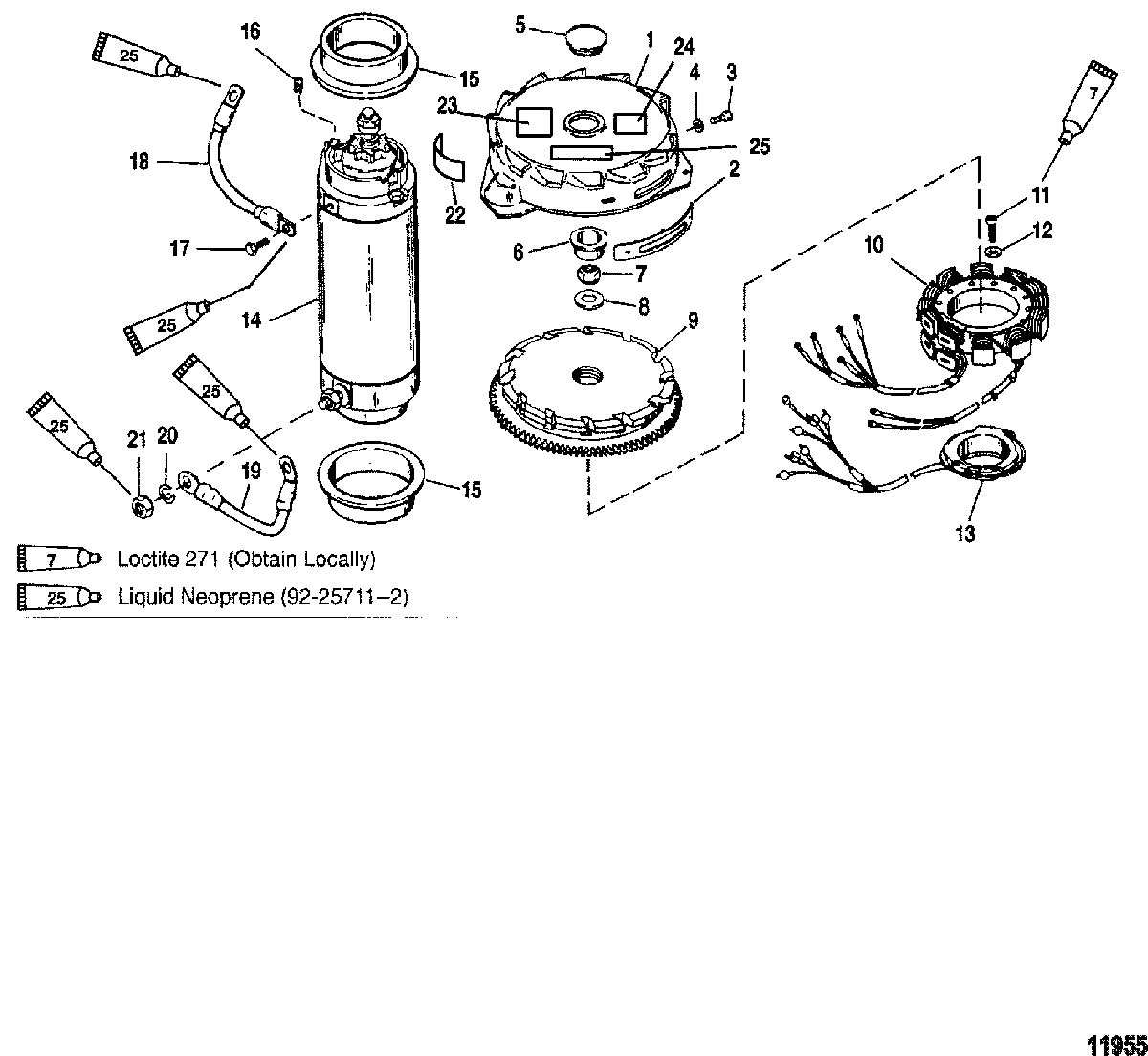

Flywheel/Starter Motor для Mariner - MAGNUM III 0G303046 THRU 0G760299
-
№АртикулНазвание
-
118896A1 COVER KITCOVER KIT
-
279022 MARKERMARKER
-
310-37572 SCREW, (.190-32 x .380)SCREW, (.190-32 x .380)
-
412-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
519-89219001 PLUG, Use Where ApplicablePLUG, Use Where Applicable
-
619-45907 PLUG, YellowPLUG, Yellow
-
711-52901 NUT, (.625-18)NUT, (.625-18)
-
812-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
9271-859238T16 FLYWHEELFLYWHEEL
-
10398-9610A19 STATORSTATOR
-
1110-90045 SCREW, (#10-32 x 1.375)SCREW, (#10-32 x 1.375)
-
1213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1396455A9 PLATE ASSEMBLY, TriggerPLATE ASSEMBLY, Trigger
-
1450-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1523-8M0034918 COLLARCOLLAR
-
168M0043376 STOP, RubberSTOP, Rubber
-
1710-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1884-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
1984-93388A14 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
2013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2111-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
22NSS NOT SOLD SEPARATE, Decal-In Gear IdleNOT SOLD SEPARATE, Decal-In Gear Idle
-
23NSS NOT SOLD SEPARATE, Decal-High VoltageNOT SOLD SEPARATE, Decal-High Voltage
-
24NSS NOT SOLD SEPARATE, Decal-Start In GearNOT SOLD SEPARATE, Decal-Start In Gear
-
25NSS NOT SOLD SEPARATE, Decal-TimingNOT SOLD SEPARATE, Decal-Timing
