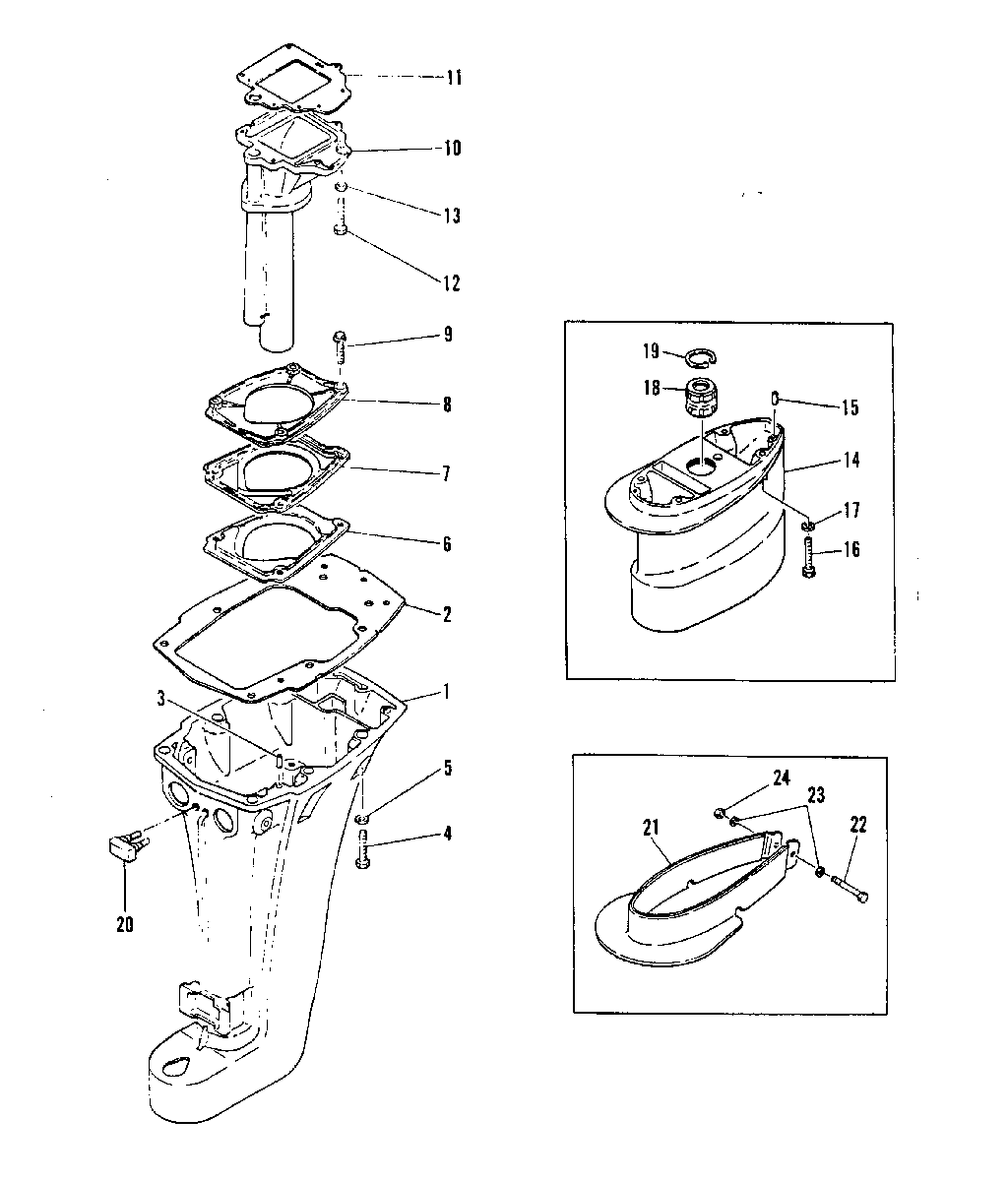

DRIVESHAFT HOUSING для Mariner - 9.9C 682-338441 AND UP
-
№АртикулНазвание
-
11587-811276M DRIVE SHAFT HOUSING (SHORT) SEE NOTE #3DRIVE SHAFT HOUSING (SHORT) SEE NOTE #3
-
11587-811277M DRIVE SHAFT HOUSING (LONG) SEE NOTE #3DRIVE SHAFT HOUSING (LONG) SEE NOTE #3
-
11587-8027M DRIVE SHAFT HOUSING (SHORT) (SEE NOTE #5)DRIVE SHAFT HOUSING (SHORT) (SEE NOTE #5)
-
11587-7144M DRIVE SHAFT HOUSING (SHORT) (SEE NOTE #6)DRIVE SHAFT HOUSING (SHORT) (SEE NOTE #6)
-
11587-8028M DRIVE SHAFT HOUSING (LONG) (SEE NOTE #4)DRIVE SHAFT HOUSING (LONG) (SEE NOTE #4)
-
227-96618 GASKETGASKET
-
317-82364M DOWEL PINDOWEL PIN
-
410-97749M BOLTBOLT
-
512-82217M WASHERWASHER
-
6810453M PLATEPLATE
-
784041M SEALSEAL
-
883953M SEAL PROTECTORSEAL PROTECTOR
-
910-82476M BOLTBOLT
-
10810454M EXHAUST MANIFOLD (SEE NOTE #1)EXHAUST MANIFOLD (SEE NOTE #1)
-
1083954M EXHAUST MANIFOLD (SEE NOTE #2)EXHAUST MANIFOLD (SEE NOTE #2)
-
1127-83955M GASKETGASKET
-
1210-84058M BOLTBOLT
-
1312-82214M WASHERWASHER
-
1484042M EXTENSION SUPER LONG SHAFTEXTENSION SUPER LONG SHAFT
-
1517-82364M DOWEL PIN SUPER LONG SHAFTDOWEL PIN SUPER LONG SHAFT
-
1610-82442M BOLT SUPER LONG SHAFTBOLT SUPER LONG SHAFT
-
1712-82217M WASHER SUPER LONG SHAFTWASHER SUPER LONG SHAFT
-
1823-815011M BUSHING SUPER LONG SHAFTBUSHING SUPER LONG SHAFT
-
1953-83758M SNAP RING SUPER LONG SHAFTSNAP RING SUPER LONG SHAFT
-
2094621M STOPPERSTOPPER
-
2184269M SPLASH PLATE LONG SHAFTSPLASH PLATE LONG SHAFT
-
2210-827043M BOLT LONG SHAFTBOLT LONG SHAFT
-
2312-82214M WASHER LONG SHAFTWASHER LONG SHAFT
-
2411-82390M NUT LONG SHAFTNUT LONG SHAFT
