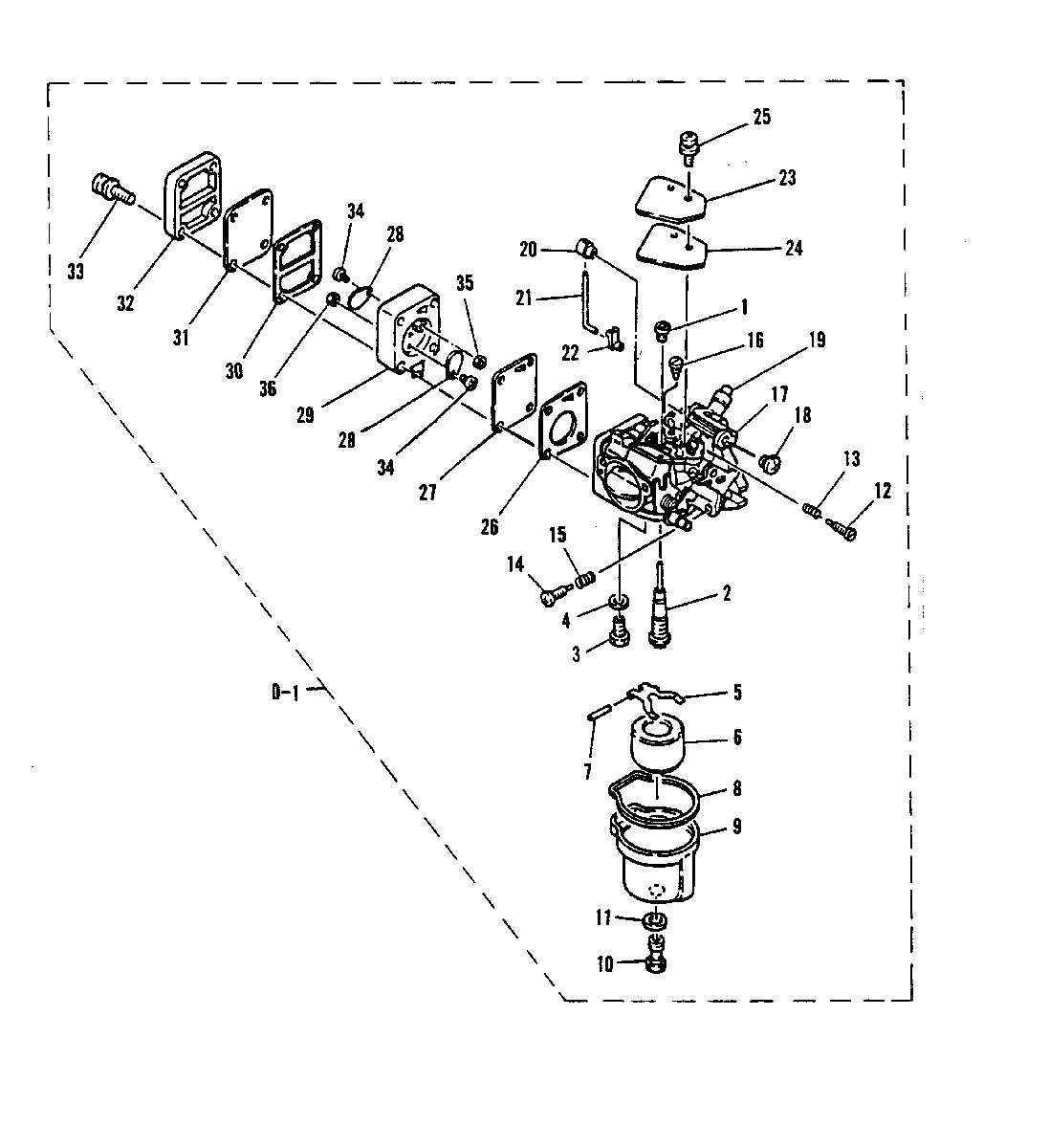

CARBURETOR/FUEL PUMP для Mariner - 9.9C 682-338441 AND UP
-
№АртикулНазвание
-
0-11383-8515M CARBURETOR (682-75) (ALL - SEE NOTE #1)CARBURETOR (682-75) (ALL - SEE NOTE #1)
-
0-11383-8236M CARB (682-72) (USA/AUSTRALIA ONLY - SEENOTE #2)CARB (682-72) (USA/AUSTRALIA ONLY - SEENOTE #2)
-
182600M PILOT JET (#46)PILOT JET (#46)
-
294795M MAIN NOZZLE (682-73/74/75) (SEE NOTE #1)MAIN NOZZLE (682-73/74/75) (SEE NOTE #1)
-
294796M MAIN NOZZLE (682-72) (SEE NOTE #2)MAIN NOZZLE (682-72) (SEE NOTE #2)
-
380447M VALVE SEAT ASSEMBLYVALVE SEAT ASSEMBLY
-
412-80261M WASHERWASHER
-
580202M FLOAT ARMFLOAT ARM
-
680450M FLOATFLOAT
-
717-80451M PINPIN
-
827-43115M GASKETGASKET
-
984252M FLOAT BOWLFLOAT BOWL
-
10NLA MAIN JET (#88) (682-73/74/75)MAIN JET (#88) (682-73/74/75)
-
1010-83289M MAIN JET (#80) (682-72)MAIN JET (#80) (682-72)
-
1127-80267 GASKETGASKET
-
1210-80573M IDLE MIXTURE SCREWIDLE MIXTURE SCREW
-
1324-814460M SPRINGSPRING
-
1410-83509M IDELE SPEED SCREW 682-74/75IDELE SPEED SCREW 682-74/75
-
1524-814460M SPRING 682-74/75SPRING 682-74/75
-
1410-80738M IDLE SPEED SCREW 682-72/73IDLE SPEED SCREW 682-72/73
-
1524-80966M SPRING 682-72/73SPRING 682-72/73
-
1610-80434M SCREWSCREW
-
1784254M THROTTLE ARM ASSEMBLYTHROTTLE ARM ASSEMBLY
-
1810-80091M SCREWSCREW
-
1984255M COLLARCOLLAR
-
2083300M RETAINERRETAINER
-
2184256M THROTTLE RODTHROTTLE ROD
-
2216333 RETAINERRETAINER
-
2398992M PLATE 682-74/75PLATE 682-74/75
-
2427-98993T GASKET 682-74/75GASKET 682-74/75
-
2510-82500M SCREW 682-74/75SCREW 682-74/75
-
2384258M PLATE 682-72/73PLATE 682-72/73
-
2427-84259M GASKET 682-72/73GASKET 682-72/73
-
2510-83509M SCREW 682-72/73SCREW 682-72/73
-
2627-815009 GASKETGASKET
-
2784262M DIAPHRAGMDIAPHRAGM
-
2821-41888M CHECK VALVECHECK VALVE
-
2984263M BODY (682-74/75)BODY (682-74/75)
-
2984263M BODY (682-72/73)BODY (682-72/73)
-
3027-84264 GASKETGASKET
-
3184265M DIAPHRAGMDIAPHRAGM
-
3284266M COVERCOVER
-
3310-80954M SCREWSCREW
-
3410-813484M SCREW 682-74/75SCREW 682-74/75
-
3511-82537M NUT 682-74/75NUT 682-74/75
-
-84473T REPAIR KITREPAIR KIT
