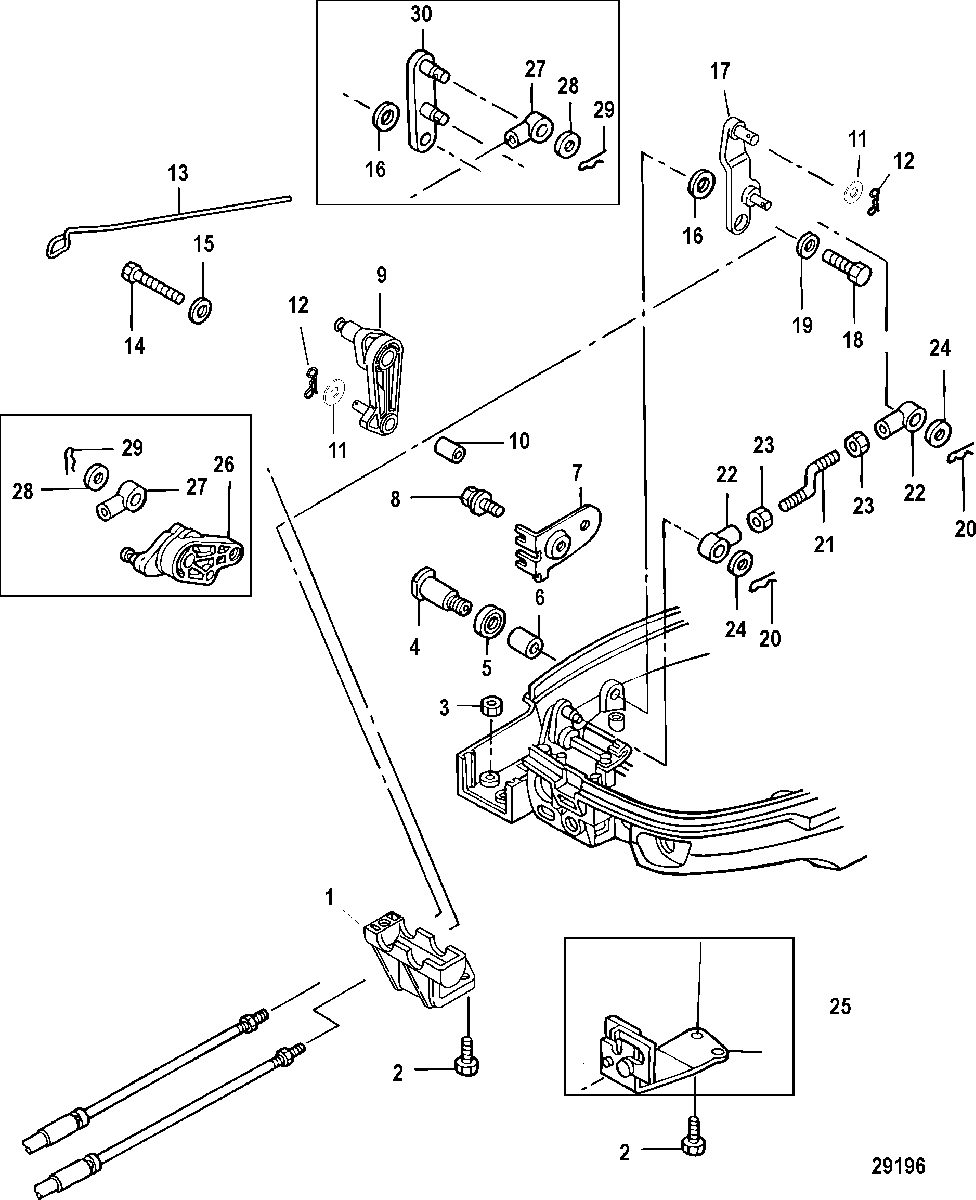

Throttle/Shift Linkage, 9.9 Remote Models для Mariner - 9.9 (4-STROKE)(209cc) 0P325500 & Up

№

Артикул

Название
1

898101635 BRACKET
SN# 0R192772 & Up

BRACKET
SN# 0R192772 & Up
1

898101635 BRACKET
SN# 0P513352 & Up

BRACKET
SN# 0P513352 & Up
2

10-16832 BOLT
SN# 0R068397 & Below

BOLT
SN# 0R068397 & Below
2

10-16832 BOLT
SN# 0P400999 & Below

BOLT
SN# 0P400999 & Below
2

10-16832 BOLT, (M6 x 16)
SN# 0R068398 THRU 0R192771

BOLT, (M6 x 16)
SN# 0R068398 THRU 0R192771
2

10-16832 BOLT, (M6 x 16)
SN# 0P401000 THRU 0P513351

BOLT, (M6 x 16)
SN# 0P401000 THRU 0P513351
2

10-167051 BOLT
SN# 0R192772 & Up

BOLT
SN# 0R192772 & Up
2

10-167051 BOLT
SN# 0P513352 & Up

BOLT
SN# 0P513352 & Up
3

11-853722022 NUT

NUT
4

10-17640001 SHOULDER SCREW

SHOULDER SCREW
5

26-16219 SEAL

SEAL
6

23-16220 BUSHING

BUSHING
7

853739003 BRACKET

BRACKET
8

10-8230427 BOLT

BOLT
9

898101905 LEVER, Throttle
Bigfoot SN# 0R192772 & Up

LEVER, Throttle
Bigfoot SN# 0R192772 & Up
9

898101905 LEVER, Throttle
Bigfoot SN# 0P513352 & Up

LEVER, Throttle
Bigfoot SN# 0P513352 & Up
10

23-8537154 SPACER

SPACER
11

12-898101218 WASHER, Plastic
SN# 0R192772 & Up

WASHER, Plastic
SN# 0R192772 & Up
11

12-898101218 WASHER, Plastic
SN# 0P513352 & Up

WASHER, Plastic
SN# 0P513352 & Up
12

54-8M0021224 COTTER PIN
SN# 0R192772 & Up

COTTER PIN
SN# 0R192772 & Up
12

54-8M0021224 COTTER PIN
SN# 0P513352 & Up

COTTER PIN
SN# 0P513352 & Up
13

803574001 ROD, Throttle

ROD, Throttle
14

10-8M0124428 BOLT

BOLT
15

12-953921 WASHER

WASHER
16

13-16221 WAVE WASHER

WAVE WASHER
17

898101903 ARM, Shift
SN# 0R192772 & Up

ARM, Shift
SN# 0R192772 & Up
17

898101903 ARM, Shift
SN# 0P513352 & Up

ARM, Shift
SN# 0P513352 & Up
18

10-8230427 BOLT

BOLT
19

12-161404 WASHER

WASHER
20

18-8150262 COTTER PIN
SN# 0R192771 & Below

COTTER PIN
SN# 0R192771 & Below
20

18-8150262 COTTER PIN
SN# 0P513351 & Below

COTTER PIN
SN# 0P513351 & Below
20

54-8M0021224 COTTER PIN
SN# 0R192772 & Up

COTTER PIN
SN# 0R192772 & Up
20

54-8M0021224 COTTER PIN
SN# 0P513352 & Up

COTTER PIN
SN# 0P513352 & Up
21

892774 ROD, Shift Lever

ROD, Shift Lever
22

892775 JOINT, Cable

JOINT, Cable
23

11-16081 NUT

NUT
24

12-953925 WASHER
SN# 0R192771 & Below

WASHER
SN# 0R192771 & Below
24

12-953925 WASHER
SN# 0P513351 & Below

WASHER
SN# 0P513351 & Below
24

12-898101218 WASHER, Plastic
SN# 0R192772 & Up

WASHER, Plastic
SN# 0R192772 & Up
24

12-898101218 WASHER, Plastic
SN# 0P513352 & Up

WASHER, Plastic
SN# 0P513352 & Up
25

803875001 BRACKET
SN# 0R192771 & Below

BRACKET
SN# 0R192771 & Below
25

803875001 BRACKET
SN# 0P513351 & Below

BRACKET
SN# 0P513351 & Below
26

804892001 DRUM, Throttle
Non Bigfoot

DRUM, Throttle
Non Bigfoot
26

804892004 DRUM, Throttle
Bigfoot SN# 0R192771 & Below

DRUM, Throttle
Bigfoot SN# 0R192771 & Below
26

804892004 DRUM, Throttle
SN# 0P513351 & Below

DRUM, Throttle
SN# 0P513351 & Below
27

8M0079131 SOCKET, Cable Joint
SN# 0R192771 & Below

SOCKET, Cable Joint
SN# 0R192771 & Below
27

8M0079131 SOCKET, Cable Joint
SN# 0P513351 & Below

SOCKET, Cable Joint
SN# 0P513351 & Below
28

12-953925 WASHER
SN# 0R192771 & Below

WASHER
SN# 0R192771 & Below
28

12-953925 WASHER
SN# 0P513351 & Below

WASHER
SN# 0P513351 & Below
29

18-8150262 COTTER PIN
SN# 0R192771 & Below

COTTER PIN
SN# 0R192771 & Below
29

18-8150262 COTTER PIN
SN# 0P513351 & Below

COTTER PIN
SN# 0P513351 & Below
30

892773 SHIFT ARM
Non Bigfoot

SHIFT ARM
Non Bigfoot
30

892773001 SHIFT ARM
Bigfoot SN# 0R192771 & Below

SHIFT ARM
Bigfoot SN# 0R192771 & Below
30

892773001 SHIFT ARM
Bigfoot SN# 0P513351 & Below

SHIFT ARM
Bigfoot SN# 0P513351 & Below
