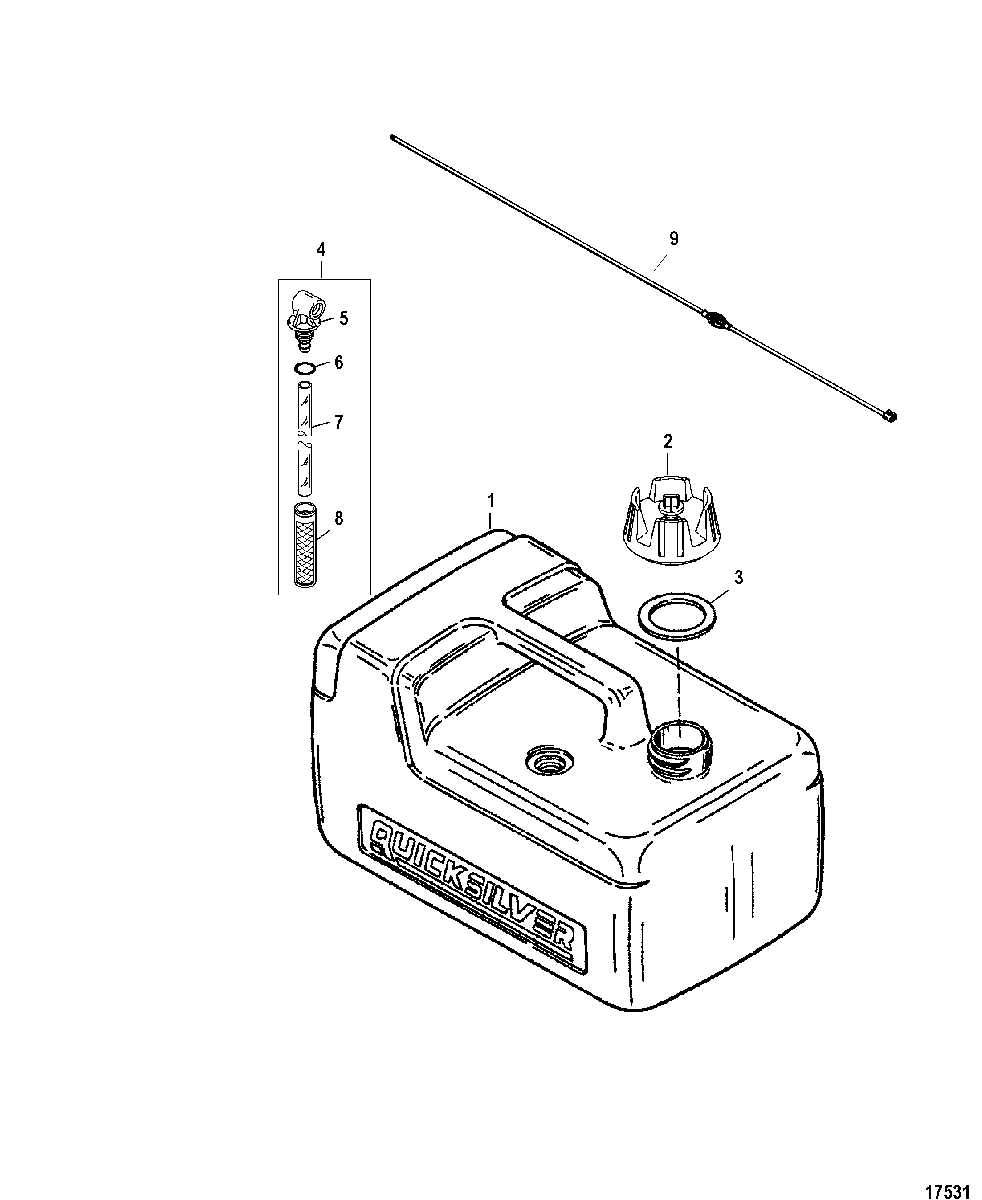

Fuel Tank для Mariner - 9.9 (4-STROKE)(209cc) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    1260-859060A2 TANK ASSEMBLY, Fuel
    TANK ASSEMBLY, Fuel
  • 2
    36-816976Q1 CAP ASSEMBLY, Fuel-Manual Vent
    CAP ASSEMBLY, Fuel-Manual Vent
  • 3
    27-8169771 GASKET, Fuel Cap
    GASKET, Fuel Cap
  • 4
    22-823531A1 CONNECTOR KIT, Fuel
    CONNECTOR KIT, Fuel
  • 5
    NSS NOT SOLD SEPARATE, Connector
    NOT SOLD SEPARATE, Connector
  • 6
    25-823533 O-RING
    O-RING
  • 7
    NSS NOT SOLD SEPARATE, Tube
    NOT SOLD SEPARATE, Tube
  • 8
    35-823534 SCREEN
    SCREEN
  • 9
    32-8M0044830 HOSE ASSEMBLY, Fuel (8 Feet) - With Quick Disconnect Engine End Only (Non-Permeable)
    HOSE ASSEMBLY, Fuel (8 Feet) - With Quick Disconnect Engine End Only (Non-Permeable)
  • 9
    32-858610A38 HOSE ASSEMBLY, Fuel (Permeable)
    Not for use in USA after 2009
    HOSE ASSEMBLY, Fuel (Permeable)
    Not for use in USA after 2009
