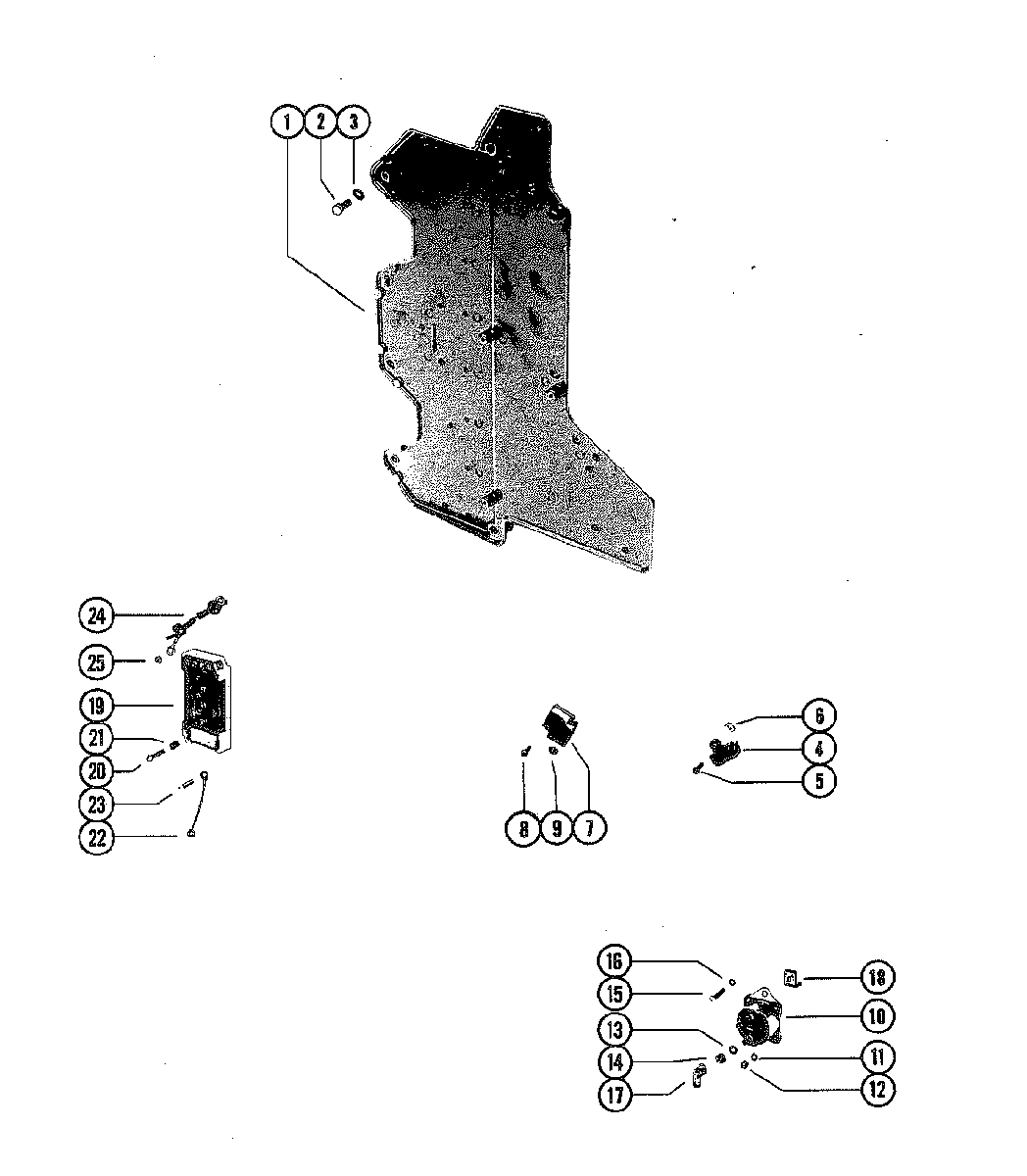

SWITCH BOX AND STARTER SOLENOID для Mariner - 90 (6 CYL.) 5721325 THRU 6436122

  • №
    Артикул
    Название
  • 1
    89748T PLATE, ELECTRICAL MOUNTING
    PLATE, ELECTRICAL MOUNTING
  • 2
    10-86885 SCREW, PLATE TO CYLINDER BLOCK (1-1/2")
    SCREW, PLATE TO CYLINDER BLOCK (1-1/2")
  • 2
    10-28636 SCREW, PLATE TO CYLINDER BLOCK (3/4")
    SCREW, PLATE TO CYLINDER BLOCK (3/4")
  • 2
    10-455611 SCREW, PLATE TO CYLINDER BLOCK (1-1/8")
    SCREW, PLATE TO CYLINDER BLOCK (1-1/8")
  • 3
    12-29245 WASHER, PLATE SCREW
    WASHER, PLATE SCREW
  • 4
    87-33386A3 SWITCH ASSEMBLY, MERCURY
    SWITCH ASSEMBLY, MERCURY
  • 5
    10-25764 SCREW, MERCURY SWITCH TO PLATE (5/8")
    SCREW, MERCURY SWITCH TO PLATE (5/8")
  • 6
    11-45076 NUT, WIRE TO MERCURY SWITCH
    NUT, WIRE TO MERCURY SWITCH
  • 7
    8M0058226 RECTIFIER
    RECTIFIER
  • 8
    10-25764 SCREW, RECTIFIER TO IGNITION PLATE (5/8")
    SCREW, RECTIFIER TO IGNITION PLATE (5/8")
  • 9
    11-45076 NUT, RECTIFIER TERMINALS
    NUT, RECTIFIER TERMINALS
  • 10
    89-853654A1 STARTER SOLENOID
    UNITED STATES 6038185 AND BELOW
    STARTER SOLENOID
    UNITED STATES 6038185 AND BELOW
  • 11
    13-26996 LOCKWASHER, SOLENOID TERMINALS (#10)
    UNITED STATES 6038185 AND BELOW
    LOCKWASHER, SOLENOID TERMINALS (#10)
    UNITED STATES 6038185 AND BELOW
  • 12
    11-68219 NUT, SOLENOID TERMINALS (10-32)
    UNITED STATES 6038185 AND BELOW
    NUT, SOLENOID TERMINALS (10-32)
    UNITED STATES 6038185 AND BELOW
  • 13
    13-26993 LOCKWASHER, SOLENOID TERMINALS (5/16")
    UNITED STATES 6038185 AND BELOW
    LOCKWASHER, SOLENOID TERMINALS (5/16")
    UNITED STATES 6038185 AND BELOW
  • 14
    11-68292 NUT, SOLENOID TERMINALS (5/16-18)
    UNITED STATES 6038185 AND BELOW
    NUT, SOLENOID TERMINALS (5/16-18)
    UNITED STATES 6038185 AND BELOW
  • 10
    89-96054T STARTER SOLENOID
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
    STARTER SOLENOID
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
  • 11
    13-26995 LOCKWASHER, SOLENOID TERMINALS (#8)
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
    LOCKWASHER, SOLENOID TERMINALS (#8)
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
  • 12
    11-26419 NUT, SOLENOID TERMINALS (8-32)
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
    NUT, SOLENOID TERMINALS (8-32)
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
  • 13
    13-26992 LOCKWASHER, SOLENOID TERMINALS (1/4")
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
    LOCKWASHER, SOLENOID TERMINALS (1/4")
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
  • 14
    11-94330 NUT, SOLENOID TERMINALS (1/4-20)
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
    NUT, SOLENOID TERMINALS (1/4-20)
    UNITED STATES 6038186 AND UP
    CANADA 7190903 AND UP
  • 15
    10-38601 SCREW, STARTER SOLENOID TO PLATE (1/2")
    SCREW, STARTER SOLENOID TO PLATE (1/2")
  • 16
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 17
    46265 BOOT, TERMINAL-STARTER SOLENOID
    BOOT, TERMINAL-STARTER SOLENOID
  • 18
    90547 LOCATOR, STARTER SOLENOID
    LOCATOR, STARTER SOLENOID
  • 19
    332-7778A12 SWITCH BOX
    SWITCH BOX
  • 20
    10-20619 SCREW, SWITCH BOX (1-3/8")
    SCREW, SWITCH BOX (1-3/8")
  • 21
    23-94304 SPACER, SWITCH BOX SCREW
    SPACER, SWITCH BOX SCREW
  • 22
    84-60871A10 WIRE ASSEMBLY, SWITCH BOX
    WIRE ASSEMBLY, SWITCH BOX
  • 23
    10-62568 SCREW, WIRE
    SCREW, WIRE
  • 24
    84-62310A3 CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX (WHITE/BLACK)
    CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX (WHITE/BLACK)
  • 25
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
