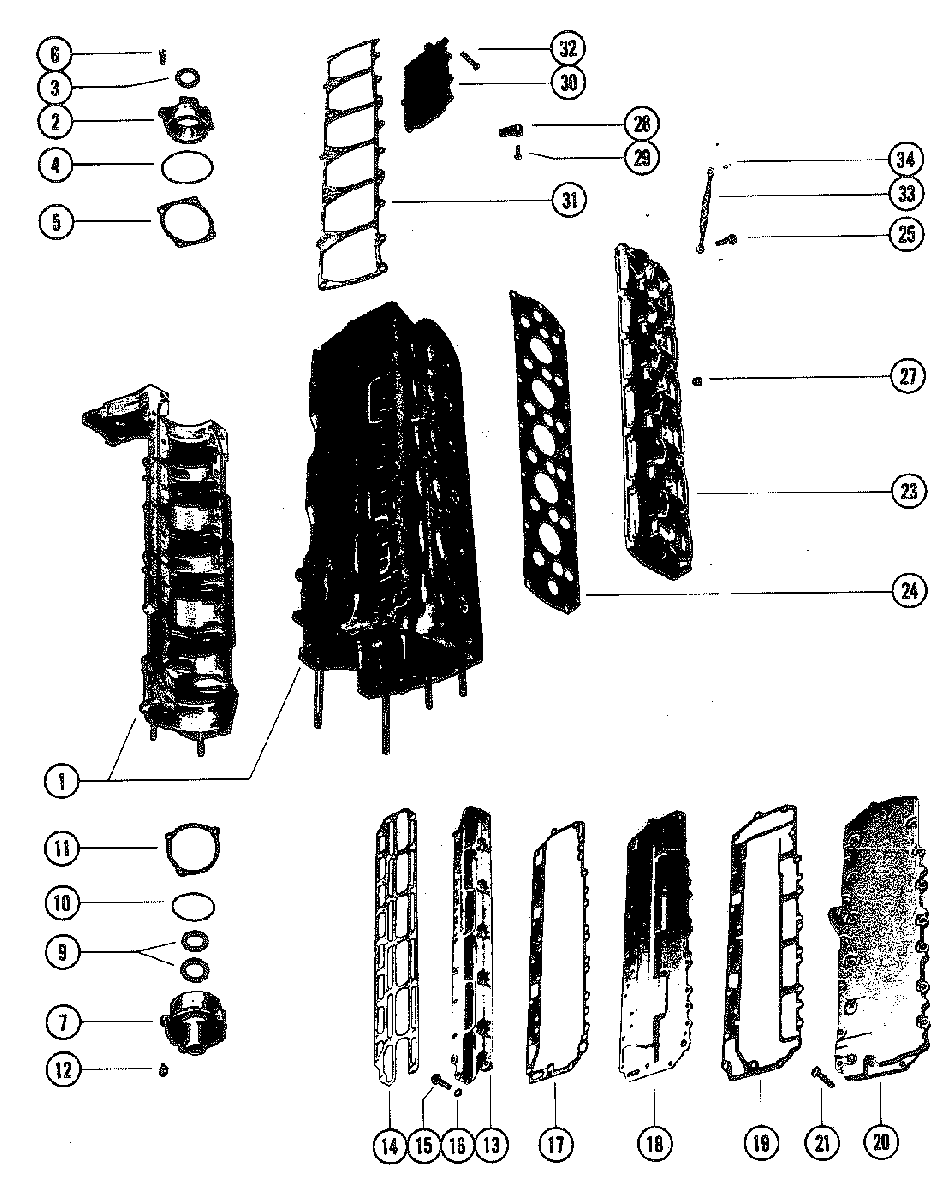

END CAPS, MANIFOLD AND EXHAUST COVERS для Mariner - 90 (6 CYL.) 5721325 THRU 6436122
-
№АртикулНазвание
-
1852-8311A4 BLOCK/CRANKCASE ASS'Y
UNITED STATES 6038185 AND BELOWBLOCK/CRANKCASE ASS'Y
UNITED STATES 6038185 AND BELOW -
1852-8311A4 BLOCK/CRANKCASE ASS'Y
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPBLOCK/CRANKCASE ASS'Y
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
21161-7616A2 END CAP ASSEMBLYEND CAP ASSEMBLY
-
326-41953 OIL SEAL, END CAPOIL SEAL, END CAP
-
425-47254 "O"RING"O"RING
-
515-73644A1 SHIM, END CAP (.006-10)SHIM, END CAP (.006-10)
-
610-812618 SCREW, END CAP (1")SCREW, END CAP (1")
-
71148-5410T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
926-41953 OIL SEAL, END CAPOIL SEAL, END CAP
-
1025-32546 "O"RING, END CAP"O"RING, END CAP
-
1115-20085A1 SHIM, END CAP (.005-10)SHIM, END CAP (.005-10)
-
1210-30225 SCREW, END CAP (1")SCREW, END CAP (1")
-
1371808 COVER, WATER JACKETCOVER, WATER JACKET
-
1427-721421 GASKET, WATER JACKET COVERGASKET, WATER JACKET COVER
-
1510-53167T SCREW, WATER JACKET COVER (7/8")SCREW, WATER JACKET COVER (7/8")
-
1612-8M0042642 WASHER, WATER JACKET COVER SCREWWASHER, WATER JACKET COVER SCREW
-
1727-854952 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
18757781 BAFFLE PLATE, EXHAUST MANIFOLDBAFFLE PLATE, EXHAUST MANIFOLD
-
1927-854972 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVERGASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
-
2099896A1 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2110-53576 SCREW, MANIFOLD COVERSCREW, MANIFOLD COVER
-
231023-8368A1 COVER, CYLINDER BLOCK
UNITED STATES 6038185 AND BELOWCOVER, CYLINDER BLOCK
UNITED STATES 6038185 AND BELOW -
2427-981853 GASKET, CYLINDER COVER
UNITED STATES 6038185 AND BELOWGASKET, CYLINDER COVER
UNITED STATES 6038185 AND BELOW -
231023-8368A1 COVER, CYLINDER BLOCK
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPCOVER, CYLINDER BLOCK
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
2427-981853 GASKET, CYLINDER BLOCK
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UPGASKET, CYLINDER BLOCK
UNITED STATES 6038186 AND UP
CANADA 7190903 AND UP -
2510-76630 SCREW, COVER (1")SCREW, COVER (1")
-
2722-68307 PIPE PLUG, CYLINDER BLOCK COVERPIPE PLUG, CYLINDER BLOCK COVER
-
2837440 BRACKET, MOUNT SUPPORTBRACKET, MOUNT SUPPORT
-
2910-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")SCREW, BRACKET TO CYLINDER BLOCK (1")
-
3087872 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
3127-856730 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
3210-28636 SCREW, TRANSFER PORT COVER (3/4")SCREW, TRANSFER PORT COVER (3/4")
-
3346933A3 GROUND STRAP ASSEMBLY, CYLINDER BLOCK COVERGROUND STRAP ASSEMBLY, CYLINDER BLOCK COVER
-
3410-62568 SCREW, GROUND STRAP (3/8")SCREW, GROUND STRAP (3/8")
