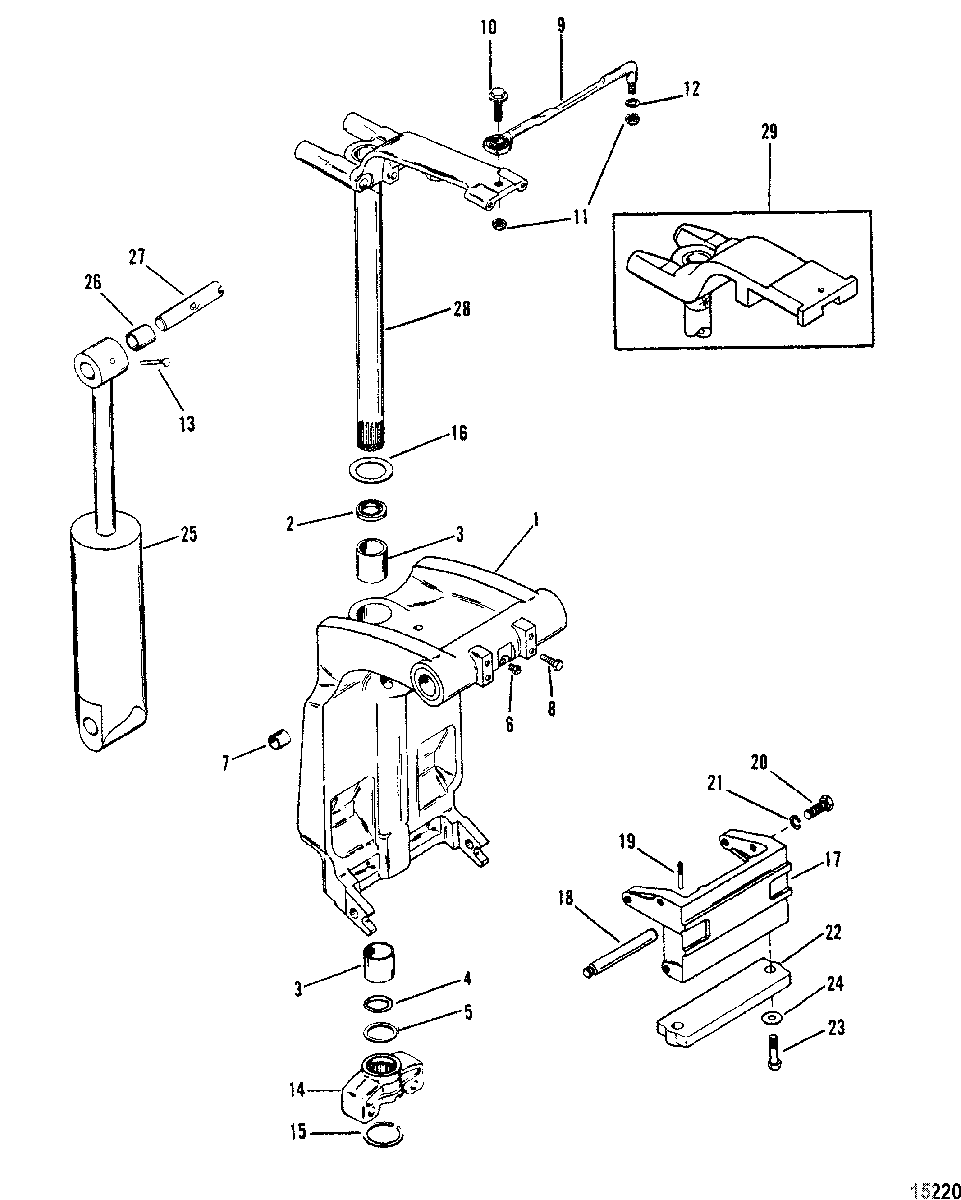

Swivel Bracket And Steering Arm(Casting Number 1499-8709C6) для Mariner - 90 (3 CYL.) 9589039 THRU 9793576
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BERACKET ASSEMBLY, Black
(Use With Non Power Trim And Three Ram Power Trim)SWIVEL BERACKET ASSEMBLY, Black
(Use With Non Power Trim And Three Ram Power Trim) -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, Gray
(Use With Non Power Trim And Three Ram Power Trim)SWIVEL BRACKET ASSEMBLY, Gray
(Use With Non Power Trim And Three Ram Power Trim) -
11400-8M0107419 SWIVEL BRACKET, Black
(Use With Single Ram Power Trim)SWIVEL BRACKET, Black
(Use With Single Ram Power Trim) -
13408-818904T2 SWIVEL BRACKET, Gray
(Use With Single Ram Power Trim)SWIVEL BRACKET, Gray
(Use With Single Ram Power Trim) -
226-87735 SEAL, Oil, LowerSEAL, Oil, Lower
-
323-818764 BUSHINGBUSHING
-
425-33504 O-RINGO-RING
-
523-816039 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
810-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
992876A12 STEERING LINK ASSEMBLYSTEERING LINK ASSEMBLY
-
1010-849838 SCREW, (.375-24 x 1.25), Non HandleSCREW, (.375-24 x 1.25), Non Handle
-
1111-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1212-34931 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1317-821539 PIN, TrilobePIN, Trilobe
-
1442961A06 BOTTOM YOKE, BlackBOTTOM YOKE, Black
-
1442961A06 BOTTOM YOKE MARINER, GrayBOTTOM YOKE MARINER, Gray
-
1553-67684 RETAINING RINGRETAINING RING
-
1612-816432 WASHER, ThrustWASHER, Thrust
-
1799653 BRACKETBRACKET
-
1899619 SHAFT, Lower, Not Used With Power TrimSHAFT, Lower, Not Used With Power Trim
-
1917-821539 PIN, TrilobePIN, Trilobe
-
2010-4000377 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
2113-400258 LOCKWASHERLOCKWASHER
-
2297-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
2310-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2412-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
2555-99724T15 SHOCK ABSORBER, Black
(No Stamping, Not Used With Power Trim)SHOCK ABSORBER, Black
(No Stamping, Not Used With Power Trim) -
2555-99724T15 SHOCK ABSORBER, Gray
(No Stamping, Not Used With Power Trim)SHOCK ABSORBER, Gray
(No Stamping, Not Used With Power Trim) -
2555-99724T15 SHOCK STAMPED A12, Black
(Not Used With Power Trim)SHOCK STAMPED A12, Black
(Not Used With Power Trim) -
2555-99724T15 SHOCK STAMPED A12, Gray
(Not Used With Power Trim)SHOCK STAMPED A12, Gray
(Not Used With Power Trim) -
2623-821207 BUSHINGBUSHING
-
2799625002 SHAFT, UpperSHAFT, Upper
-
2899661A35 SWIVEL PIN/STEERING ARM, BlackSWIVEL PIN/STEERING ARM, Black
-
2899661A35 SWIVEL PIN/STEERING ARM, GraySWIVEL PIN/STEERING ARM, Gray
-
2912079A8 SWIVEL PIN/STEERING ARM, Black
(Handle Models)SWIVEL PIN/STEERING ARM, Black
(Handle Models) -
2912079A9 SWIVEL PIN/STEERING ARM, Gray
(Handle Models)SWIVEL PIN/STEERING ARM, Gray
(Handle Models)
