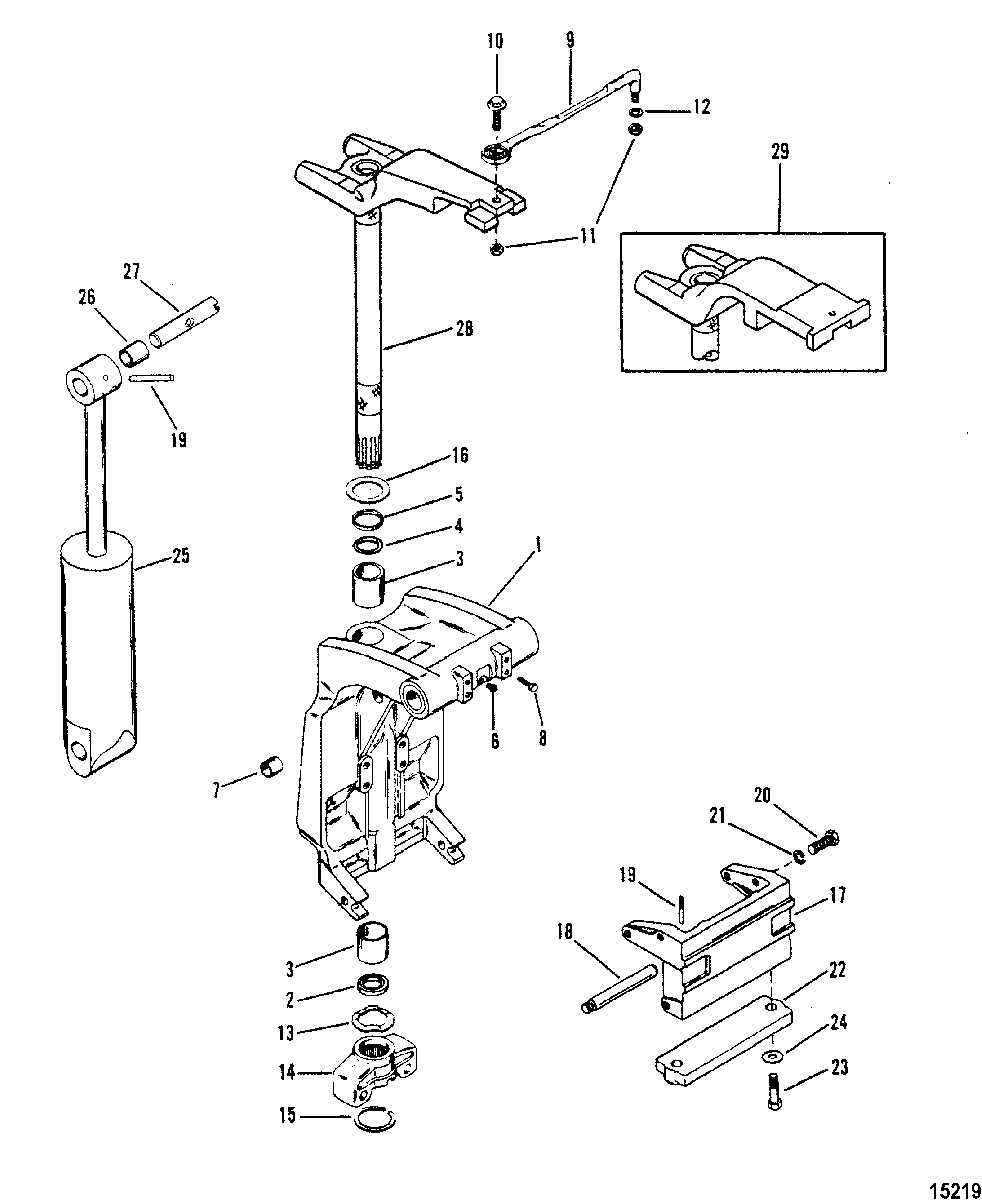

Swivel Bracket And Steering Arm(Casting Number 1499-8709C5) для Mariner - 90 (3 CYL.) 9589039 THRU 9793576

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BERACKET ASSEMBLY, Black
    SWIVEL BERACKET ASSEMBLY, Black
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY, Gray
    SWIVEL BRACKET ASSEMBLY, Gray
  • 2
    26-87735 SEAL, Oil, Lower
    SEAL, Oil, Lower
  • 3
    23-818764 BUSHING
    BUSHING
  • 4
    25-33466 O-RING
    O-RING
  • 5
    23-67668 SPACER
    SPACER
  • 6
    22-74036 FITTING, Grease
    FITTING, Grease
  • 7
    23-821207 BUSHING
    BUSHING
  • 8
    10-64014 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 9
    92876A12 STEERING LINK ASSEMBLY
    STEERING LINK ASSEMBLY
  • 10
    10-849838 SCREW, (.375-24 x 1.25), Non Handle
    SCREW, (.375-24 x 1.25), Non Handle
  • 11
    11-8M0042636 NUT, (.375-24)
    NUT, (.375-24)
  • 12
    12-34931 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 13
    13-78854 WAVE WASHER
    WAVE WASHER
  • 14
    42961A06 BOTTOM YOKE, Black
    BOTTOM YOKE, Black
  • 14
    42961A06 BOTTOM YOKE MARINER, Gray
    BOTTOM YOKE MARINER, Gray
  • 15
    53-67684 RETAINING RING
    RETAINING RING
  • 16
    12-67670 WASHER
    WASHER
  • 17
    99653 BRACKET, Not Used With Power Trim
    BRACKET, Not Used With Power Trim
  • 18
    99619 SHAFT, Lower, Not Used With Power Trim
    SHAFT, Lower, Not Used With Power Trim
  • 19
    17-821539 PIN, Trilobe, Not Used With Power Trim
    PIN, Trilobe, Not Used With Power Trim
  • 20
    10-4000377 SCREW, (M10 x 30), Not Used With Power Trim
    SCREW, (M10 x 30), Not Used With Power Trim
  • 21
    13-400258 LOCKWASHER, Not Used With Power Trim
    LOCKWASHER, Not Used With Power Trim
  • 22
    97-818298Q1 ANODE ASSEMBLY, Not Used With Power Trim
    ANODE ASSEMBLY, Not Used With Power Trim
  • 23
    10-4000332 SCREW, (M6 x 35), Not Used With Power Trim
    SCREW, (M6 x 35), Not Used With Power Trim
  • 24
    12-29245 WASHER, (.281 x .500 x .060), Not Used With Power Trim
    WASHER, (.281 x .500 x .060), Not Used With Power Trim
  • 25
    55-99724T15 SHOCK ABSORBER, Not Used With Power Trim
    (Black)
    SHOCK ABSORBER, Not Used With Power Trim
    (Black)
  • 25
    55-99724T15 SHOCK ABSORBER, Not Used With Power Trim
    (Gray)
    SHOCK ABSORBER, Not Used With Power Trim
    (Gray)
  • 26
    23-821207 BUSHING, Not Used With Power Trim
    BUSHING, Not Used With Power Trim
  • 27
    99625002 SHAFT, Upper
    SHAFT, Upper
  • 28
    99661A35 SWIVEL PIN/STEERING ARM, Black
    SWIVEL PIN/STEERING ARM, Black
  • 28
    99661A35 SWIVEL PIN/STEERING ARM, Gray
    SWIVEL PIN/STEERING ARM, Gray
  • 29
    12079A8 SWIVEL PIN/STEERING ARM
    (Handle Models, Black)
    SWIVEL PIN/STEERING ARM
    (Handle Models, Black)
  • 29
    12079A9 SWIVEL PIN/STEERING ARM
    (Handle Models, Gray)
    SWIVEL PIN/STEERING ARM
    (Handle Models, Gray)
