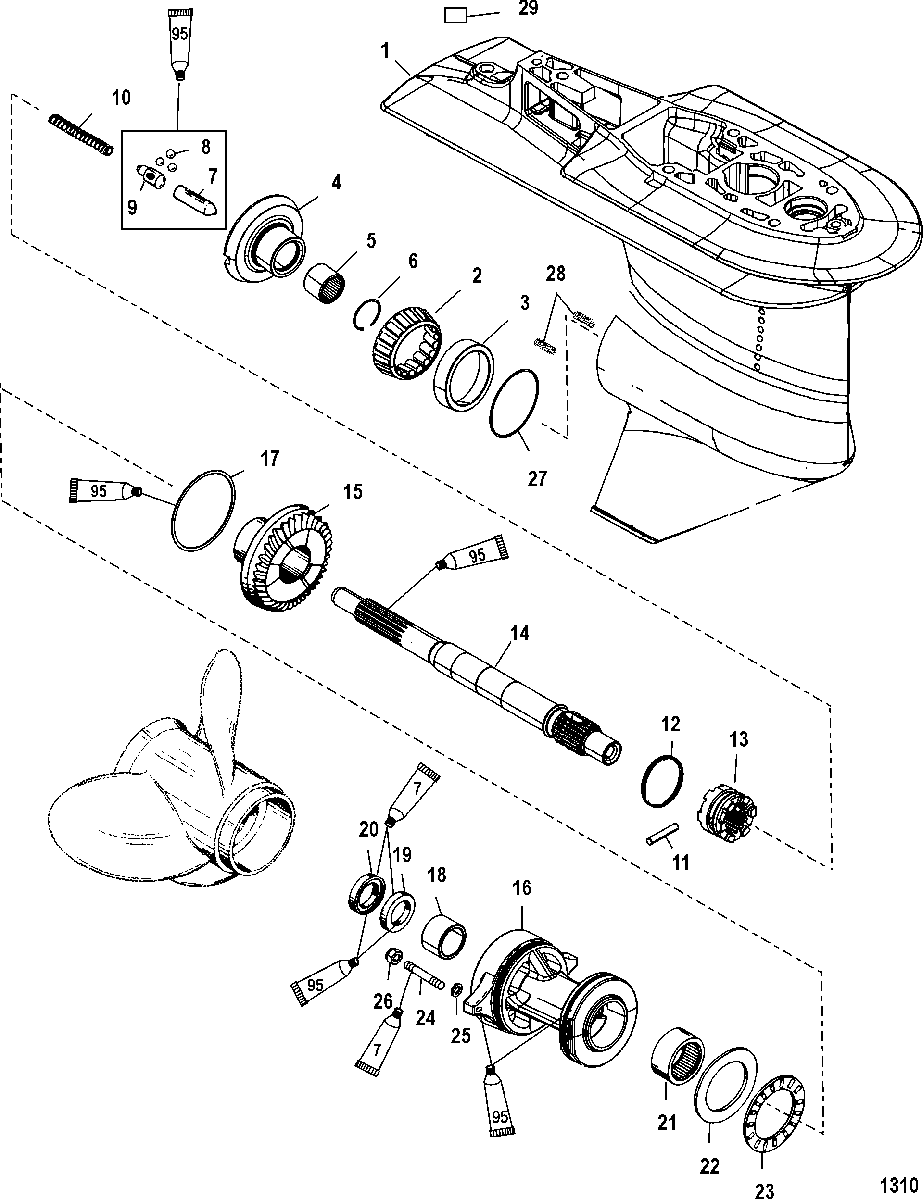

Gear Housing, Propeller Shaft - 2.31:1 Gear Ratio для Mariner - 90 (3 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
-1667-9011J15 GEAR HOUSING ASSEMBLY, Complete
(L=20 Inch Model)GEAR HOUSING ASSEMBLY, Complete
(L=20 Inch Model) -
-1667-9011J21 GEAR HOUSING ASSEMBLY, Complete
(LL=22.5 Inch Model)GEAR HOUSING ASSEMBLY, Complete
(LL=22.5 Inch Model) -
-1667-9011J23 GEAR HOUSING ASSEMBLY, Complete
(XL=25 Inch Model)GEAR HOUSING ASSEMBLY, Complete
(XL=25 Inch Model) -
11667-9011G59 GEAR HOUSING ASSEMBLY, Basic, Torpedo Diameter - 4.25 Inch / 107.95 mmGEAR HOUSING ASSEMBLY, Basic, Torpedo Diameter - 4.25 Inch / 107.95 mm
-
231-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
3NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
443-882813A3 GEAR KIT, Forward And Pinion 28 TeethGEAR KIT, Forward And Pinion 28 Teeth
-
531-30895T BEARING, NeedleBEARING, Needle
-
653-856823 RING, RetainingRING, Retaining
-
7850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
830-44530 BALLBALL
-
9NSS NOT SOLD SEPARATE, SlideNOT SOLD SEPARATE, Slide
-
1024-850327 SPRINGSPRING
-
1117-8M0100263 PIN, CrossPIN, Cross
-
1224-30893 SPRINGSPRING
-
1352-850048T CLUTCHCLUTCH
-
1444-8M0140445 PROPELLER SHAFTPROPELLER SHAFT
-
1543-882814T GEAR, Reverse - 28 TeethGEAR, Reverse - 28 Teeth
-
1612596T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
1725-861844 O-RING, (3.609 x .139)O-RING, (3.609 x .139)
-
1831-30956T BEARING, NeedleBEARING, Needle
-
1926-70080 SEAL, Oil, InnerSEAL, Oil, Inner
-
2026-70081 SEAL, Oil, OuterSEAL, Oil, Outer
-
2131-12578T BEARING, RollerBEARING, Roller
-
2212-12577 THRUST WASHERTHRUST WASHER
-
2331-12576 BEARING, ThrustBEARING, Thrust
-
2416-8M0034456 STUD, (M8 x 48)STUD, (M8 x 48)
-
2512-855941 WASHER, (.323 x .590 x .112) Stainless SteelWASHER, (.323 x .590 x .112) Stainless Steel
-
2611-401378 NUT, (M8)NUT, (M8)
-
2715-8M0063266 SHIM SETSHIM SET
-
288227731 INSERT, ThreadedINSERT, Threaded
-
29NSS NOT SOLD SEPARATE, Decal-Pinion IndentificationNOT SOLD SEPARATE, Decal-Pinion Indentification
-
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-27-13461A99 GASKET SETGASKET SET
