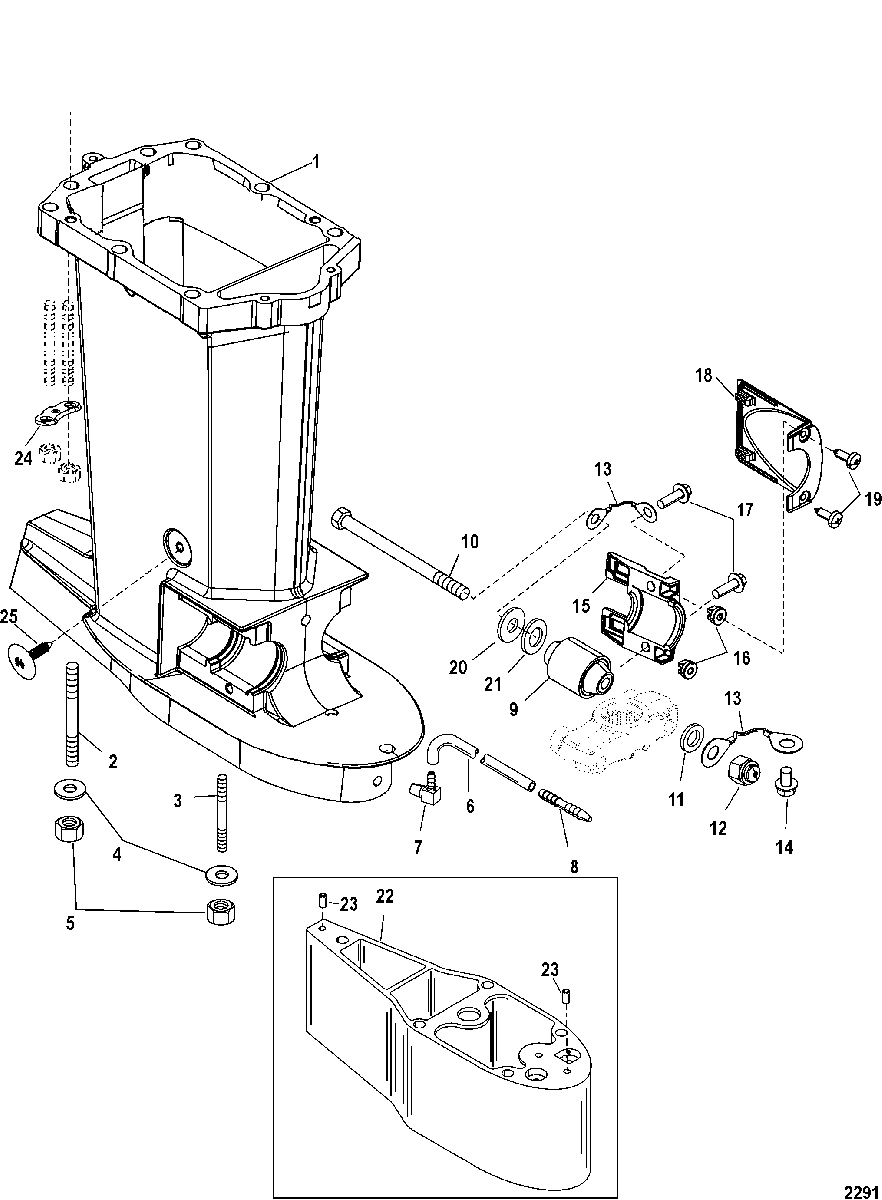

Driveshaft Housing для Mariner - 90 (3 CYL.) 0T980000 THRU 0T999999

  • №
    Артикул
    Название
  • 1
    1598-881913T01 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 1
    1598-881913T02 HOUSING ASSEMBLY, Driveshaft
    (Jet)
    HOUSING ASSEMBLY, Driveshaft
    (Jet)
  • 2
    16-903501 STUD, (M10 x 100)
    (L=20 Inch Model)
    STUD, (M10 x 100)
    (L=20 Inch Model)
  • 2
    16-8M0034445 STUD, (M10 x 166)
    (LL=22.5 Inch Model)
    STUD, (M10 x 166)
    (LL=22.5 Inch Model)
  • 2
    16-8M0034467 STUD, (M10 x 227)
    (X-Long=25 Inch Model)
    STUD, (M10 x 227)
    (X-Long=25 Inch Model)
  • 3
    16-9035012 STUD, (M10 x 63)
    (L=20 Inch Model)
    STUD, (M10 x 63)
    (L=20 Inch Model)
  • 3
    16-8M0034446 STUD, (M10 x 124)
    (LL=22.5 Inch Model)
    STUD, (M10 x 124)
    (LL=22.5 Inch Model)
  • 3
    16-8M0034462 STUD, (M10 x 190)
    (X-Long=25 Inch Model)
    STUD, (M10 x 190)
    (X-Long=25 Inch Model)
  • 4
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 5
    11-40140 NUT, (M10)
    NUT, (M10)
  • 6
    22-85822A4 PICKUP ASSEMBLY, Speedometer
    PICKUP ASSEMBLY, Speedometer
  • 7
    22-433351 CONNECTOR, 90 Degree (.125-27) Nylon
    CONNECTOR, 90 Degree (.125-27) Nylon
  • 8
    22-85822T CONNECTOR, Straight
    CONNECTOR, Straight
  • 9
    881916 MOUNT
    MOUNT
  • 10
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 11
    12-30119 WASHER, (.875 Inch Outside Diameter)
    WASHER, (.875 Inch Outside Diameter)
  • 12
    11-43528 NUT, (M12)
    NUT, (M12)
  • 13
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 14
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 15
    8M0036786 CLAMP
    CLAMP
  • 16
    11-35521 NUT
    NUT
  • 17
    10-889833025 SCREW, (M8 x 25 MM)
    SCREW, (M8 x 25 MM)
  • 18
    100-8M4500754 COVER
    COVER
  • 19
    10-88417 SCREW, (#12-24 x .620)
    SCREW, (#12-24 x .620)
  • 20
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 21
    12-881976 WASHER, Neoprene
    WASHER, Neoprene
  • 22
    12092A3 SPACER KIT
    (X-Long=25 Inch Model)
    SPACER KIT
    (X-Long=25 Inch Model)
  • 22
    816696T7 SPACER
    (LL=22.5 Inch Model)
    SPACER
    (LL=22.5 Inch Model)
  • 23
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    (LL/XL)(Rear)
    PIN, Dowel - Without Hole (.375 x .625)
    (LL/XL)(Rear)
  • 23
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625) (With Hole)
    (LL/XL)(Front)
    PIN, Dowel - With Hole (.375 x .625) (With Hole)
    (LL/XL)(Front)
  • 24
    892214 PLATE WASHER
    PLATE WASHER
  • 25
    19-8M0026580 PLUG, Driveshaft Housing
    PLUG, Driveshaft Housing
