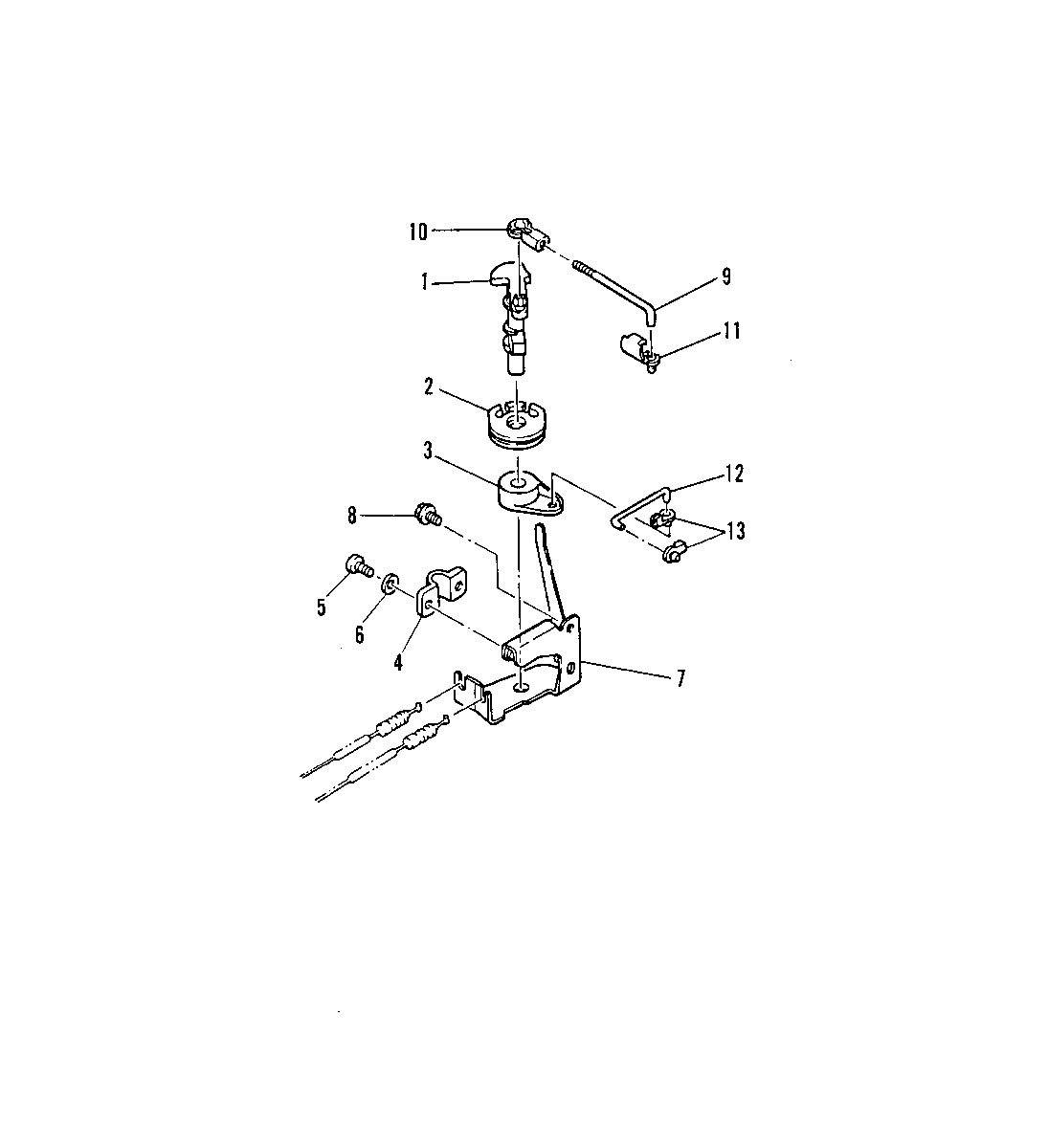

THROTTLE LINKAGE для Mariner - 8C 6G1-700388 THRU 700865

  • №
    Артикул
    Название
  • 1
    11503M LEVER, MAGNETO CONTROL
    LEVER, MAGNETO CONTROL
  • 2
    11504M PULLEY
    PULLEY
  • 3
    11950M LEVER, FREE ACCEL.
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    LEVER, FREE ACCEL.
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 3
    11950M LEVER, FREE ACCEL.
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    LEVER, FREE ACCEL.
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 4
    11506M BRACKET
    BRACKET
  • 5
    10-83523M SCREW
    SCREW
  • 6
    12-82211M WASHER
    WASHER
  • 7
    11951M BRACKET, THROTTLE WIRE
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
    BRACKET, THROTTLE WIRE
    (8MUL-6G1-700427) AND ABOVE SERIAL 00000557-09999999
  • 7
    11507M BRACKET, THROTTLE WIRE
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
    BRACKET, THROTTLE WIRE
    (8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556
  • 8
    10-95456M BOLT
    BOLT
  • 9
    11508M ROD
    ROD
  • 10
    16715M END, ROD
    END, ROD
  • 11
    97742M LINK
    LINK
  • 12
    11509M ROD, ACCEL.
    ROD, ACCEL.
  • 13
    16333 LINK, CHOKE LEVER
    LINK, CHOKE LEVER
