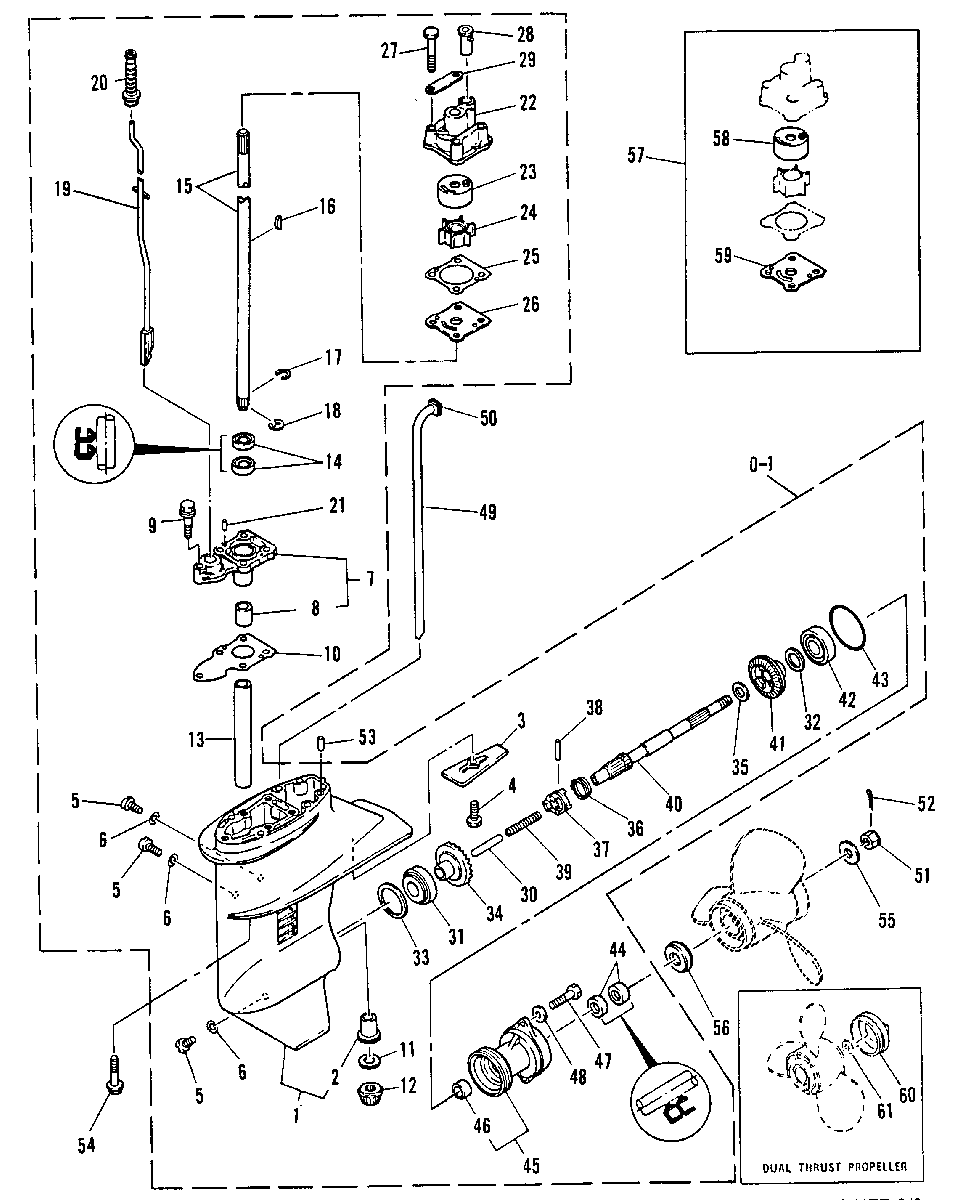

GEARHOUSING ASSEMBLY для Mariner - 8C 6G1-700388 THRU 700865

  • №
    Артикул
    Название
  • 0-1
    1651-9314M GEARHOUSING ASS'Y (SHORT SHAFT)
    GEARHOUSING ASS'Y (SHORT SHAFT)
  • 0-1
    1651-9315M GEARHOUSING ASS'Y (LONG SHAFT)
    GEARHOUSING ASS'Y (LONG SHAFT)
  • 1
    1651-9316M GEARHOUSING
    GEARHOUSING
  • 2
    23-11570M BUSHING, DDRIVE SHAFT
    BUSHING, DDRIVE SHAFT
  • 3
    97-14205M ANODE
    SERIAL 00006037-09999999
    ANODE
    SERIAL 00006037-09999999
  • 3
    97-14205M ANODE
    SERIAL 00000000-00006036
    ANODE
    SERIAL 00000000-00006036
  • 4
    10-91772M BOLT
    BOLT
  • 5
    22-81924M SCREW
    SCREW
  • 6
    27-81987 GASKET
    GASKET
  • 7
    8M0119489 HOUSING, BEARING
    HOUSING, BEARING
  • 8
    23-11573M BUSHING
    BUSHING
  • 9
    10-83285M BOLT
    BOLT
  • 10
    27-11574M GASKET,LOWER CASING
    GASKET,LOWER CASING
  • 11
    12-11575M WASHER, THRUST (0.8MM)
    WASHER, THRUST (0.8MM)
  • 11
    12-11576M WASHER, THRUST (1.0MM)
    WASHER, THRUST (1.0MM)
  • 11
    12-11577M WASHER, THRUST (1.2MM)
    WASHER, THRUST (1.2MM)
  • 11
    12-11578M WASHER, THRUST (1.4MM)
    WASHER, THRUST (1.4MM)
  • 12
    43-11579M GEAR, PINION
    GEAR, PINION
  • 13
    23-11580M COLLAR
    COLLAR
  • 14
    26-11464M OIL SEAL
    OIL SEAL
  • 15
    45-11581M DRIVE SHAFT COMP. (SHORT)
    DRIVE SHAFT COMP. (SHORT)
  • 15
    45-11582M DRIVE SHAFT COMP. (LONG)
    DRIVE SHAFT COMP. (LONG)
  • 15
    45-11583M DRIVE SHAFT COMP. (ULTRA LONG)
    DRIVE SHAFT COMP. (ULTRA LONG)
  • 16
    28-81912M KEY, WATER PUMP
    KEY, WATER PUMP
  • 17
    53-11584M CLIP
    CLIP
  • 18
    53-82331M SNAP RING
    SNAP RING
  • 19
    14206M SHIFT CAM ASS'Y (SHORT)
    SERIAL 00006037-09999999
    SHIFT CAM ASS'Y (SHORT)
    SERIAL 00006037-09999999
  • 19
    14206M SHIFT CAM ASS'Y (SHORT)
    SERIAL 00000000-00006036
    SHIFT CAM ASS'Y (SHORT)
    SERIAL 00000000-00006036
  • 19
    14207M SHIFT CAM ASS'Y (LONG)
    SERIAL 00006037-09999999
    SHIFT CAM ASS'Y (LONG)
    SERIAL 00006037-09999999
  • 19
    14207M SHIFT CAM ASS'Y (LONG)
    SERIAL 00000000-00006036
    SHIFT CAM ASS'Y (LONG)
    SERIAL 00000000-00006036
  • 19
    14208M SHIFT CAM ASS'Y (ULTRA LONG)
    SERIAL 00006037-09999999
    SHIFT CAM ASS'Y (ULTRA LONG)
    SERIAL 00006037-09999999
  • 19
    14208M SHIFT CAM ASS'Y (ULTRA LONG)
    SERIAL 00000000-00006036
    SHIFT CAM ASS'Y (ULTRA LONG)
    SERIAL 00000000-00006036
  • 20
    15304M BOOT, SHIFT ROD
    BOOT, SHIFT ROD
  • 21
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 22
    8M0121497 HOUSING, WATER PUMP
    HOUSING, WATER PUMP
  • 23
    11589M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 24
    47-11590M IMPELLER
    IMPELLER
  • 25
    27-11591 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 26
    11592M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 27
    10-84657M BOLT
    BOLT
  • 28
    26-80532M RUBBER, WATER SEAL
    RUBBER, WATER SEAL
  • 29
    11593M PLATE
    PLATE
  • 30
    11594M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 31
    31-84805T BEARING, FORWARD GEAR
    BEARING, FORWARD GEAR
  • 32
    15-80543M SHIM, GEAR ADJUST (0.1MM)
    SHIM, GEAR ADJUST (0.1MM)
  • 33
    15-81638M SHIM, GEAR ADJUST (0.3MM)
    SHIM, GEAR ADJUST (0.3MM)
  • 33
    15-81639M SHIM, GEAR ADJUST (0.5MM)
    SHIM, GEAR ADJUST (0.5MM)
  • 33
    15-19118M SHIM, GEAR ADJUST (0.1MM)
    SHIM, GEAR ADJUST (0.1MM)
  • 33
    15-19121M SHIM, GEAR ADJUST (0.3MM)
    SHIM, GEAR ADJUST (0.3MM)
  • 33
    15-19123001 SHIM, GEAR ADJUST (0.5MM)
    SHIM, GEAR ADJUST (0.5MM)
  • 34
    43-11595M GEAR ASS'Y, FORWARD
    GEAR ASS'Y, FORWARD
  • 35
    12-11596M WASHER
    WASHER
  • 36
    53-81013M RING, CROSS PIN
    RING, CROSS PIN
  • 37
    52-11597M CLUTCH, DOG
    CLUTCH, DOG
  • 38
    17-11598M PIN, CROSS
    PIN, CROSS
  • 39
    24-14209M SPRING
    SERIAL 00006037-09999999
    SPRING
    SERIAL 00006037-09999999
  • 39
    24-82077M SPRING
    SERIAL 00000000-00006036
    SPRING
    SERIAL 00000000-00006036
  • 40
    44-11599M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 41
    43-11647M GEAR ASS'Y, REVERSE
    GEAR ASS'Y, REVERSE
  • 42
    30-82291T BEARING, REVERSE GEAR
    BEARING, REVERSE GEAR
  • 43
    25-82281M O-RING
    O-RING
  • 44
    26-82226M OIL SEAL
    OIL SEAL
  • 45
    11648M CAP, LOWER CASING
    CAP, LOWER CASING
  • 46
    23-11649M BUSHING
    BUSHING
  • 47
    10-826957M BOLT
    BOLT
  • 48
    12-82214M WASHER
    WASHER
  • 49
    32-11650M TUBE, WATER (SHORT 373MM)
    TUBE, WATER (SHORT 373MM)
  • 49
    32-11651M TUBE, WATER (LONG 513MM)
    TUBE, WATER (LONG 513MM)
  • 49
    32-11652M TUBE, WATER (ULTRA LONG 563MM)
    TUBE, WATER (ULTRA LONG 563MM)
  • 50
    26-852859 WATER SEAL
    WATER SEAL
  • 51
    859933 NUT, PROPELLER
    NUT, PROPELLER
  • 52
    18-815026 PIN, COTTER
    PIN, COTTER
  • 53
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 54
    10-11561M BOLT
    BOLT
  • 55
    859894 WASHER
    WASHER
  • 56
    23-11654M SPACER
    SPACER
  • 57
    11657M CHROME PUMP KIT
    OPTIONAL PARTS
    CHROME PUMP KIT
    OPTIONAL PARTS
  • 58
    11658M INSERT, CARTRIDGE
    OPTIONAL PARTS
    INSERT, CARTRIDGE
    OPTIONAL PARTS
  • 59
    11659M OUTER PLATE, CARTRIDGE
    OPTIONAL PARTS
    OUTER PLATE, CARTRIDGE
    OPTIONAL PARTS
  • 60
    11955M RING, PROPELLER FOR DUAL THRUST PROP
    OPTIONAL PARTS
    RING, PROPELLER FOR DUAL THRUST PROP
    OPTIONAL PARTS
  • 61
    12-84974M WASHER FOR DUAL THRUST PROP
    OPTIONAL PARTS
    WASHER FOR DUAL THRUST PROP
    OPTIONAL PARTS
  • 61
    27-11655M GASKET SET, LOWER UNIT
    REPLACEMENT PARTS
    GASKET SET, LOWER UNIT
    REPLACEMENT PARTS
  • 61
    11656T REPAIR KIT, WATER PUMP
    REPLACEMENT PARTS
    REPAIR KIT, WATER PUMP
    REPLACEMENT PARTS
