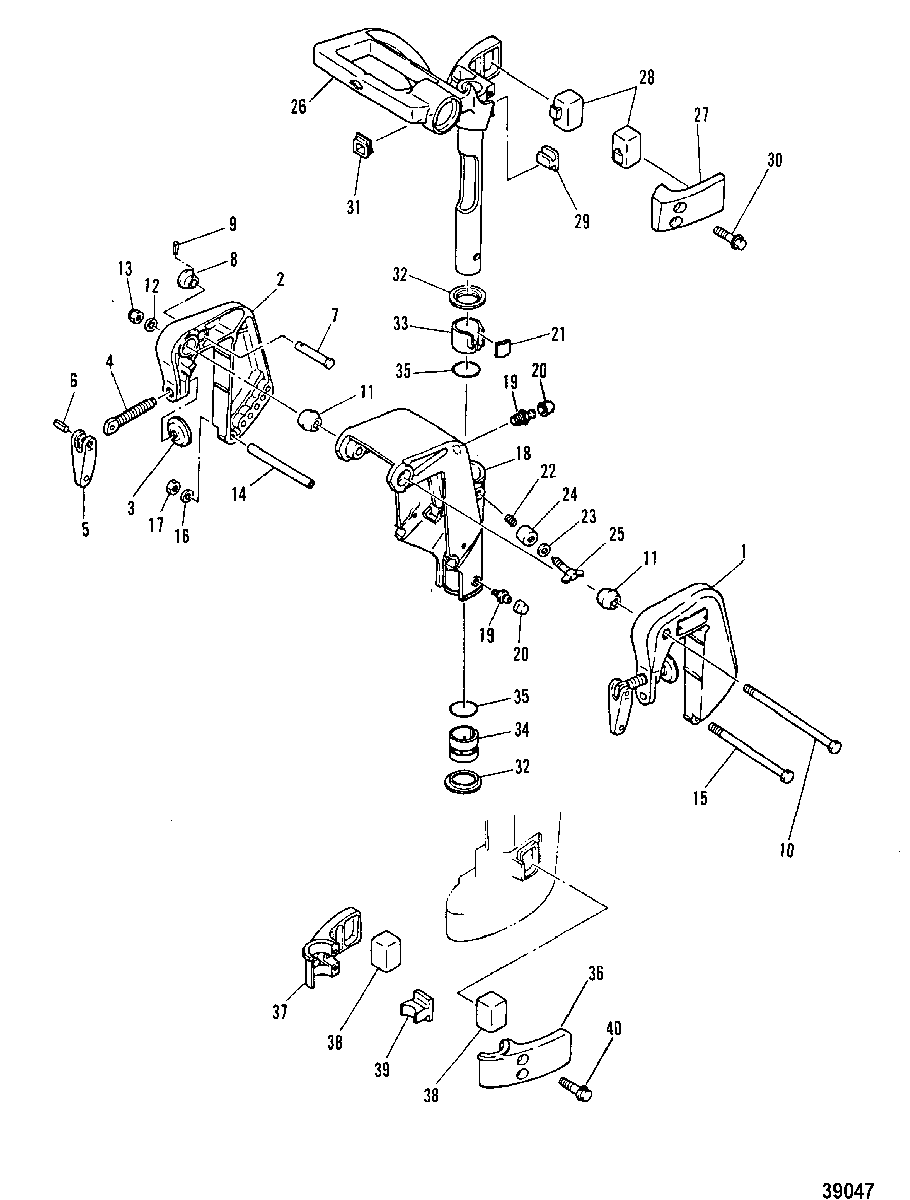

CLAMP AND SWIVEL BRACKET для Mariner - 8C 6G1-316712 & Up
-
№АртикулНазвание
-
11484-9309M BRACKET, CLAMP (PORT)BRACKET, CLAMP (PORT)
-
21484-9310M BRACKET, CLAMP (STARBOARD)BRACKET, CLAMP (STARBOARD)
-
312-80638M PAD, TRANSOM CLAMPPAD, TRANSOM CLAMP
-
410-81755M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
591784M HANDLE, TRANSOM CLAMPHANDLE, TRANSOM CLAMP
-
617-852812 PINPIN
-
784835M SHAFT, STOPPERSHAFT, STOPPER
-
895650M KNOB, STOPPERKNOB, STOPPER
-
917-82148M PIN, SPRINGPIN, SPRING
-
1010-11530M BOLTBOLT
-
1111531M PIECE, FRICTIONPIECE, FRICTION
-
1212-82217M WASHERWASHER
-
1311-84295M NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1423-94568M COLLARCOLLAR
-
1510-11532M BOLTBOLT
-
1612-82214M WASHERWASHER
-
1711-82389M NUTNUT
-
181485-9311M BRACKET, SWIVELBRACKET, SWIVEL
-
1922-82369M FITTING, GREASEFITTING, GREASE
-
2081439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
2111533M PLATE, FRICTIONPLATE, FRICTION
-
2224-83488M SPRING, COMPRESSIONSPRING, COMPRESSION
-
2312-82217M WASHERWASHER
-
2426-11534M SEALSEAL
-
2510-11535M SCREW, FRICTION PIECESCREW, FRICTION PIECE
-
2615437M BRACKET, STEERINGBRACKET, STEERING
-
2711537M COVER, UPPER MOUNTCOVER, UPPER MOUNT
-
2811538M MOUNT, UPPER SIDEMOUNT, UPPER SIDE
-
2911539M MOUNT, UPPER FRONTMOUNT, UPPER FRONT
-
3010-91788M BOLTBOLT
-
3125-11540M GROMMETGROMMET
-
3212-11541M WASHER, THRUSTWASHER, THRUST
-
3323-11542M BUSHING, PIVOT SHAFTBUSHING, PIVOT SHAFT
-
3423-11543M BUSHING, PIVOT SHAFTBUSHING, PIVOT SHAFT
-
3525-11544M O-RINGO-RING
-
3611545M HOUSING, LOWER MOUNTHOUSING, LOWER MOUNT
-
3711546M HOUSING, LOWER MOUNTHOUSING, LOWER MOUNT
-
3811547M MOUNT, LOWER SIDEMOUNT, LOWER SIDE
-
3911548M MOUNT, LOWER SIDEMOUNT, LOWER SIDE
-
4010-91788M BOLTBOLT
