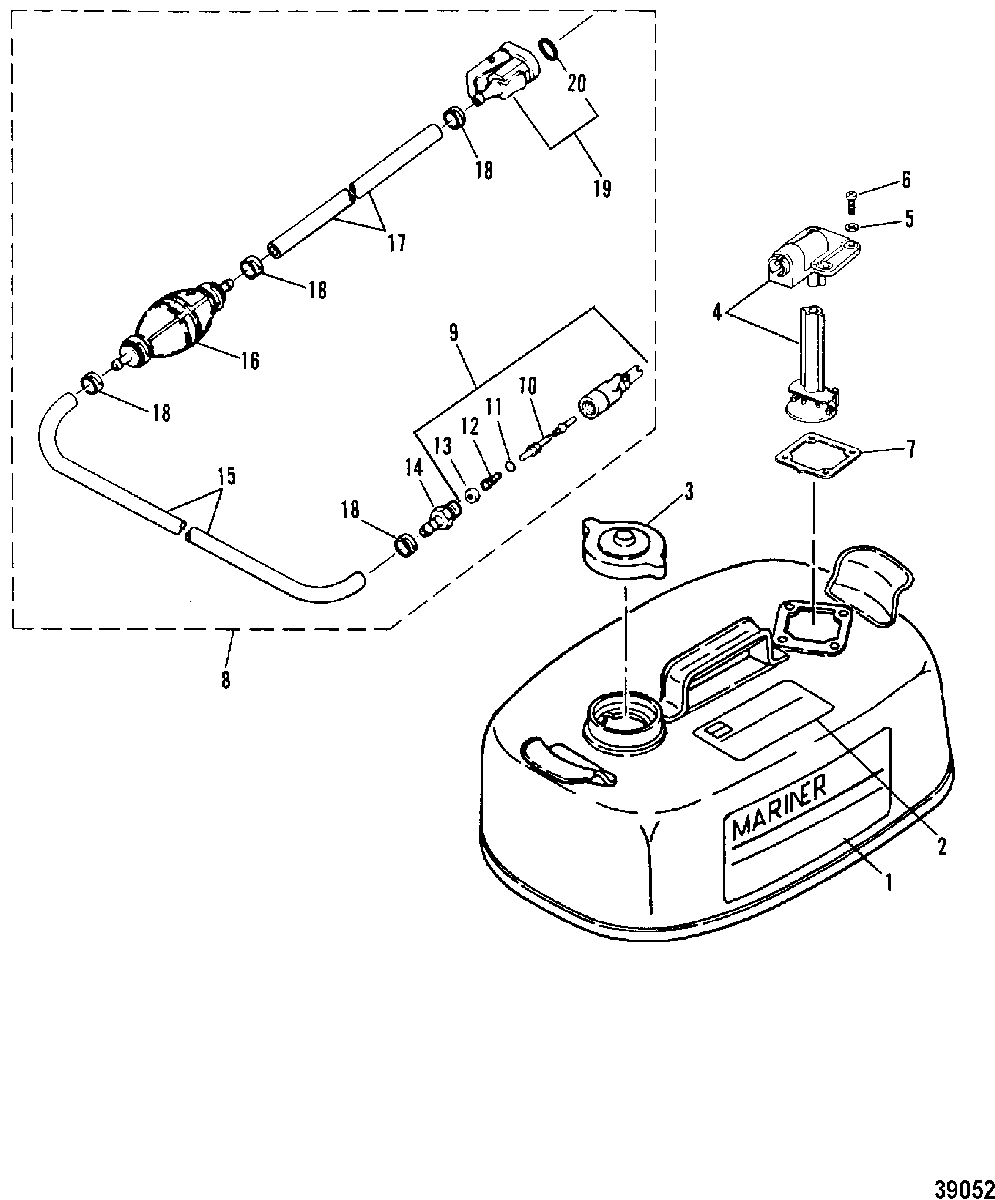

FUEL TANK AND FUEL LINE(ORIGINAL)(12 LITRE) для Mariner - 8C 6G1-316712 & Up

  • №
    Артикул
    Название
  • 1
    37-95488M DECAL, SIDE
    DECAL, SIDE
  • 2
    37-95489M DECAL, TOP
    DECAL, TOP
  • 3
    36-18962M CAP ASSEMBLY, Fuel Tank
    CAP ASSEMBLY, Fuel Tank
  • 4
    83584M HOUSING ASSEMBLY, FUEL CONNECTOR
    HOUSING ASSEMBLY, FUEL CONNECTOR
  • 5
    12-95501M SEAL
    SEAL
  • 6
    10-95502M SCREW
    SCREW
  • 7
    27-81320M GASKET, HOUSING ASS'Y
    GASKET, HOUSING ASS'Y
  • 8
    32-16721M LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 9
    30185Q3 BAYONET ASSEMBLY, Fuel
    BAYONET ASSEMBLY, Fuel
  • 10
    30185Q3 STEM, BAYONET BODY
    STEM, BAYONET BODY
  • 11
    25-16524 O-RING, BAYONET BODY STEM
    O-RING, BAYONET BODY STEM
  • 12
    24-30189 SPRING, BAYONET BODY ASS'Y
    SPRING, BAYONET BODY ASS'Y
  • 13
    30188 WASHER, CAP
    WASHER, CAP
  • 14
    22-63187 FITTING, Barb (.250-18), FUEL LINE
    FITTING, Barb (.250-18), FUEL LINE
  • 15
    32-94727M HOSE, FUEL TANK T PRIMER BULB
    HOSE, FUEL TANK T PRIMER BULB
  • 16
    89396Q01 PRIMER BULB
    PRIMER BULB
  • 17
    32-94727M HOSE
    HOSE
  • 18
    54-16725M CLAMP, HOSE
    CLAMP, HOSE
  • 19
    22-14213Q CONNECTOR, Fuel, ENGINE FUEL CONNECTOR
    CONNECTOR, Fuel, ENGINE FUEL CONNECTOR
  • 20
    25-82789M O-RING, ENGINE FUEL CONNECTOR HOUSING
    O-RING, ENGINE FUEL CONNECTOR HOUSING
