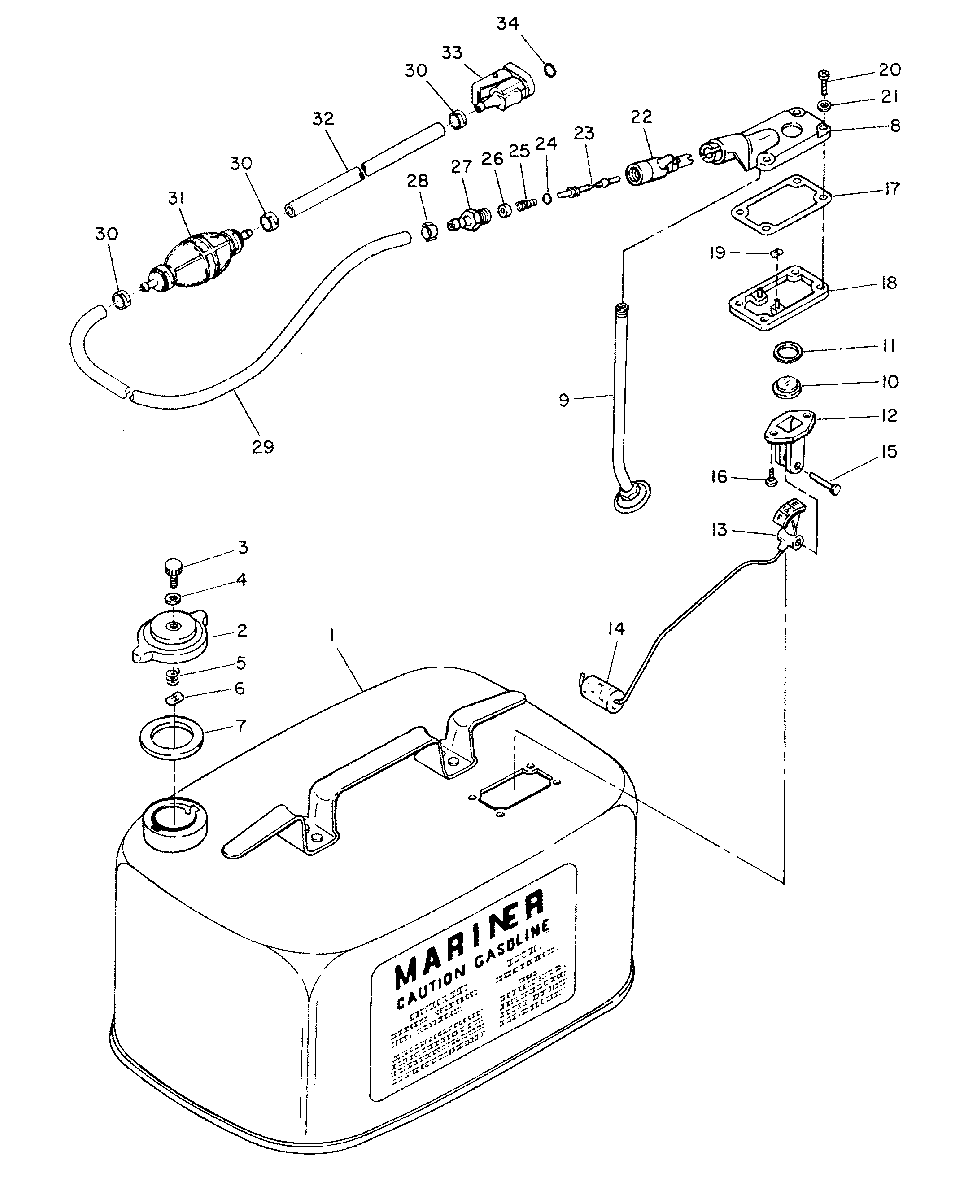

FUEL TANK (U.S.A.) для Mariner - 8A 682-000551 THRU 007650 (M)
-
№АртикулНазвание
-
0-11259-812410A1 FUEL TANK COMPLETE...FUEL TANK COMPLETE...
-
11259-812410A1 FUEL TANK, (6 GALLON)...FUEL TANK, (6 GALLON)...
-
236-18962M FILLER CAP ASSEMBLY...FILLER CAP ASSEMBLY...
-
310-25575 SCREW, VENT - FILLER CAP...SCREW, VENT - FILLER CAP...
-
412-49221 WASHER, VENT SCREW...WASHER, VENT SCREW...
-
524-22227 SPRING, TENSION - VENT SCREW...SPRING, TENSION - VENT SCREW...
-
611-28587 NUT, SPEED- SPRING RETAINER...NUT, SPEED- SPRING RETAINER...
-
727-41065 GASKET, FILLER CAP TO FUEL TANK...GASKET, FILLER CAP TO FUEL TANK...
-
817792A1 COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)...COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)...
-
932-75239 TUBE ASS'Y, (1/4-18 CONNECTOR - 1/2" TUBE)... (#32-75239)TUBE ASS'Y, (1/4-18 CONNECTOR - 1/2" TUBE)... (#32-75239)
-
1098542A1 LENS ASSEMBLY, FUEL GAUGE...LENS ASSEMBLY, FUEL GAUGE...
-
1198542A1 GASKET, FUEL GAUGE LENS...GASKET, FUEL GAUGE LENS...
-
1220430 RETAINER, FUEL GAUGE...RETAINER, FUEL GAUGE...
-
1328897A1 INDICATOR AND FLOAT ASSEMBLY...INDICATOR AND FLOAT ASSEMBLY...
-
1499274 FLOAT, FUEL GAUGE...FLOAT, FUEL GAUGE...
-
1517-20426 RIVET, INDICATOR TO RETAINER...RIVET, INDICATOR TO RETAINER...
-
1610-62568 SCREW, RETAINER TO FUEL TANK COVER (5/16")SCREW, RETAINER TO FUEL TANK COVER (5/16")
-
1727-28862 GASKET, COVER ASSEMBLY TO FRAME...GASKET, COVER ASSEMBLY TO FRAME...
-
1828860 FRAME, RETAINING - FUEL TANK COVER...FRAME, RETAINING - FUEL TANK COVER...
-
1911-28903 FASTENER, RETAINING FRAME TO FUEL TANK...FASTENER, RETAINING FRAME TO FUEL TANK...
-
2010-20411 SCREW, FUEL TANK COVER TO FUEL TANK...SCREW, FUEL TANK COVER TO FUEL TANK...
-
2112-29070 WASHER, FUEL TANK COVER FASTENING SCREW...WASHER, FUEL TANK COVER FASTENING SCREW...
-
2230185Q3 BODY, BAYONET ASS'Y...BODY, BAYONET ASS'Y...
-
2330185Q3 STEM, BAYONET BODY...STEM, BAYONET BODY...
-
2425-16524 O-RING, BAYONET BODY STEM...O-RING, BAYONET BODY STEM...
-
2524-30189 SPRING, BAYONET BODY STEM...SPRING, BAYONET BODY STEM...
-
2630188 WASHER, CAP BAYONET BODY SPRING...WASHER, CAP BAYONET BODY SPRING...
-
2722-63187 FITTING, FUEL LINE (TANK END)...FITTING, FUEL LINE (TANK END)...
-
2854-55206 CLAMP, HOSE TO BAYONET BODY ASS'Y...CLAMP, HOSE TO BAYONET BODY ASS'Y...
-
2932-94727M HOSE, FUEL TANK TO PRIMER BULB...HOSE, FUEL TANK TO PRIMER BULB...
-
3054-16725M CLAMP, HOSE...CLAMP, HOSE...
-
3189396Q01 PRIMER BULB, FUEL LINE...PRIMER BULB, FUEL LINE...
-
3232-94727M HOSE, PRIMER BULB TO FUEL CONNECTOR...HOSE, PRIMER BULB TO FUEL CONNECTOR...
-
3322-14213Q HOUSING ASS'Y, FUEL CONNECTOR...HOUSING ASS'Y, FUEL CONNECTOR...
-
3425-82789M O-RING...O-RING...
