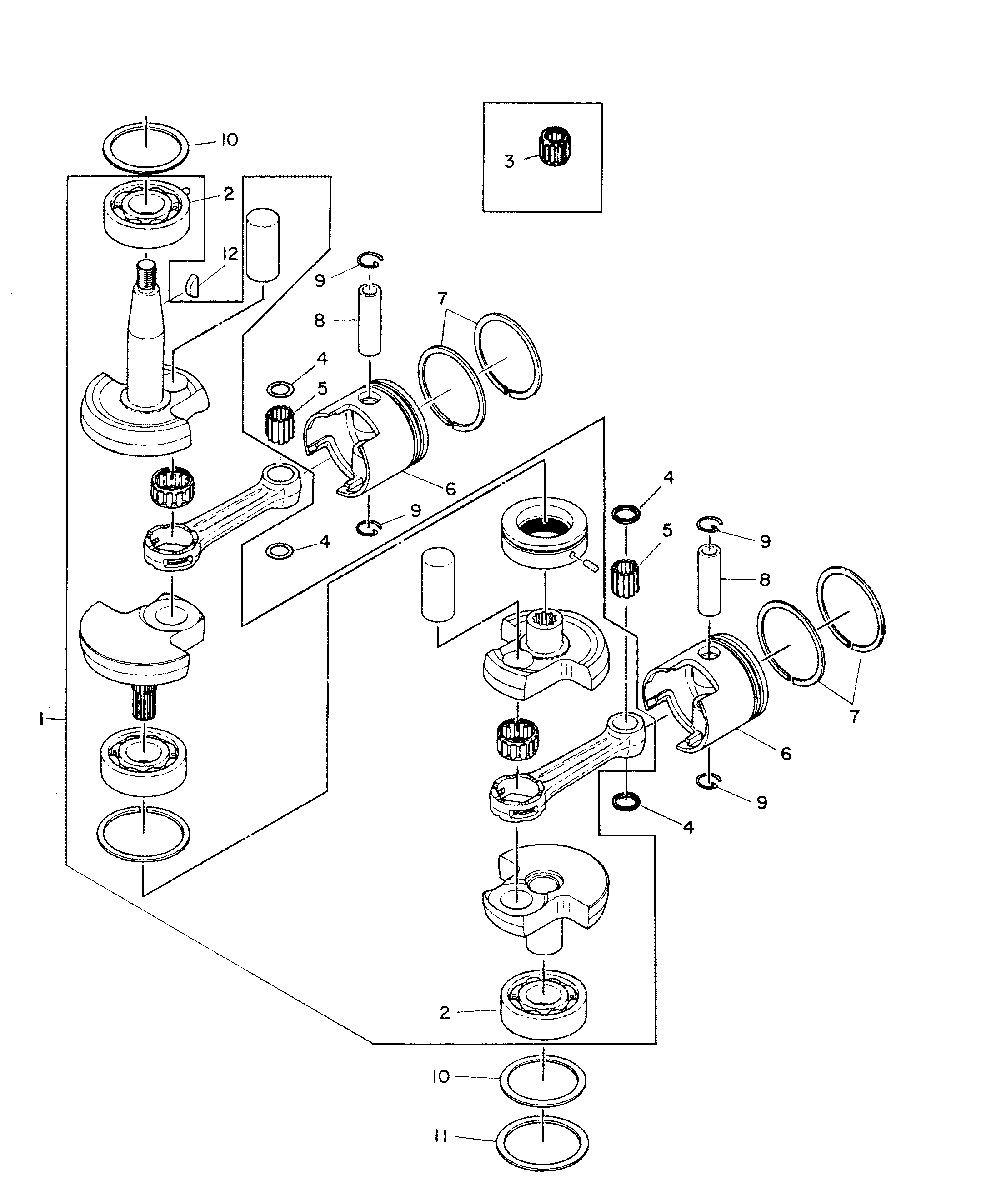

CRANKSHAFT AND PISTON для Mariner - 8A 682-000551 THRU 007650 (M)

  • №
    Артикул
    Название
  • 1
    463-6776M CRANK SHAFT ASS'Y...
    CRANK SHAFT ASS'Y...
  • 2
    30-18859T BEARING...
    BEARING...
  • 3
    31-82835M BEARING, CONNECTING ROD-SMALL END... .
    SERIAL 00000000-00020160
    BEARING, CONNECTING ROD-SMALL END... .
    SERIAL 00000000-00020160
  • 4
    12-81816M WASHER...
    SERIAL 00020161-09999999
    WASHER...
    SERIAL 00020161-09999999
  • 5
    29-82350M BEARING, NEEDLE... .
    SERIAL 00020161-09999999
    BEARING, NEEDLE... .
    SERIAL 00020161-09999999
  • 6
    761-6936M PISTON (50.96MM) (STD)...
    PISTON (50.96MM) (STD)...
  • 6
    761-6743M PISTON (50.97 MM) (STD)...
    PISTON (50.97 MM) (STD)...
  • 6
    761-6743M PISTON (50.98MM) (STD)...
    PISTON (50.98MM) (STD)...
  • 6
    761-6746M PISTON (1ST O.S. 51.25MM)...
    PISTON (1ST O.S. 51.25MM)...
  • 6
    761-6747M PISTON (2ND O.S. 51.50MM)...
    PISTON (2ND O.S. 51.50MM)...
  • 7
    39-80422T PISTON RING SET (STD)...
    PISTON RING SET (STD)...
  • 7
    39-80423T PISTON RING SET (1ST O.S. 51.25MM)...
    PISTON RING SET (1ST O.S. 51.25MM)...
  • 7
    39-80424M PISTON RING SET (2ND O.S. 51.50MM)
    PISTON RING SET (2ND O.S. 51.50MM)
  • 8
    41-80005M PIN, PISTON...
    PIN, PISTON...
  • 9
    53-82342M CLIP, PISTON PIN...
    CLIP, PISTON PIN...
  • 10
    15-80419M SHIM, CRANKSHAFT (0.2MM)...
    SHIM, CRANKSHAFT (0.2MM)...
  • 10
    15-80420M SHIM, CRANKSHAFT (0.3MM)...
    SHIM, CRANKSHAFT (0.3MM)...
  • 10
    15-80421M SHIM, CRANKSHAFT (0.5MM)...
    SHIM, CRANKSHAFT (0.5MM)...
  • 11
    23-81841M SPACER, LOWER BEARING...
    SPACER, LOWER BEARING...
  • 12
    28-893761 KEY,CRANKSHAFT TO FLYWHEEL...
    KEY,CRANKSHAFT TO FLYWHEEL...
