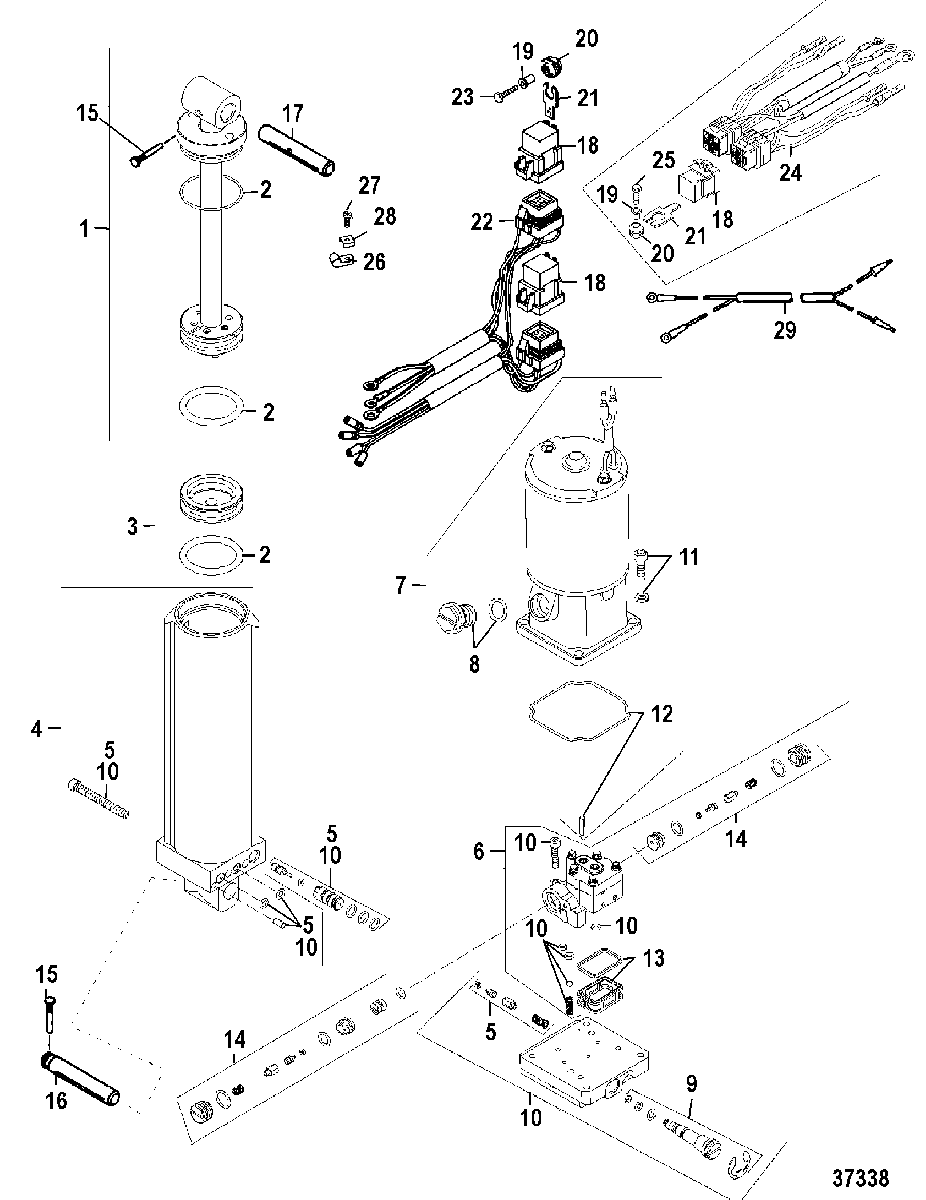

POWER TRIM(YELLOW FILL PLUG)(G359968/9934137 AND UP для Mariner - 80 JET 9793577 THRU 0P016999
-
№АртикулНазвание
-
-8M0090335 PUMP ASSEMBLY, Power TrimPUMP ASSEMBLY, Power Trim
-
18M0089942 SHOCK ROD KITSHOCK ROD KIT
-
225-893902A01 O-RING KIT, RebuildO-RING KIT, Rebuild
-
3810776A1 PISTON ASSEMBLY, MemoryPISTON ASSEMBLY, Memory
-
48M0055015 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
58M0090404 VALVE KIT, Trim LimitVALVE KIT, Trim Limit
-
68M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
7893907A02 MOTOR KITMOTOR KIT
-
822-8134351 PLUGPLUG
-
9893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
108M0055018 MANIFOLD KITMANIFOLD KIT
-
1110-809876A1 SCREW KIT (MOTOR)SCREW KIT (MOTOR)
-
12809877A1 DRIVESHAFT/SEAL KITDRIVESHAFT/SEAL KIT
-
1335-893912A02 FILTER KITFILTER KIT
-
14893913A02 POPPET KITPOPPET KIT
-
-25-8M0089947 O-RING KIT (COMPLETE TRIM)O-RING KIT (COMPLETE TRIM)
-
1517-821539 PIN, TrilobePIN, Trilobe
-
1617-818898 PIN, AnchorPIN, Anchor
-
1799625002 SHAFTSHAFT
-
18882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
1923-818968 BUSHINGBUSHING
-
2025-818967 GROMMETGROMMET
-
21828102 BRACKETBRACKET
-
2284-819514A4 HARNESS ASSEMBLY, Trim
SN# USA-0G359968/BEL-9934137 THRU USA-0G437999/BEL-9926999HARNESS ASSEMBLY, Trim
SN# USA-0G359968/BEL-9934137 THRU USA-0G437999/BEL-9926999 -
2310-40011109 SCREW, (M5 x 25) Stainless Steel
SN# USA-0G359968/BEL-9934137 THRU USA-0G437999/BEL-9926999SCREW, (M5 x 25) Stainless Steel
SN# USA-0G359968/BEL-9934137 THRU USA-0G437999/BEL-9926999 -
2484-819514A15 HARNESS ASSEMBLY, Trim
SN# USA-0G438000/BEL-9927000 & UpHARNESS ASSEMBLY, Trim
SN# USA-0G438000/BEL-9927000 & Up -
2510-82129125 SCREW, (M6 x 25 MM)
SN# USA-0G438000/BEL-9927000 & UpSCREW, (M6 x 25 MM)
SN# USA-0G438000/BEL-9927000 & Up -
2654-22740 CLIPCLIP
-
2710-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
288M0084613 C WASHERC WASHER
-
2984-17201A2 CABLE ASSEMBLY, (17.00 Inches)CABLE ASSEMBLY, (17.00 Inches)
