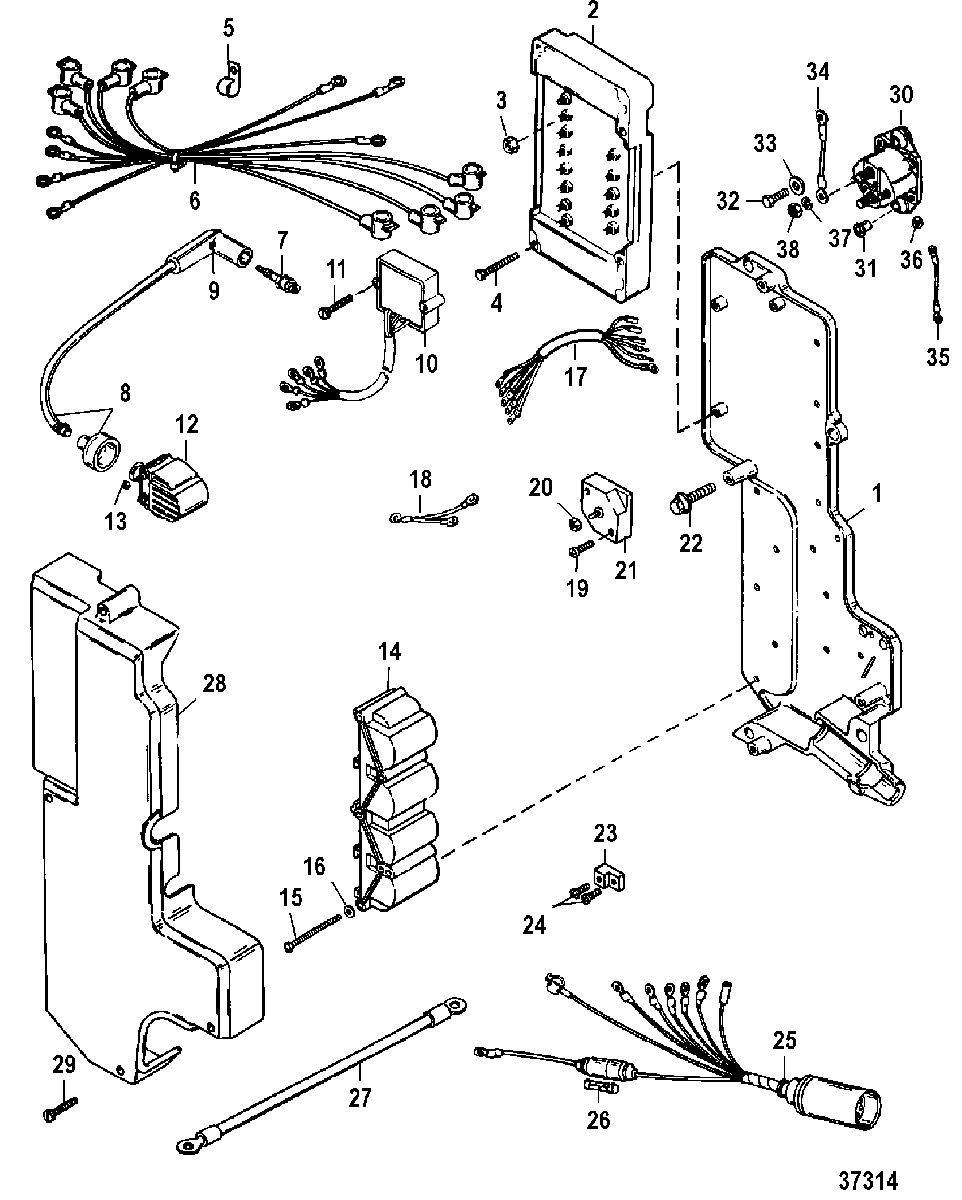

ELECTRICAL COMPONENTS, USA-0G437999/BEL-9926999 AND BELOW для Mariner - 80 JET 9793577 THRU 0P016999
-
№АртикулНазвание
-
-13541 PLUG, MalePLUG, Male
-
1443314 IGNITION PLATEIGNITION PLATE
-
2332-5772A7 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
410-40011110 SCREW, (M5 x 30) Stainless SteelSCREW, (M5 x 30) Stainless Steel
-
554-63153 J CLIPJ CLIP
-
684-43442A3 HARNESS ASSEMBLY, PrimaryHARNESS ASSEMBLY, Primary
-
733-816737Q SPARK PLUG (NGK #BP8H-N-10)SPARK PLUG (NGK #BP8H-N-10)
-
733-816837Q SPARK PLUG (CAN/BELGIUM NGK#BPZ8H-N-10)SPARK PLUG (CAN/BELGIUM NGK#BPZ8H-N-10)
-
884-813715A8 CABLE SET, Ignition
SN# USA-0G301750/BEL-9885504 & BelowCABLE SET, Ignition
SN# USA-0G301750/BEL-9885504 & Below -
884-821945A57 CABLE ASSEMBLY, Hi Tension
SN# USA-0G301751/BEL-9885505 THRU USA-0G437999/BEL-9926999CABLE ASSEMBLY, Hi Tension
SN# USA-0G301751/BEL-9885505 THRU USA-0G437999/BEL-9926999 -
985-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
108M0084173 REGULATOR, VoltageREGULATOR, Voltage
-
1110-4010635 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
12339-832757A4 COIL KITCOIL KIT
-
1311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1487554 COVERCOVER
-
1510-40007114 SCREW, (M5 x 50)SCREW, (M5 x 50)
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1784-821546A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1884-824912A3 CABLE ASSEMBLY (6-1/2 IN.)CABLE ASSEMBLY (6-1/2 IN.)
-
1884-824912A4 CABLE ASSEMBLY (4-3/4 IN.)CABLE ASSEMBLY (4-3/4 IN.)
-
1910-40007107 SCREW, (M5 x 16)
USE WHERE APPLICABLESCREW, (M5 x 16)
USE WHERE APPLICABLE -
2011-45076 NUT, (#10-32) Brass
USE WHERE APPLICABLENUT, (#10-32) Brass
USE WHERE APPLICABLE -
2117602T02 TERMINAL BLOCK
USE WHERE APPLICABLETERMINAL BLOCK
USE WHERE APPLICABLE -
2210-82155025 SCREW, (M8 x 25 MM) Stainless SteelSCREW, (M8 x 25 MM) Stainless Steel
-
2386-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2410-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2584-43443A9 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
2688-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2784-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2784-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
2813550T1 COVERCOVER
-
2910-40007114 SCREW, (M5 x 50)SCREW, (M5 x 50)
-
2910-40011110 SCREW, (M5 x 30) Stainless SteelSCREW, (M5 x 30) Stainless Steel
-
3089-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
3123-818968 BUSHINGBUSHING
-
3210-40011109 SCREW, (M5 x 25) Stainless SteelSCREW, (M5 x 25) Stainless Steel
-
3312-4002314 WASHERWASHER
-
3484-88807A6 CABLE ASSEMBLY, (3.50 Inches) BlackCABLE ASSEMBLY, (3.50 Inches) Black
-
3584-87379A34 WIRE, (4.25 Inch) Red (USE WHERE APPLICABLE)WIRE, (4.25 Inch) Red (USE WHERE APPLICABLE)
-
3584-79139A22 WIRE ASSEMBLY
(RED - 11-1/2 IN.)WIRE ASSEMBLY
(RED - 11-1/2 IN.) -
3611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
3713-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3811-68292 NUT, (.312-18)NUT, (.312-18)
